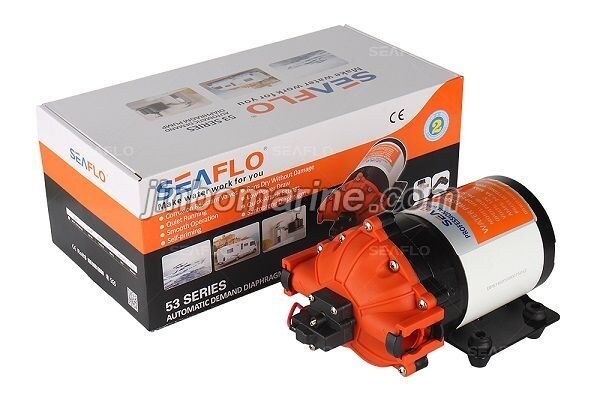

53 Series DC Diaphragm Pump
53 Series DC Diaphragm Pump General description: 12V/24V 15-26LPM 17-70PSI The 53-Series is our Heaviest-Duty water pump. It provides high volume water flo...
53 Series DC Diaphragm Pump
PDF Datasheet
We can supply according to your requirement.
53 Series DC Diaphragm Pump
General description:
12V/24V 15-26LPM 17-70PSI

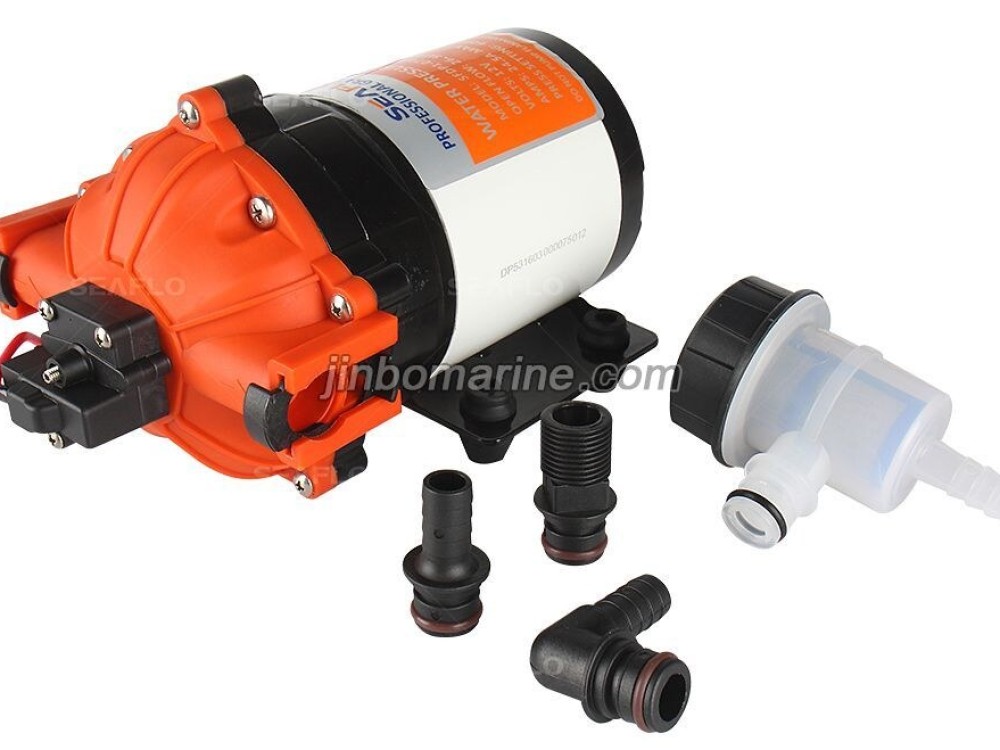

The 53-Series is our Heaviest-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. Quick Attach Fittings make installation or replacement easy. These models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! Due to its robust motor and heavy-duty construction, it's a popular choice for use with tough agricultural applications. It provides up to 7.0 gallons per minute! The 53-Series pumps are self-priming, and can run dry without damage, performance reliable. This automatic demand water pump has a built-in pressure switch, which automatically starts and stops and stops the pump when the faucet is opened and closed. They are easy to install, service and winterize.
Parameter pump and motor:
| PUMP | |
| Type | 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | QUICK ATTACH |
| Weight | 9.8 lbs (4.5 kg) |
| MOTOR | |
| Leads | 12 AWG, 9" (23cm) long with 2-Pin connector/Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 24.5 A |
| Fuse | 36.8 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow (GPM/LPM) | Control Type | Max Draw | Shut-off Pressure (PSI/BAR) | Valves | Diaphragm | Ports | Wire Connections |
| SFDP1-070-060-53 | 12V | 7.0 / 26.5 | Switch | 24.5A | 60 / 4.1 | EPDM | Santoprene | QUICK ATTACH | 2-Pin/Leads |
