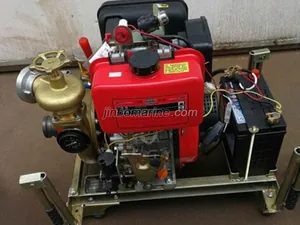

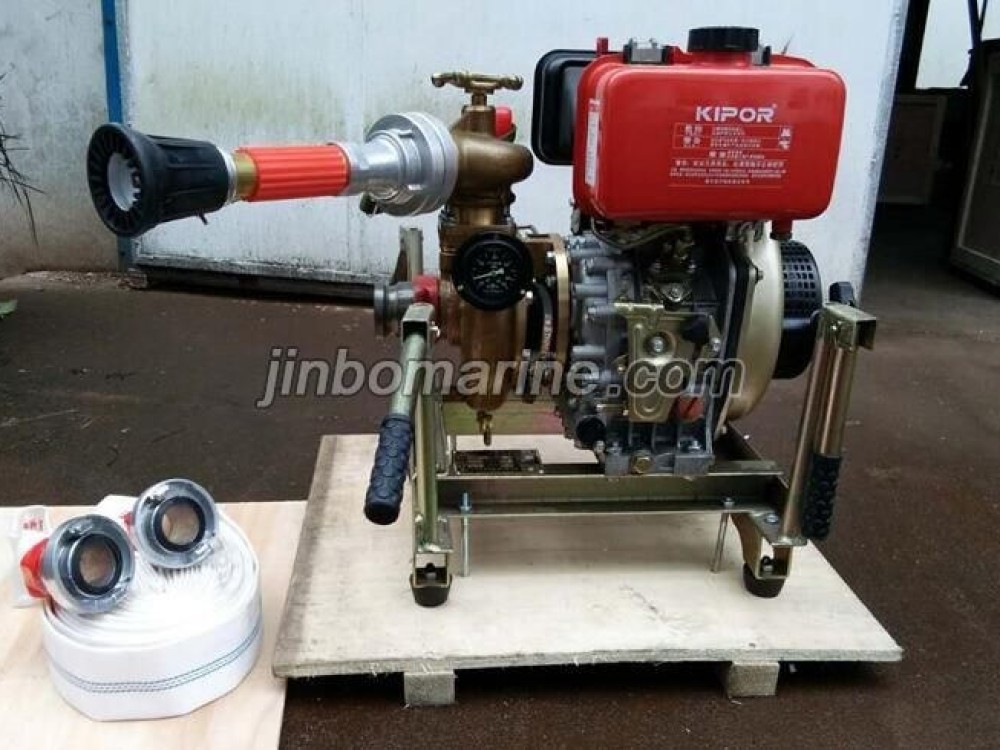

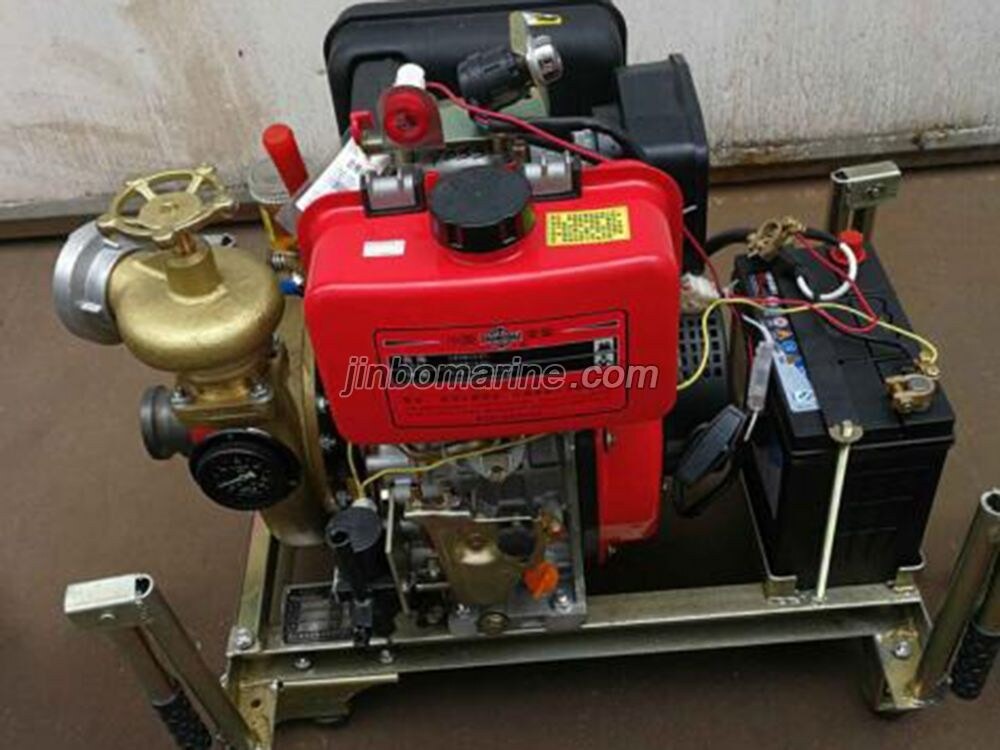

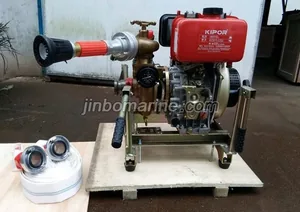

65CWY-40 Marine Diesel Engine-driven Emergency Fire Pump

CWY-type Marine diesel emergency fire pump is developed in accordance with relevant provisions of The Rules

and Regulations for the Construction of Sea-going Steal Ships- 2012, issued by China Classification Society (CCS),

and the International Convention on the Safety of Life at Sea. It is mainly applied in emergency fire protection for

vessels, and, additionally, in industrial and mining enterprises, ports and docks, warehouse or freight yard etc.

The pump integrates widely acclaimed features such as light weight, small size, flexibility in moving, rapid

starting, rapid discharge, large capacity of fuel tank, anti-corrosion, reliability and ease of maintenance etc. As two

types of pumps are available for sale, user should note his/her preference when making an order.

When the Diameter is between 50 to 65, The pump set may be started by manual or electrically started. The

diesel engine may be vertical, single-cylinder, 4-stroke and air cooled.

When the Diameter is between 80 to 100, The pump set may be started by spring starter or electrically started.

The diesel engine may be vertical, multi-cylinder, 4-stroke and water cooled. The outlet may be deployed as required

for air cooling.
