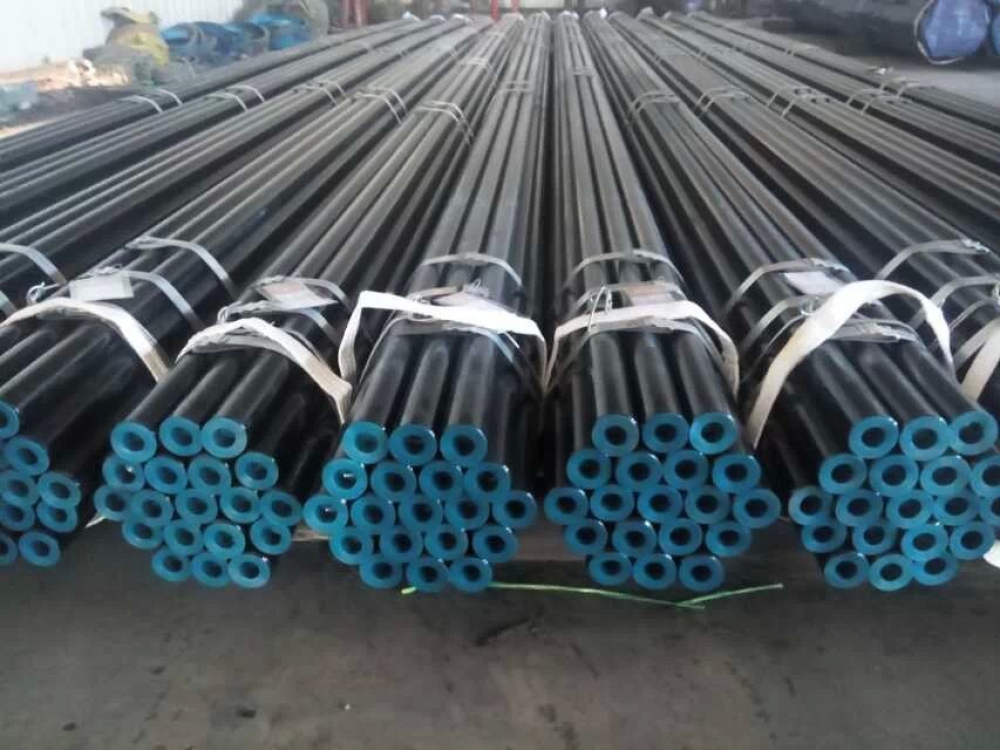

8 inch Black Steel Weld Pipe
- Category:Steel Pipe
- Material:Carbon steel
- Standards:ASME
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
Method of steel pipe:the North American method is called NPS ("Nominal Pipe Size") and is based on inches (also frequently referred to as NB ("Nominal Bore")).The European version is called DN ("Diametre Nominal" / "Nominal Diameter") and is based on millimetres. Designating the outside diameter allows pipes of the same size to be fit together no matter what the wall thickness.
Specification:
|
NOMINAL PIPE SIZE
|
OUTSIDE DIAMETER
|
|||
| A | B | ASME | JIS | DIN |
| 200 | 8" | 219.1 | 216.3 | 219.1 |
|
NOMINAL WALL THICKNESS
|
||||
| JIS(1) | DIN(2) | SCH10 | SCH20 | SCH30 |
| 5.8 | 6.3 | 3.76 | 6.35 | 7.04 |
| STD | SCH40 | SCH60 | XS | SCH80 |
| 8.18 | 8.18 | 10.31 | 12.7 | 12.7 |
| SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
