AE-60N Marine Multi-Purpose Machine
AE-60N Marine Multi-Purpose Machine 1. The planetary movement of the agitator, so that the food can be fully mixed 2. It adopts mechanical speed change, has multi-level speed, and is ...
Loading product images...
AE-60N Marine Multi-Purpose Machine
PDF Datasheet
We can supply according to your requirement.
AE-60N Marine Multi-Purpose Machine
1. The planetary movement of the agitator, so that the food can be fully mixed
2. It adopts mechanical speed change, has multi-level speed, and is equipped with three types of agitators: snake-shaped, beat-shaped, and flower-bud
3. Stainless steel mixing barrel
4. A safety net cover is set on the mixing barrel
5. The base form is suitable for installation and fixing on ships

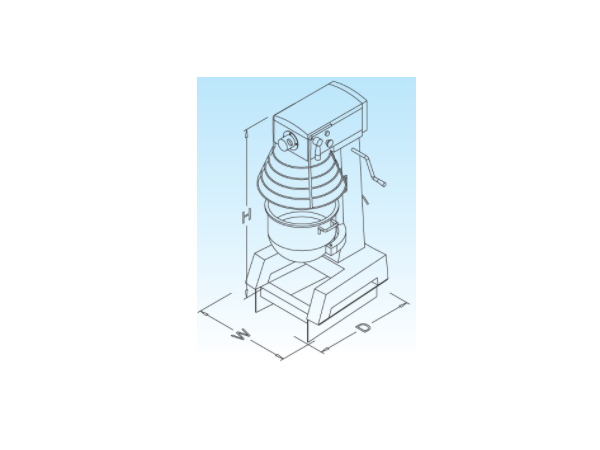

AE-60N Marine Multi-Purpose Machine Drawing
AE-60N Marine Multi-Purpose Machine Parameters
| Model | K7 | AE-20N | AE-30N | AE-40N | AE-60N |
| Volume(L) | 7 | 20 | 30 | 40 | 60 |
| Voltage | 220v-1PH-50Hz | 220V-1PH-50Hz 380/415V-3PH-50Hz 440/480V/3PH-60Hz | 380/415V-3PH-50Hz | 440/480V/3PH-60Hz | |
| Power(kw) | 0.37 | 1.1 | 1 | 1.5 | 3 |
| Size(mm) | 460X290X470 | 560X600X780 | 625X610X945 | 570X615X1130 | 700X1050X1445 |
| Weight(kg) | 29 | 100 | 180 | 180 | 410 |
