AIS-SART Transponder
AIS-SART Transponder (1).Product Overview: AIS Search and rescue transponder based-on AIS technology, modular design, low power consumption, small size, light weight,H...
Loading product images...
PDF Datasheet

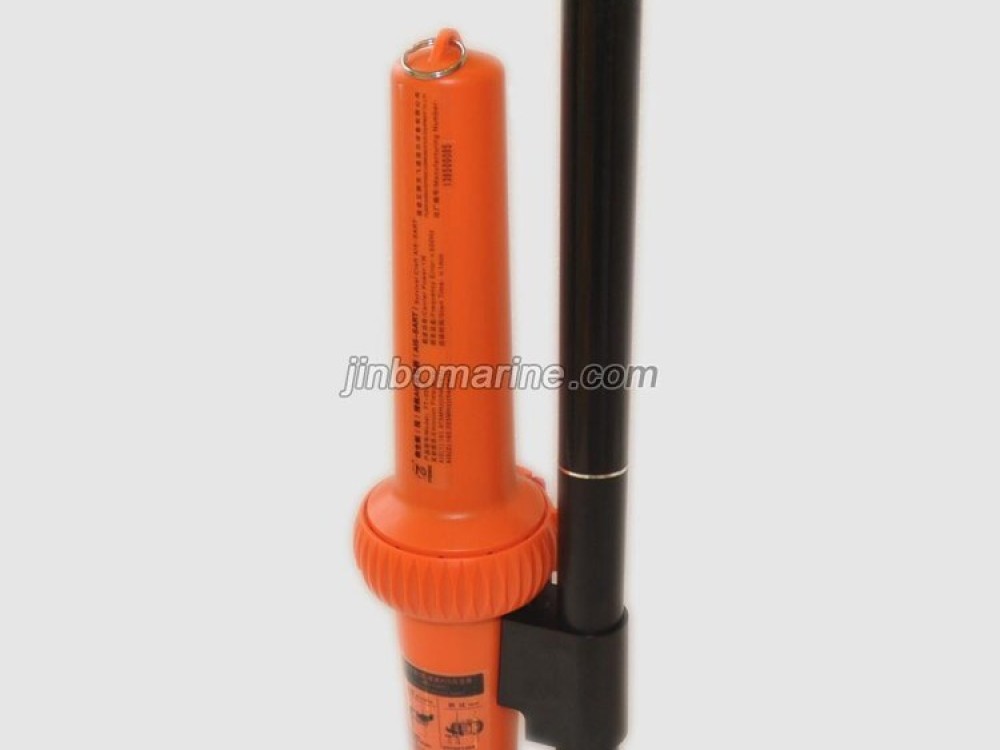

AIS-SART Transponder
(1).Product Overview:
AIS Search and rescue transponder based-on AIS technology, modular design, low power consumption, small size,
light weight,High reliability, is a new generation of marine safety and rescue equipment.
China Classification Society CCS (certificate number: FZ12T00007)
Register of fishing vessel of P.R.C. (certificate number: C00001300008).
(2).Function and take advantage :
When vessel distress occur, AIS-SART transponder sends the location information to other ship which
equipped with AIS equipment , save crew life in distress, thereby greatly enhancing the chances of survival.
Technical feature :
Utilized GMSK modulation, embedded processing platform, time division multiple access technology.
Technical Specifications:
Operating frequency: 161.975 MHz, 162.025 MHz
Frequency tolerance: ± 0.5KHz
Transmit power: ≥ 31.5dBm
Modulation spectrum:
Deviation from the carrier center frequency ± 10 kHz modulation sidebands with ≤ -20 dBc;
Deviation from the carrier center frequency +25 kHz to +62.5 kHz and -25 kHz to -62.5 kHz the device modulation
sidebands with ≤ -40 dBc
Modulation mode: GMSK / FM
Operating Temperature: -20 ℃ ~~ +55 ° C
Application areas: marine safety, search and rescue system.
Dimensions (mm) : Ø120 (MAX) L365
Weight (kg) : approx. 900g
Accessories:
floating 10 meter rope .
Mounting rod;
Mounting bracket;
Not less than 1 meter rod.
Note: Specifications are subject to change without notice
