Admiralty Anchor

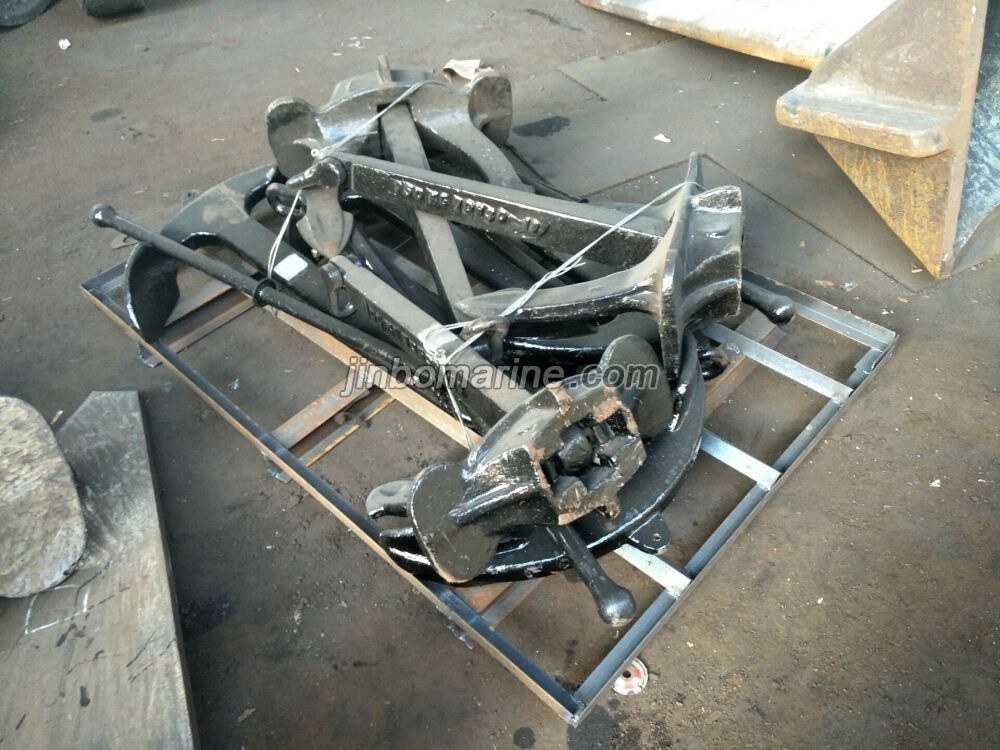

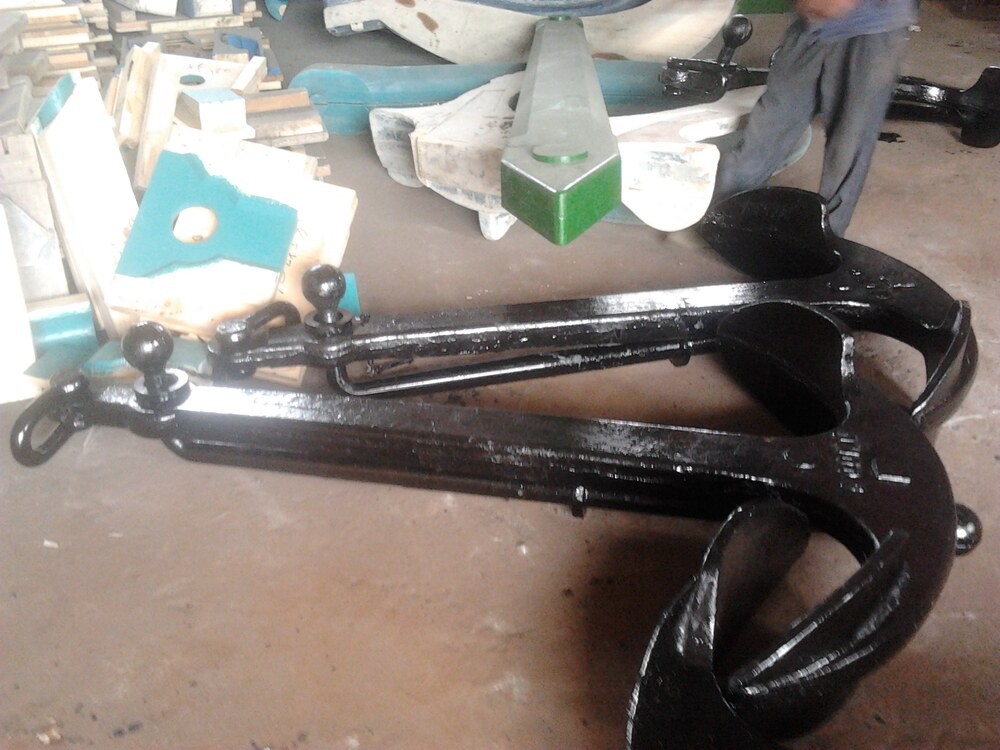

Admiralty Anchor is two arms on one end of shank, stock is on the other hand of shank, which is ninety degrees to the arms. The weight is from 50KGS to 10000KGS.
PDF Datasheet
China Admiralty Anchor:
Admiralty Anchor
Admiralty Anchor is two arms on one end of shank, stock is on the other hand of shank, which is ninety degrees to the arms. The weight is from 50KGS to 10000KGS.
If you have special requirement, please contact us.
Technical Specification:
Material: Casting Steel
Weight: 60KGS-2500KGS
Classification: LR, ABS, DNV, GL, BV, NK, KR, IRS and CCS Certificate.
Dimension Table:
| Nominal Weight (KG) | Size(mm) | ||||
| H | h | h1 | B | C | |
| 50 | 960 | 230 | 42 | 635 | 185 |
| 75 | 1105 | 266 | 45 | 710 | 210 |
| 100 | 1215 | 296 | 49 | 780 | 230 |
| 125 | 1310 | 316 | 52 | 840 | 245 |
| 150 | 1395 | 336 | 55 | 900 | 265 |
| 200 | 1535 | 370 | 61 | 990 | 290 |
| 250 | 1650 | 398 | 65 | 1065 | 310 |
| 300 | 1755 | 423 | 70 | 1105 | 330 |
| 400 | 1930 | 465 | 77 | 1240 | 365 |
| 500 | 2080 | 502 | 84 | 1335 | 390 |
| 600 | 2210 | 533 | 89 | 1440 | 415 |
| 700 | 2330 | 560 | 93 | 1500 | 440 |
| 800 | 2435 | 587 | 97 | 1570 | 460 |
| 900 | 2530 | 610 | 101 | 1630 | 475 |
| 1000 | 2620 | 611 | 104 | 1685 | 495 |
| 1250 | 2825 | 680 | 112 | 1810 | 535 |
| 1500 | 3000 | 725 | 118 | 1955 | 565 |
| 2000 | 3300 | 797 | 131 | 2140 | 625 |
| 2500 | 3550 | 857 | 138 | 2270 | 672 |
| 3000 | 3780 | 912 | 150 | 2415 | 715 |
| 3500 | 3980 | 960 | 158 | 2540 | 750 |
| 4000 | 4160 | 1000 | 155 | 2650 | 785 |
| 5000 | 4480 | 1100 | 184 | 2830 | 800 |
| 6000 | 4740 | 1113 | 190 | 3000 | 438 |
| 7000 | 5025 | 1180 | 200 | 3165 | 960 |
| 8000 | 5240 | 1280 | 210 | 3300 | 980 |
| 9000 | 5450 | 1330 | 220 | 3440 | 990 |
| 10000 | 5680 | 1340 | 230 | 3600 | 1085 |
Remarks:
The Specification or Size may not meet your request, if you don't find the information your need, please send your request by email or inquiry form below, we will check and revert with you shortly, thanks for your attention.
