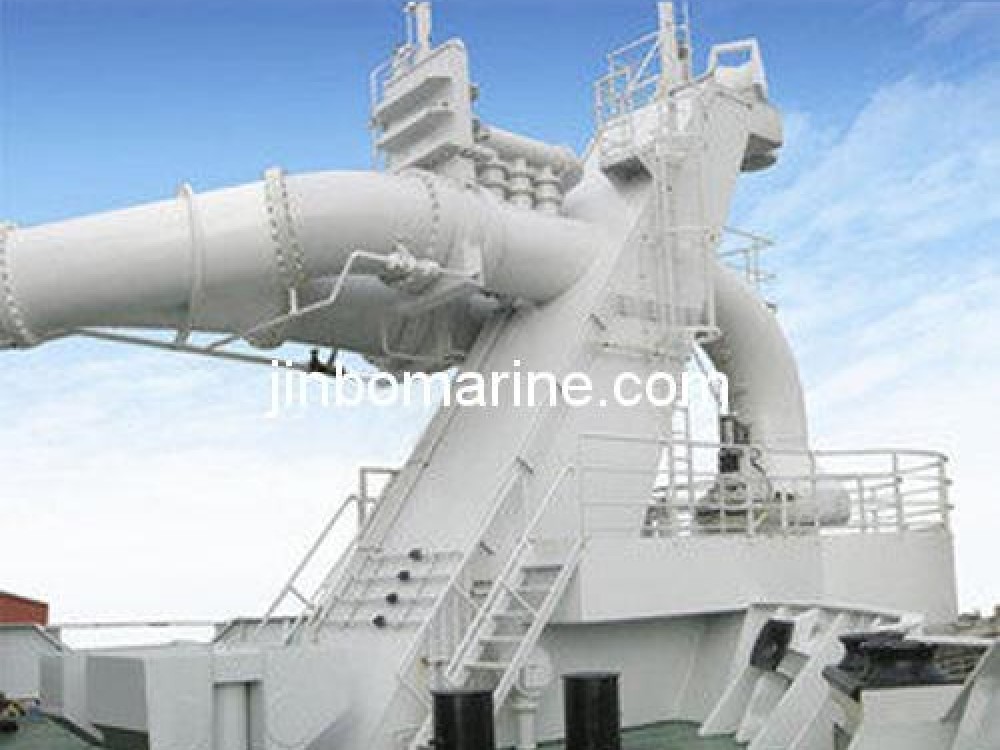

Shore to shore valve (Bow blowing device)
General description

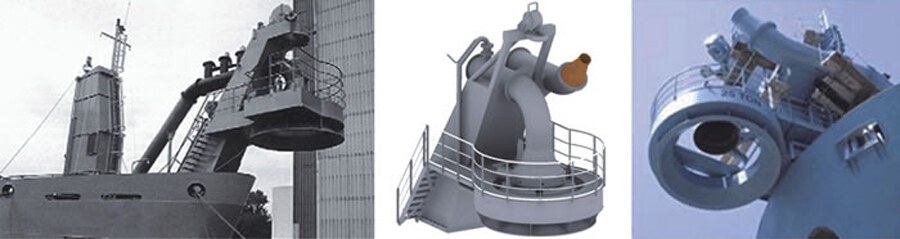

Bow blowing device is mainly used for deck pipeline and the shore pipe connection, main part is welded of high strength ship plate. Equipped with a hydraulic quick connection device, when in use winch and quick spherical joint connect to pipeline on the other side of the river or dumping through Rainbow nozzle directly.
Technical parameter(reference only)
| Inner diam(mm) | A(mm) | B(mm) | C(mm) | D(mm) | Weight(kg) | Pull Capacity(Kn) |
| 500 | 3500 | 4800 | 3100 | 1350 | 8000 | 125 |
| 600 | 3500 | 4800 | 3100 | 1350 | 11000 | 150 |
| 700 | 4700 | 6900 | 3600 | 1500 | 18000 | 250 |
| 800 | 5000 | 7400 | 3800 | 1700 | 20000 | 300 |
| 900 | 5000 | 8000 | 4000 | 1800 | 22000 | 300 |
| 1000 | 6000 | 8500 | 4400 | 2000 | 24000 | 400 |
