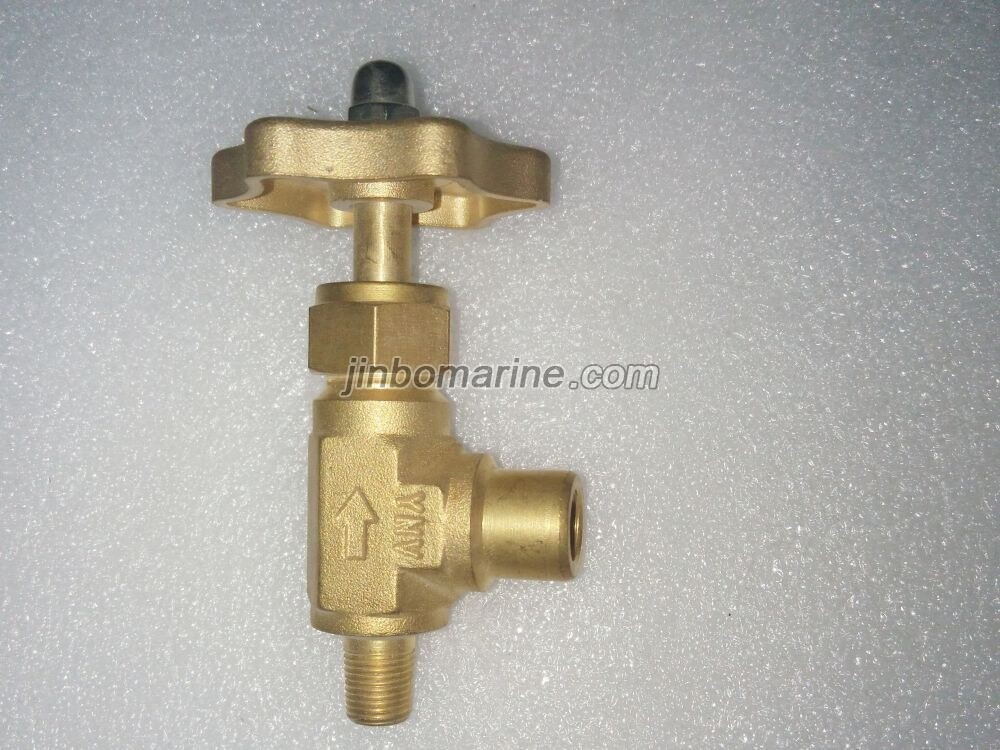

Brass Needle Angle Valve with Male & Female Ends
Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass material except for the gland O" rings. ...
Brass Needle Angle Valve with Male & Female Ends
We can supply according to your requirement.
China Brass Needle Angle Valve with Male & Female Ends:
Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass material except for the gland O" rings.
Technical Specification:
1. Applicable temperature will be -20℃ to 100℃
2. Max Pressure: 5.88Mpa (60kgf/cm2) at 80℃

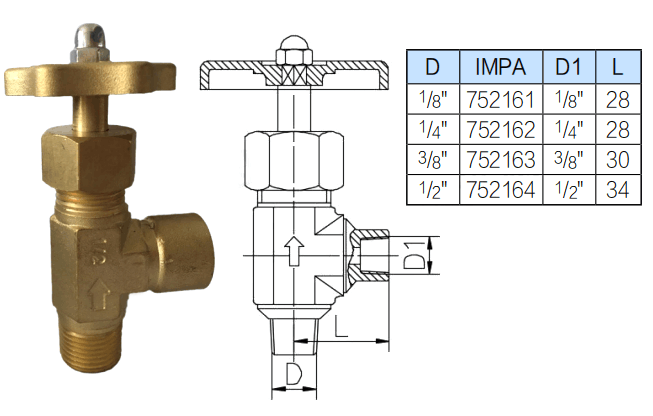

Main Size:
| IMPA | Nominal Size | Thread | Length | Height | |
| D | D1 | ||||
| 752161 | 1/8 x 1/8 | PT-1/8 | PT-1/8 | 20 | 56 |
| 752162 | 1/4 x 1/4 | PT-1/4 | PT-1/4 | 25 | 64 |
| 752163 | 3/8 x 3/8 | PT-3/8 | PT-3/8 | 30 | 75 |
| 752164 | 1/2 x 1/2 | PT-1/2 | PT-1/2 | 38 | 97 |
