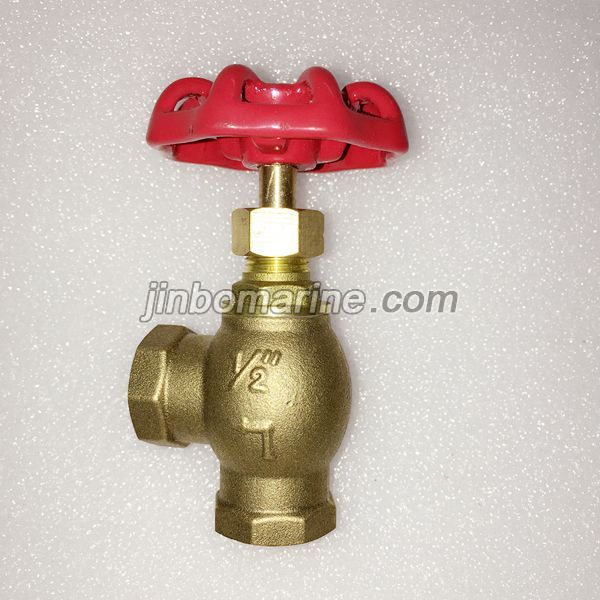

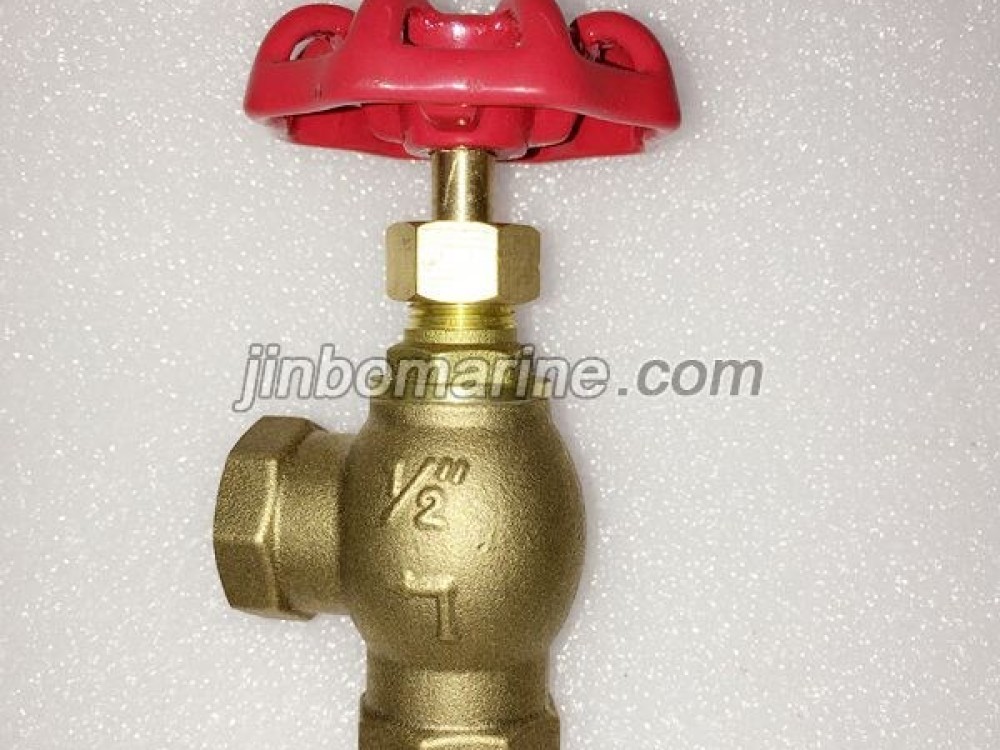

Bronze BSP Female Threaded Angle Globe Valve
PDF Datasheet
We can supply according to your requirement.
China Bronze BSP Female Threaded Angle Globe Valve:
Bronze Globe Valve with threaded bonnet, metal seated, stragiht and angle pattern. BSP female threaded connection, inside srewed stem and rising handwheel.
Specification:
Application: water, oil, air, and gas
Max Pressure； 16Bar
Main Parts & Material:
1. Body---Bronze
2. Bonnet--Brass
3. Disc---Brass
4.Stem---Brass

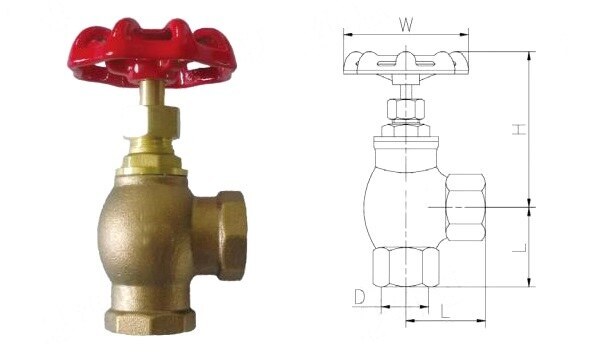

Main Size:
| IMPA CODE | DN | L | H | W |
| 755111 | 1/4" | 28 | 85 | 50 |
| 755112 | 3/8" | 28 | 85 | 50 |
| 755113 | 1/2" | 32 | 95 | 60 |
| 755114 | 3/4" | 40 | 115 | 70 |
| 755115 | 1" | 46 | 120 | 70 |
| 755116 | 1-1/4" | 51 | 135 | 70 |
| 755117 | 1-1/2" | 58 | 140 | 80 |
| 755118 | 2" | 61 | 165 | 110 |
