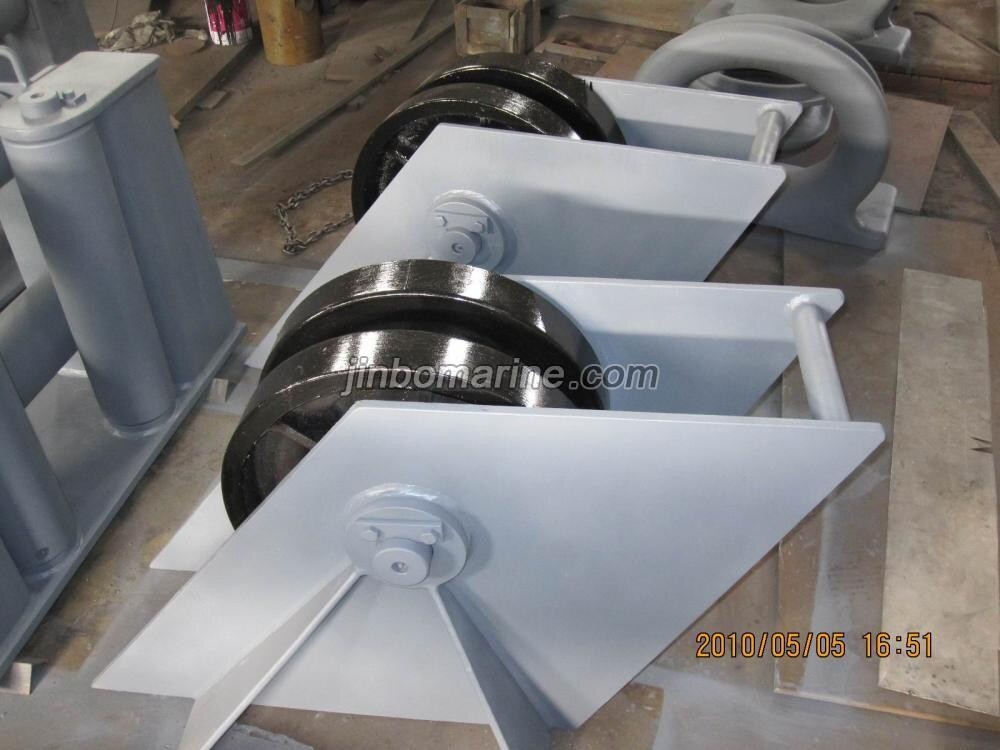

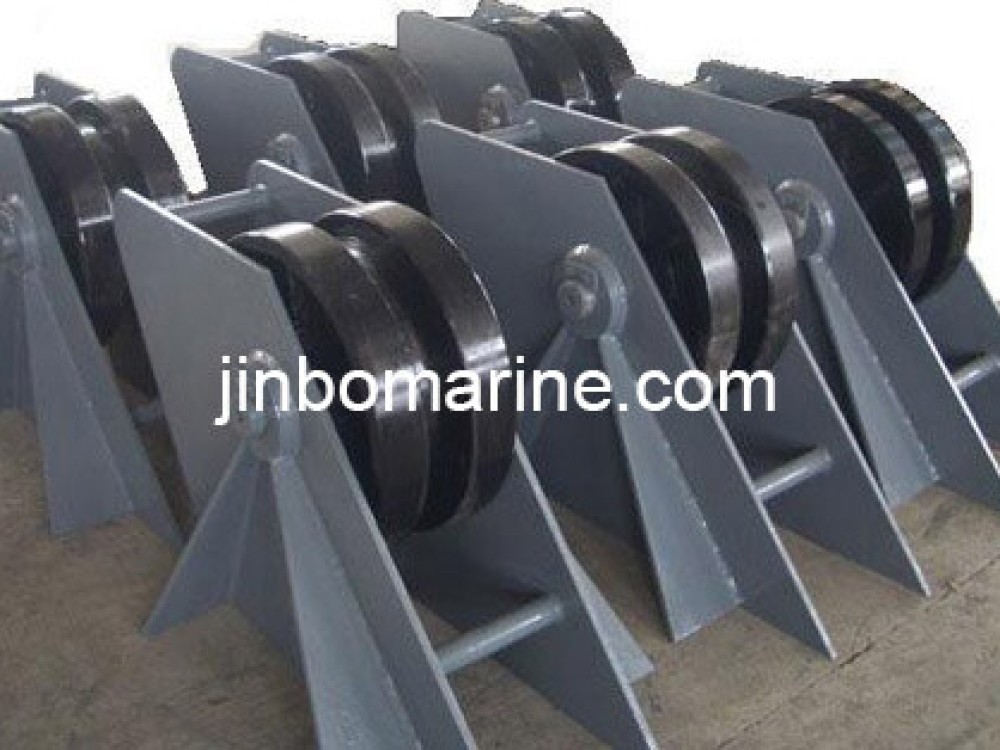

CB290-95 Chain Wheel For Hawse Pipe
It also named as hawse pipe chain wheel,chain wheel hawse pipe, roller fairlead for chain cable or chain cable fairlead. 1.Material: Cast Steel, Cast Iron. 2.Finish: Epoxy Coatin...
Loading product images...
CB290-95 Chain Wheel For Hawse Pipe
PDF Datasheet
We can supply according to your requirement.
China CB290-95 Chain Wheel For Hawse Pipe:
It also named as hawse pipe chain wheel,chain wheel hawse pipe, roller fairlead for chain cable or chain cable fairlead.
1.Material: Cast Steel, Cast Iron.
2.Finish: Epoxy Coating.
3.BV, GL, CCS Cert.
We supply various type of warping roller: JIS warping roller,VIS38 warping roller,DIN81906 warping roller, warping roller type EU, warping roller type G,NS2585 warping roller ,double warping roller with plate, three warping roller with plate and more.

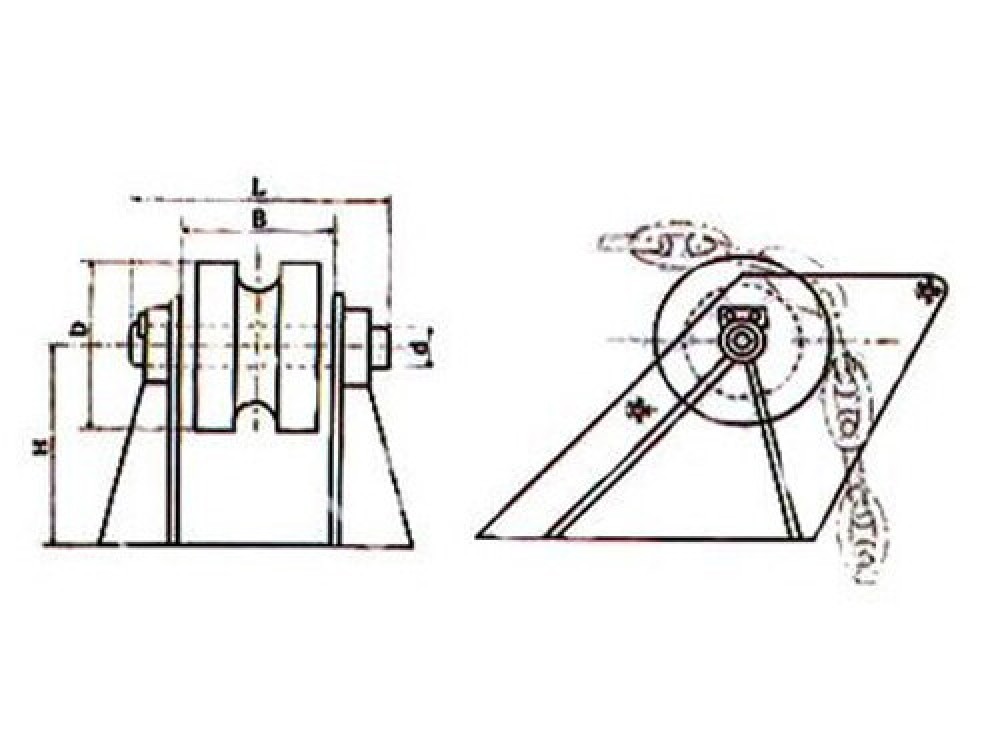

| CB290-95 Chain Wheel for Hawse Pipe | ||||||||
| Prduct No. | Diameter of | D | d | L | B | H | K | Weight |
| Cable(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | ||
| CW9-001 | 12.5-14 | 154 | 26 | 164 | 94 | 150 | 4 | 12.7 |
| CW9-002 | 16-17.5 | 192 | 32 | 186 | 108 | 170 | 5 | 21 |
| CW9-003 | 19-20.5 | 226 | 38 | 208 | 122 | 210 | 32.6 | |
| CW9-004 | 22-24 | 264 | 42 | 236 | 142 | 240 | 6 | 50 |
| CW9-005 | 26-28 | 308 | 48 | 262 | 160 | 280 | 74 | |
| CW9-006 | 30-32 | 352 | 54 | 292 | 178 | 310 | 7 | 104 |
| CW9-007 | 34-36 | 396 | 58 | 319 | 201 | 360 | 144.4 | |
| CW9-008 | 38-40 | 440 | 64 | 349 | 219 | 390 | 8 | 189.8 |
| CW9-009 | 42-44 | 484 | 70 | 377 | 239 | 430 | 239.9 | |
| CW9-010 | 46-48 | 528 | 74 | 405 | 259 | 470 | 9 | 305.5 |
| CW9-011 | 50-52 | 572 | 78 | 430 | 280 | 510 | 370.3 | |
| CW9-012 | 54-56 | 616 | 82 | 466 | 302 | 540 | 10 | 453.6 |
| CW9-013 | 58-60 | 660 | 88 | 492 | 320 | 580 | 11 | 572.3 |
| CW9-014 | 62-64 | 704 | 94 | 526 | 342 | 620 | 12 | 687.5 |
| CW9-015 | 66-68 | 748 | 98 | 552 | 360 | 660 | 13 | 832.3 |
