CB788 2Ton Springless Towing Hook
CB788 2Ton Springless Towing Hook is used for quick release mooring rope, manual operation in emergency situation and suitable for replace the mooring bollard. Springless Towin...
Loading product images...
CB788 2Ton Springless Towing Hook
PDF Datasheet
We can supply according to your requirement.
China CB788 2Ton Springless Towing Hook:
CB788 2Ton Springless Towing Hook is used for quick release mooring rope, manual operation in emergency situation and suitable for replace the mooring bollard.

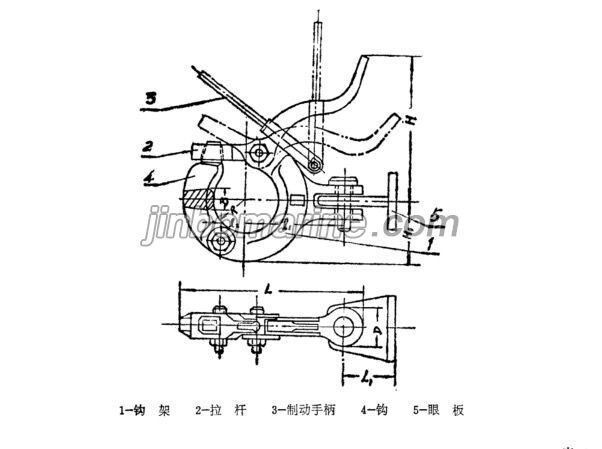

Springless Towing Hook Size CB788-74
| WLL (T) | H | H1 | L1 | L | l1 | l2 | B | D | R | Weight(kg) |
| 1 | 255 | 105 | 80 | 305 | 165 | 45 | 30 | 50 | 65 | 9.18 |
| 2 | 268 | 110 | 80 | 328 | 175 | 50 | 35 | 62 | 70 | 15.04 |
| 3 | 282 | 130 | 80 | 362 | 200 | 51 | 40 | 72 | 75 | 23.48 |
| 4 | 315 | 146 | 95 | 402 | 225 | 53 | 44 | 84 | 78 | 32.07 |
