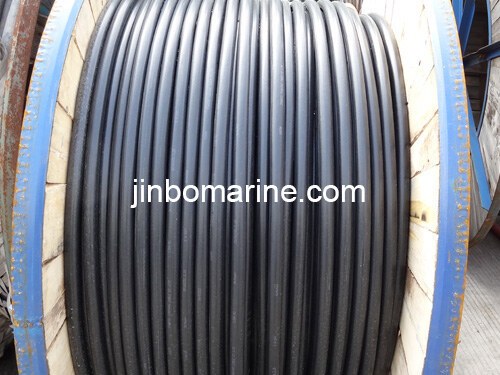

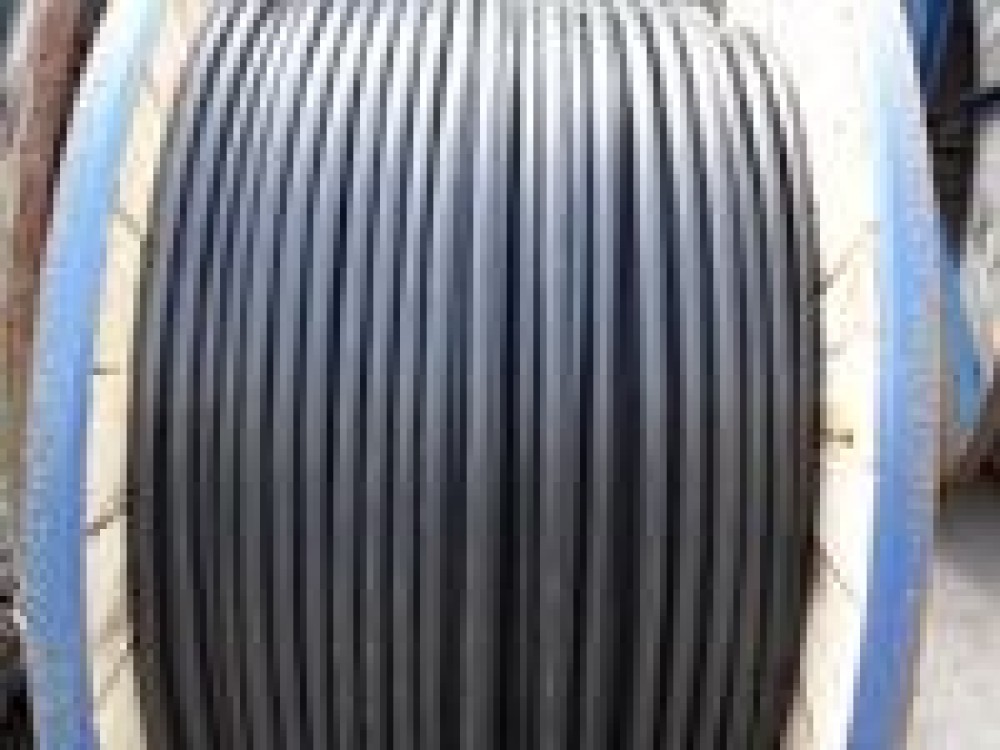

CE86/SC Flame Retardant Marine Power & Lighting Cable 0/6/1KV(Armoured)
CE86/SC Cable is Flame Retardant and Tinned Copper Wire Braided Marine Power and Control Cable, 0/6/1KV Cable Construction Conductor: Tinned Copper....
CE86/SC Flame Retardant Marine Power & Lighting Cable 0/6/1KV(Armoured)
PDF Datasheet
We can supply according to your requirement.
China CE86/SC Flame Retardant Marine Power & Lighting Cable 0/6/1KV(Armoured):
CE86/SC Cable is Flame Retardant and Tinned Copper Wire Braided Marine Power and Control Cable, 0/6/1KV
Cable Construction
Conductor: Tinned Copper. IEC 60228 Class 2
Insulation : EPR Insulation
Inner Covering: None
Armour : None
Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)
Standards
Design : IEC 60092-350, 353
Insulation Material : IEC 60092 -351
Sheath Material : IEC 60092-359
Flammability: IEC 60332-1 & IEC 60332-3 Category A
Halogen--free: IEC60754-1, IEC60754-2
Smoke Emission: IEC 61034-1, IEC61034-2
Cores & Size
Cores: 1, 2,3,4,5,7,10,12,14,16,19,24,37
Size (sqmm): 1.5, 2.5. 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 180, 240, 300
Feature
Halogen-free, Low Smoke, Flame retardant
Application:
The cable is fixed installation, used for power, lighting and control in most area and open deck area in ship.
