CPJ Series Marine Water Jet Pump
CPJ series ejector has an especial structure,so that it has higher efficiency and Longer service life. This ejector can be used in draining system of navel or civil ships. It can also be use...
Loading product images...
CPJ Series Marine Water Jet Pump
PDF Datasheet
We can supply according to your requirement.
China CPJ Series Marine Water Jet Pump:

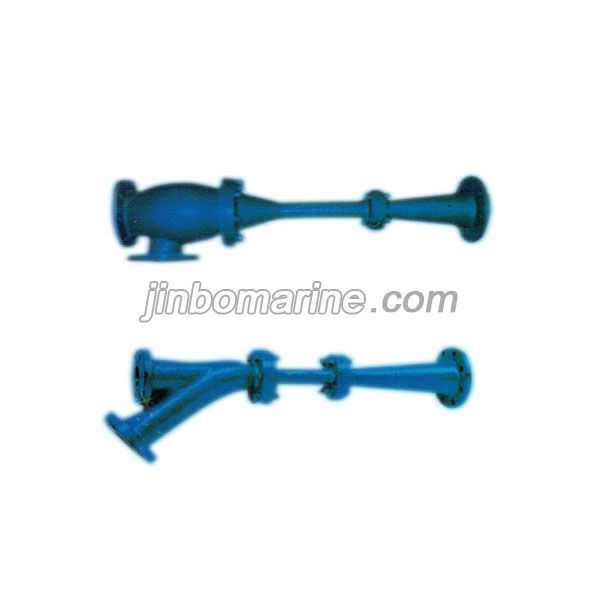

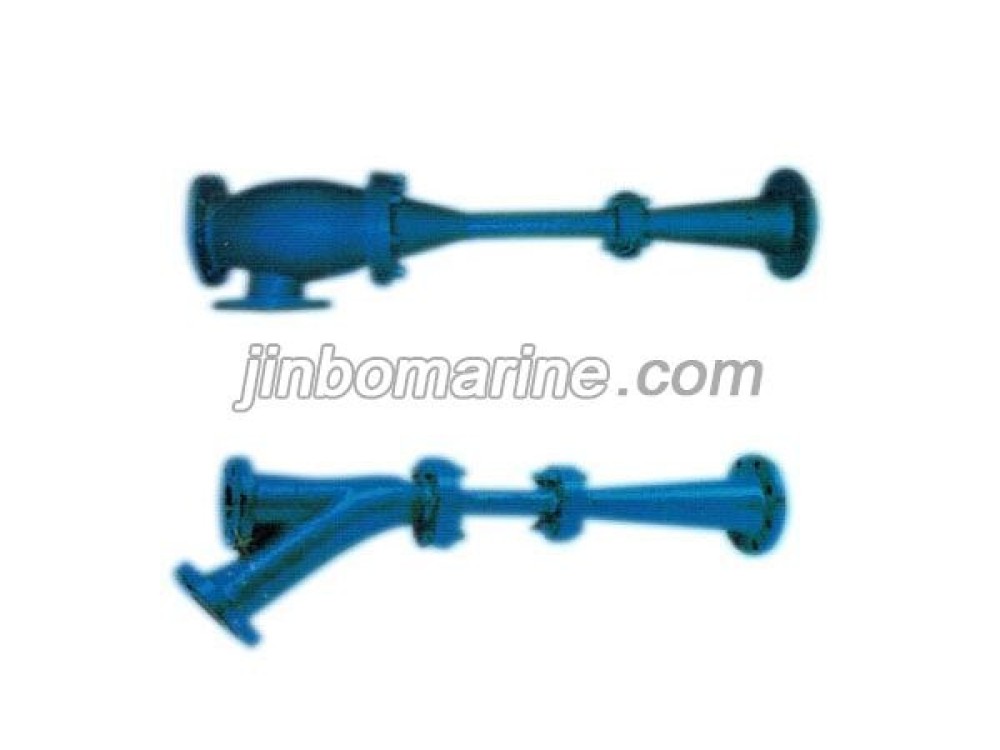

CPJ series ejector has an especial structure,so that it has higher efficiency and Longer service life. This ejector can be used in draining system of navel or civil ships. It can also be used in environmental protecting and chemical system, or irrigation works and building materials industry.
| Main Technical Data | ||||
| Model | Flow rate Q （m³/h） | Lift H (m) | Net srction hight (m) | Discharge pressure (Mpa) |
| CPJ40-50-60 | 0-15 | 0.4-1.4 | 3.0-9.0 | 0.05-0.3 |
| CPJ50-80-80 | 0-40 | 0.4-1.4 | 3.0-9.0 | 0.05-0.3 |
| CPJ80-100-100 | 0-70 | 0.4-1.4 | 3.0-9.0 | 0.05-0.3 |
| CPJ-100-125-125 | 0-100 | 0.4-1.4 | 3.0-9.0 | 0.05-0.3 |
| CPJ125-150-200 | 0-125 | 0.4-1.4 | 3.0-9.0 | 0.05-0.3 |
| CPJ150-200-200 | 0-180 | 0.4-1.4 | 3.0-9.0 | 0.05-0.3 |
| CPJ150-200-250 | 0-320 | 0.4-1.4 | 3.0-9.0 | 0.05-0.3 |
| CPJ200-200-250 | 0-420 | 0.1-0.6 | 1.0-7.0 | 0.05-0.1 |
| CPJ250-250-300 | 0-250 | 0.1-0.6 | 1.0-7.0 | 0.05-0.1 |
| CPJ300-300-350 | 0-400 | 0.1-0.6 | 1.0-7.0 | 0.05-0.1 |
| Alao have bigger pumps, pls contact us for more information. | ||||
