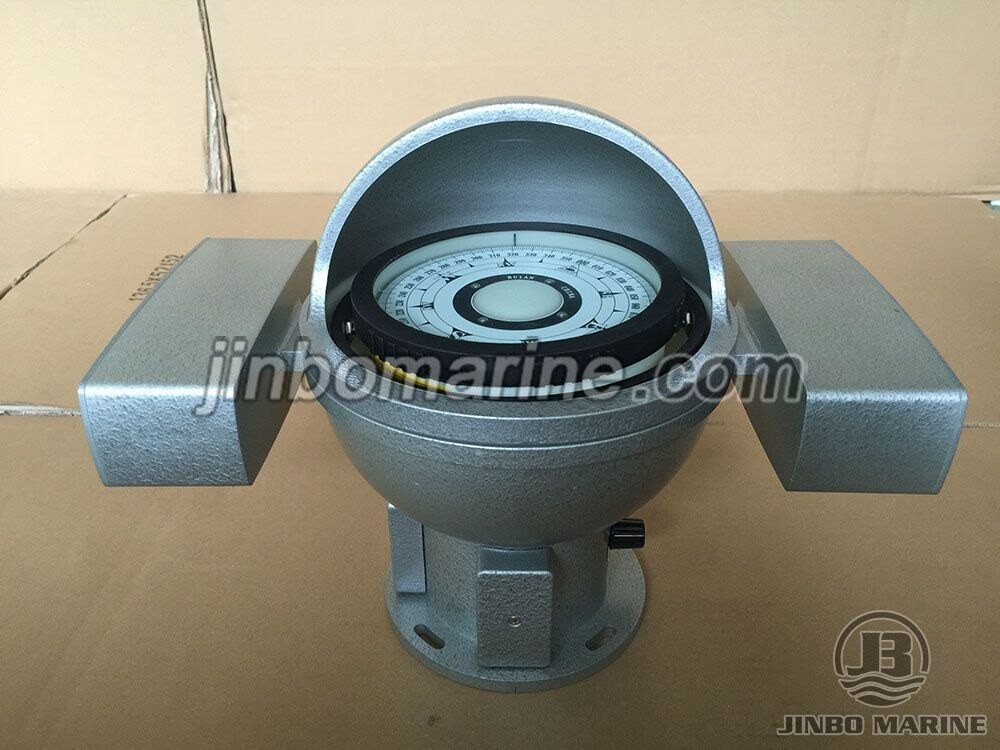

CPT-130D Magnetic Compass
CPT-130D Magnetic Compass is a sort of table model liquid magnetic compass . The compass is a magnetic compass class B and it is designed and manufactured in accordance with the national s...
CPT-130D Magnetic Compass
PDF Datasheet
We can supply according to your requirement.
China CPT-130D Magnetic Compass:
CPT-130D Magnetic Compass is a sort of table model liquid magnetic compass . The compass is a magnetic compass class B and it is designed and manufactured in accordance with the national standard GB/T 10104-1995 ( General Technical Terms of Marine Magnetic Compass Class B ) . The product has the advantages of simple structure、complete function、convenient correcting difference、accurate direction、stabilization and reliable .The magnetic compass is suitable for the steel motorized fishing boats and small steel vessels acting as steering compass.
Components:
Magnetic compass:1pc
Calibrating equipment(fitting case):1 set
Main semicircle self heterodyne adjusting magnetic bar 6pcs
Quadrant self heterodyne adjusting pure iron sheet 10pcs
Inclining self heterodyne adjusting magnetic bar 2pcs
Main technical parameters:
| Dial diameter | 130mm |
| Dial graduation | 0°~360°1°for each grid |
| Using temperature | -20℃~50℃ |
| Indicating deviation(H=35μT,T=20±3℃) | ≤1.5° |
| Half period(H=35μT,T=20±3℃) | ≥5.59S |
| Friction deviation(H=35μT,T=20±3℃) | 0.26° |
| Main semicircle self heterodyne correcting energy | 1°~40° |
| Quadrant self heterodyne correcting energy | 1°~5° |
| Inclining self heterodyne correcting energy | -75~+75μT |
| Lighting power supply | AC220V,DC24V |
| Outline Dimension | 330x200x270mm |
| Diameter of mounting holes | Pitchrow 118 Aperture Φ6.5 |
| Weight | 3kg. |
