CW-3A Electronic Thermometer
Product description CW-3A electronic thermometer The instrument is used to measure the temperature of oil, water and other media. The warning color ring of scale mark is divided ...
CW-3A Electronic Thermometer
PDF Datasheet
We can supply according to your requirement.
Product description

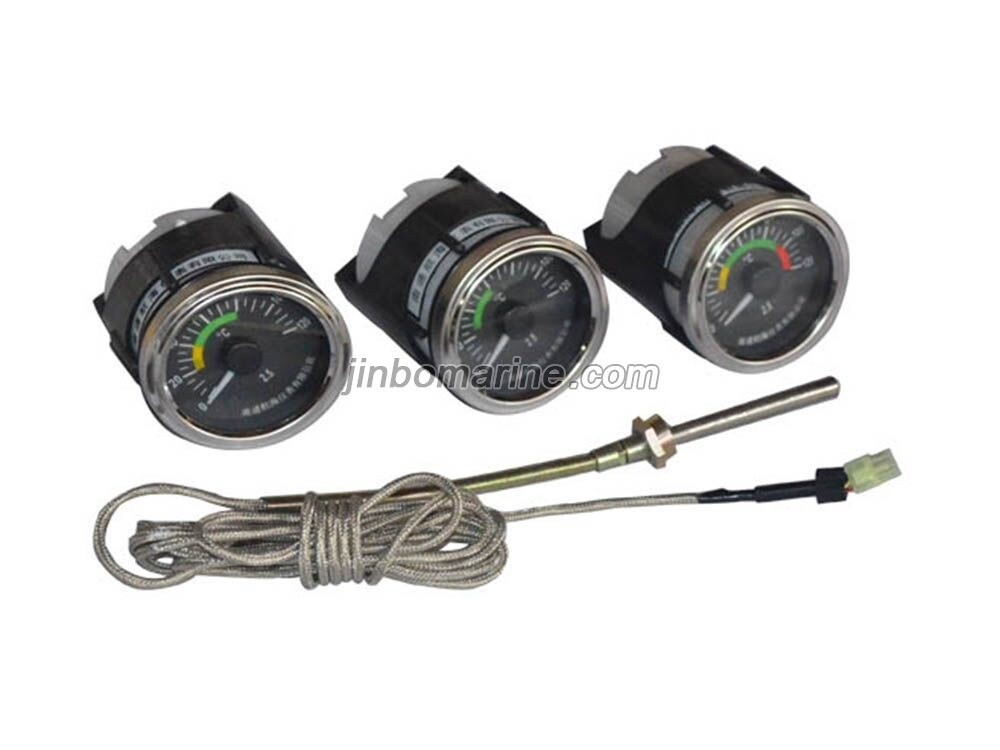

CW-3A electronic thermometer
The instrument is used to measure the temperature of oil, water and other media. The warning color ring of scale mark is divided into three kinds: one color, two color and three color.
technical parameter
1. Range: 0-120℃
2. Accuracy: 1.5
3. Applicable environment: temperature - 40℃- + 65℃
Humidity:≤98%
There is vibration and salt spray
4. Power supply: DC12V or DC24V
5. Installation: embedded installation, opening size￠61 + 0.5
The instrument is equipped with mounting clip, nut and other fasteners.
6. Composition: temperature sensor, temperature indicator, signal transmission cable.
Note: 1. The thread interface of the sensor is manufactured according to the user's requirements.
2. The length of signal transmission cable can be determined according to the user's requirements.
3. Warning color can be customized according to users.
