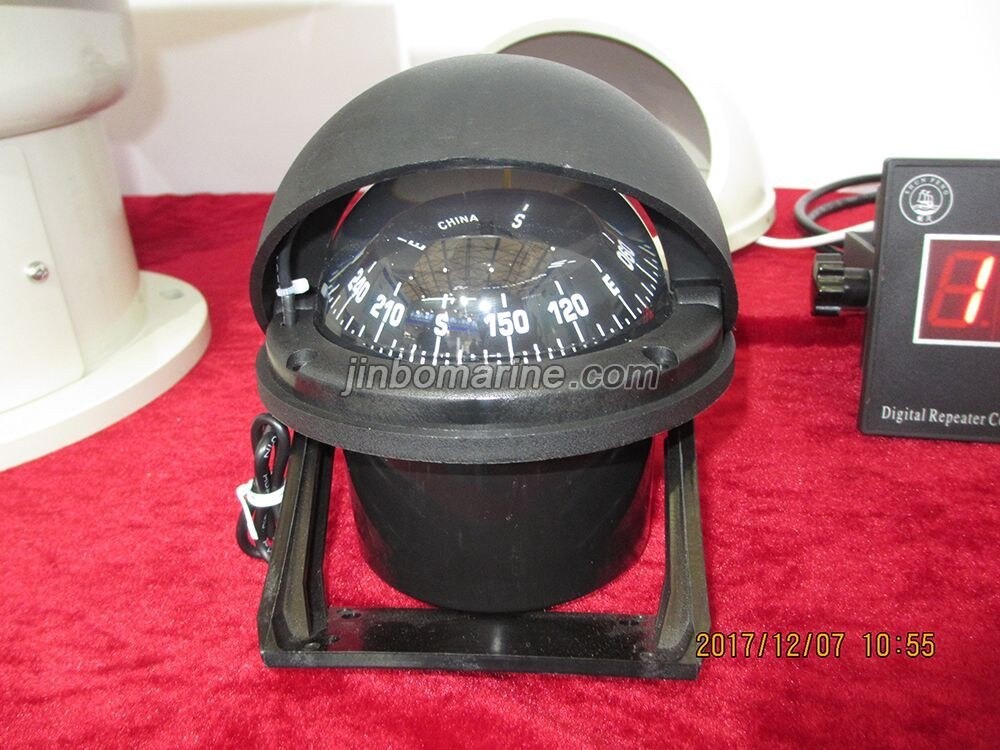

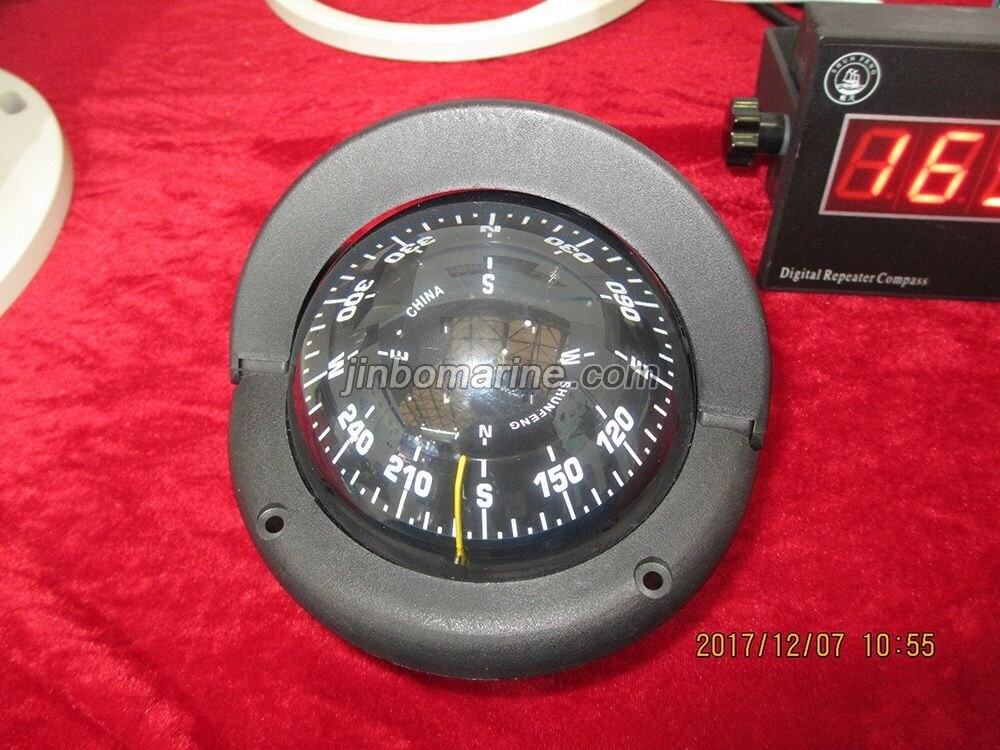

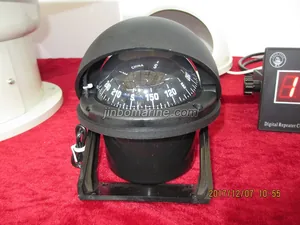

CX-65A Small Boat Magnetic Compass
PDF Datasheet
We can supply according to your requirement.
China CX-65A Small Boat Magnetic Compass:
CX-65A small boat magnetic compass is a good liquid magnetic compass. The compass is designed and manufactured in accordance with ISO 14227-2001《Small Boat Magnetic Compass》standard. Its actual dial diameter is 65㎜, but the special spherical cover magnifies it to 85㎜. The product has the advantages of simple structure,convenient using,accurate direction,high sensitivity legible dial etc. It is suitable for yachts,lifesaving boats,enclosed boats indicating course heading or distinguishing.
Main technical parameters:
| Dial diameter | 65mm |
| Dial graduation | 0°~360°5°for each grid |
| Using temperature | -20℃~60℃ |
| Indicating deviation(H=35μT,T=20±3℃) | ≤1.5° |
| Half period(H=35μT,T=20±3℃) | ≥3S |
| Friction deviation(H=35μT,T=20±3℃) | ≤1° |
| Main semicircle self heterodyne correcting energy | 1°~40° |
| Quadrant self heterodyne correcting energy | 1°~5° |
| Inclining self heterodyne correcting energy | -75~+75μT |
| Lighting power supply | AC220V,DC24V(12V) |
| Outline Dimension of CX65 | 135x135x135mm |
| Outline Dimension of CX65A | 130x130x150mm |
| CX65 Diameter of mounting holes | Pitchrow 124 Aperture Φ6 |
| CX65ADiameter of mounting holes | Pitchrow 115 Aperture Φ5 |
| CX65 Weight | 1kg. |
| CX65AWeight | 0.8kg. |
