CY-2A 15ppm Bilge Alarm Mini Type
Main Feature: Products Name CY-2A（mini type）15ppm Bilge Alarm Measure range 0－30ppm ...
Loading product images...

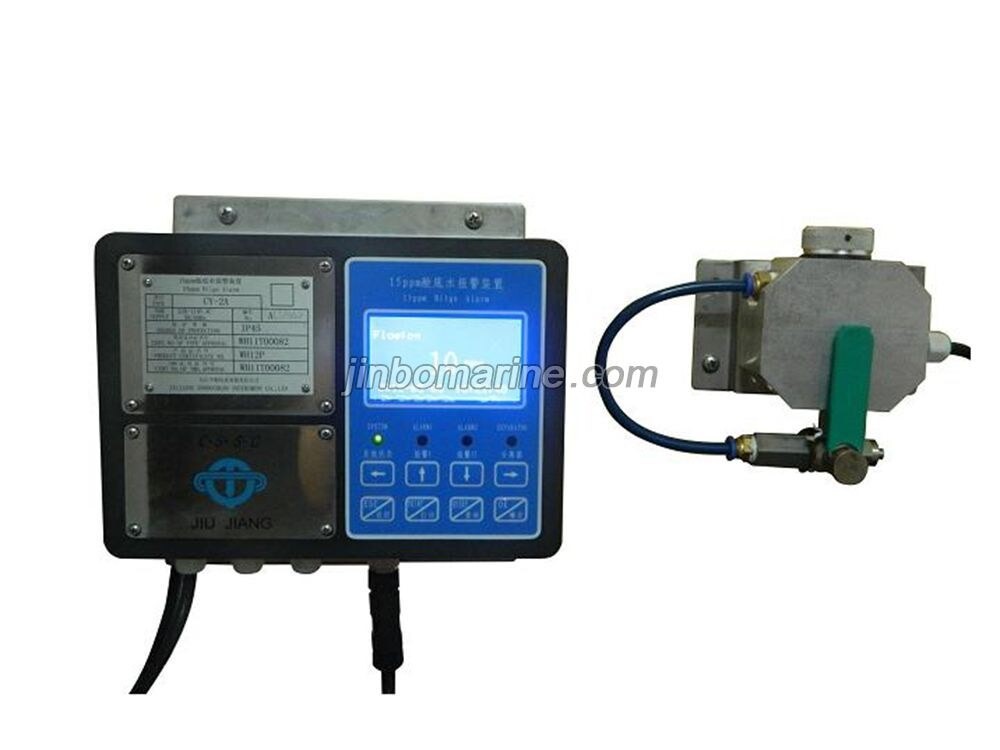

CY-2A 15ppm Bilge Alarm Mini Type
PDF Datasheet
We can supply according to your requirement.
Main Feature:
| Products Name | CY-2A（mini type）15ppm Bilge Alarm |
| Measure range | 0－30ppm |
| Accuracy | Better than ±5ppm（when 15ppm） |
| Display of measurement value | LCD screen display |
| Alarm indication | 2 ways red LED |
| Working point of alarm | 15 ppm |
| Alarm delay 1 | 0 second |
| Alarm delay 2 | 4 seconds |
| Alarm output | 2 channels of relay output |
| Rated value of alarm relays | 3A, 250VAC, non- inductive |
| Output signal | 4－20mA |
| Detection of feedback signal of output of alarm relays | 2 channels of operation statue contact detection |
| Data of alarm data | storage and printing output |
| Ambient temperature | +1℃ - +55℃ |
| Relative humidity | ≤93% |
| Temperature of sample water | +1℃－+40℃ |
| Pressure of sampling water | 0.1-0.6 MPa |
| Flow rate of sampling water | 0.1- 4L/min |
| Power supply | 220VAC or DC24V, 50/60Hz |
| Power consumption: | |
| Gernral working situation | 2W |
| Print working situation | 7W |
| Protection grade | IP45 |
| Main Dimension | 210mm×152mm×45mm |
| Weight | 2.8 Kg |
