Marine Equipment
CYBW-10 Marine self-lubricating air pump
Description: CYBW series Marine self-lubricating air pump has the characteristics of small size, light weight, energy saving, pure exhaust without oil stains and pollution. Meet the r...
Loading product images...

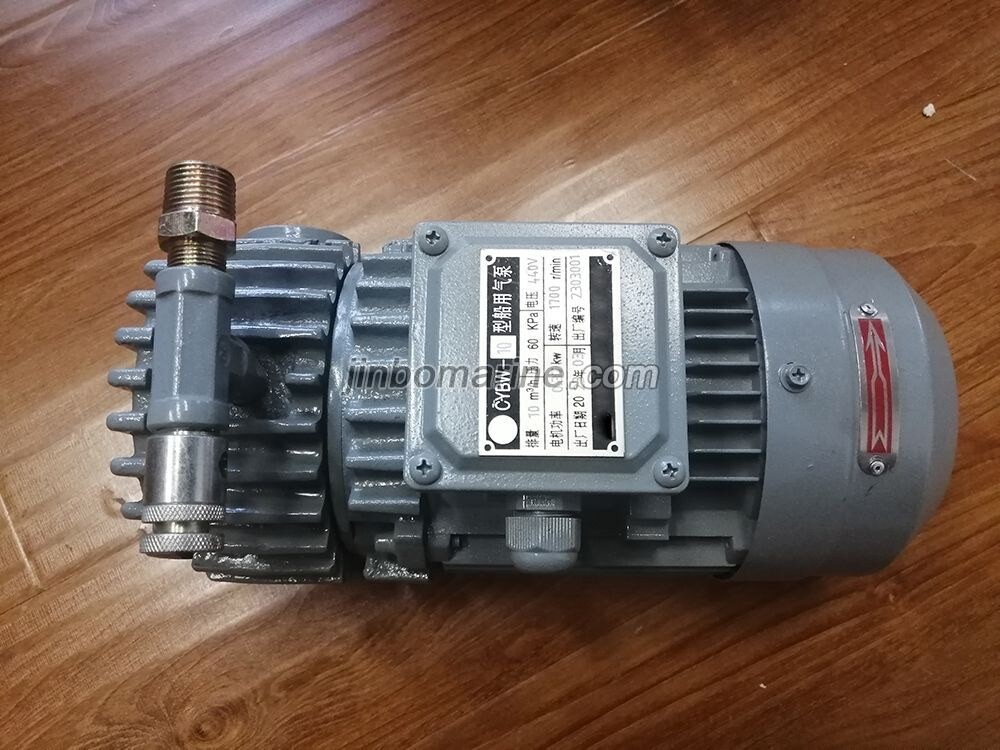

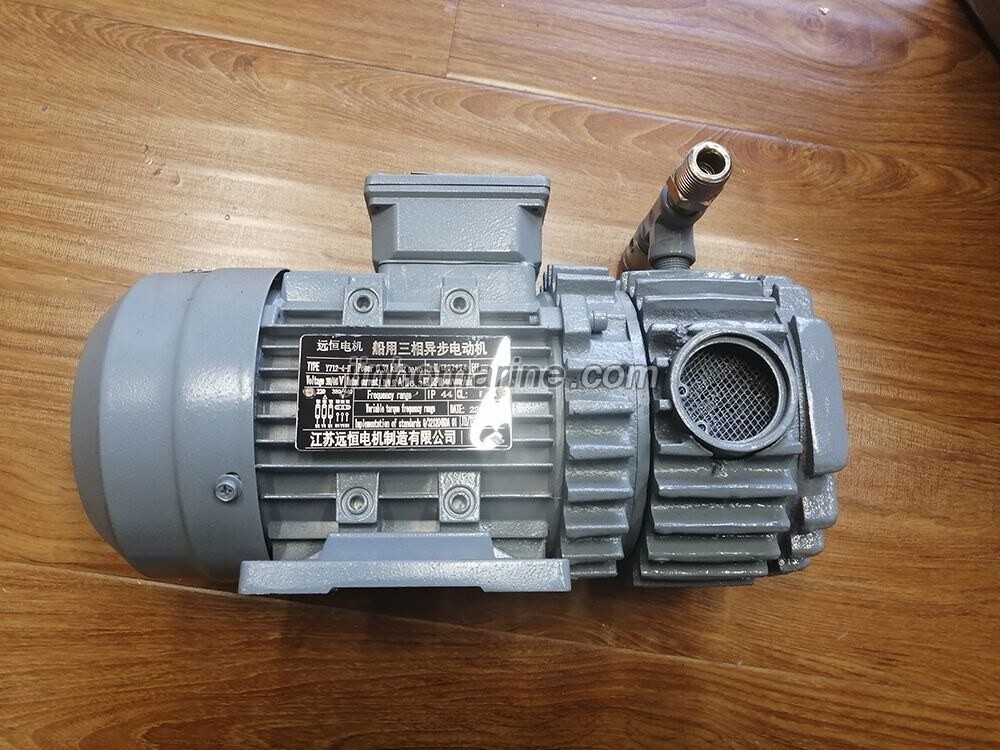

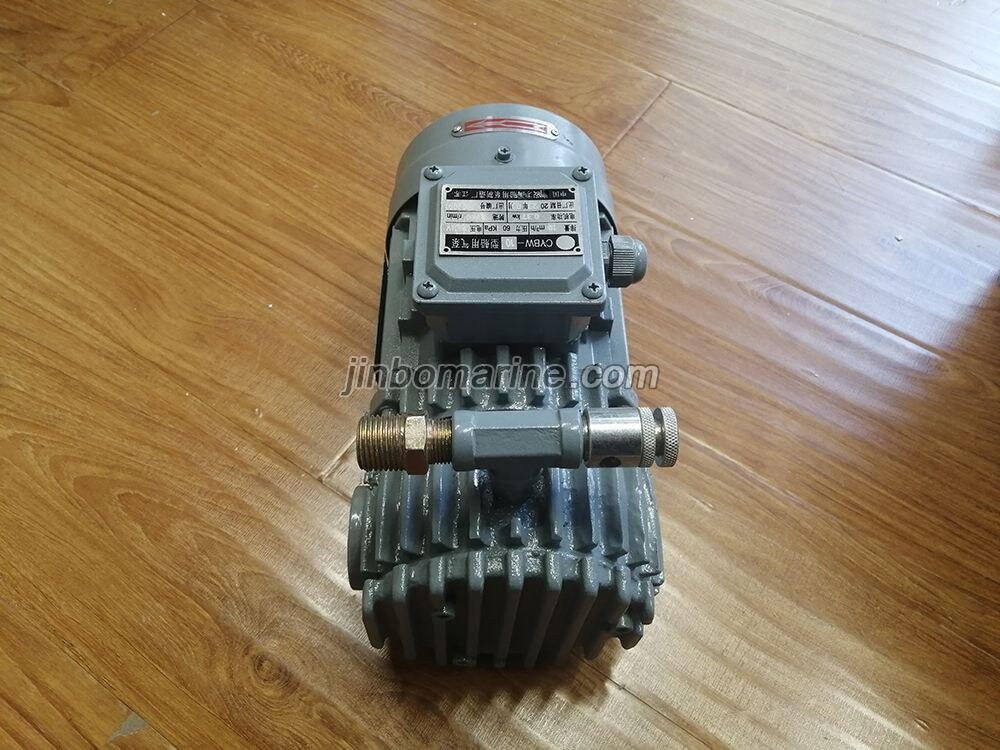

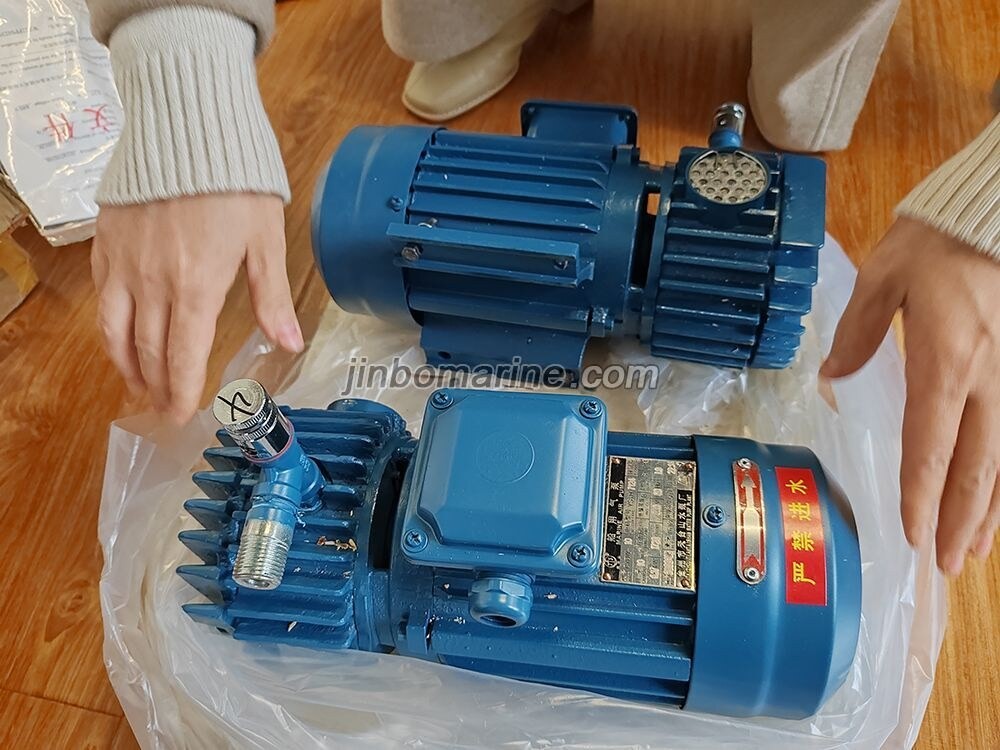

CYBW-10 Marine self-lubricating air pump
PDF Datasheet
We can supply according to your requirement.
Description:
CYBW series Marine self-lubricating air pump has the characteristics of small size, light weight, energy saving, pure exhaust without oil stains and pollution. Meet the requirements of the ship. CYBW series Marine self-lubricating air pump is designed for Marine sewage treatment equipment, and is suitable for printing machinery, packaging, blow molding, lamps and other industries
Techincal data:
| NO. | Model | Capacity m³/h | Discharge Pressure KPa | Speed r/min | Power kw | Connect pipe DN mm | Weight kg |
| 1 | CYBW-6 | 6 | 60 | 1400 | 0.25 | 16 | 13 |
| 2 | CYBW-10 | 10 | 0.37 | 16 | 14 | ||
| 3 | CYBW-15 | 15 | 0.55 | 20 | 16 | ||
| 4 | CYBW-20 | 20 | 0.75 | 20 | 18 | ||
| 5 | CYBW-25 | 25 | 1.1 | 27 | 34 | ||
| 6 | CYBW-40 | 40 | 1.5 | 27 | 38 |
