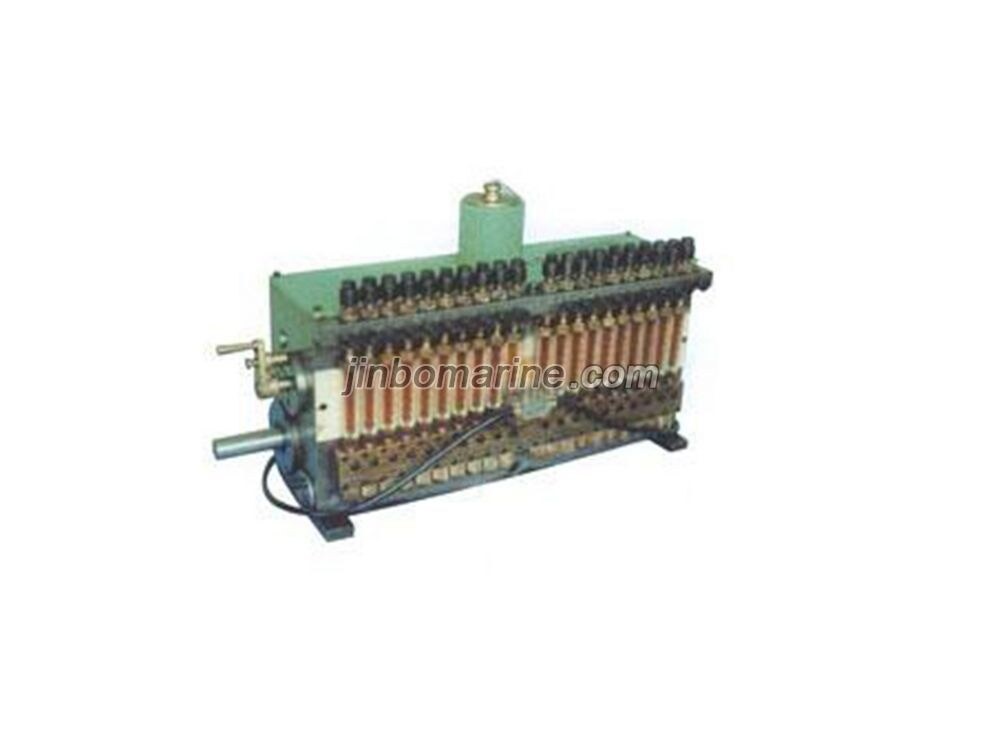

CZ06-6-24 Series Self-contained Lubricator
CZ06-6-24 Series Self-contained Lubricator: The CZ06-6-24 series self-contained lubricator is suitable for the lubrication of various marine low-speed diesel engine cylinders an...
CZ06-6-24 Series Self-contained Lubricator
PDF Datasheet
We can supply according to your requirement.
CZ06-6-24 Series Self-contained Lubricator:
The CZ06-6-24 series self-contained lubricator is suitable for the lubrication of various marine low-speed diesel engine cylinders and the lubrication of various industrial, mining, and enterprise operating machinery. This product has a reasonable structure, small volume, and clear display of oil supply. Convenient adjustment, correct fuel supply, lower lubrication consumption, and advanced alarm device and electric heating device. This product is used with B & W low-speed diesel engine and is exclusively produced in China, and is well received by users.
Specification:
| Number of Oil feeder | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 07-12 | |
| Diameter of plunger | mm | φ4 | φ4 | φ4 | φ3 | φ3 | φ3 | φ3 | φ3 |
| Max working pressure | MPa | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Max stroke | mm | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Max oil supply of single pump | cm2/pr | 0.1311 | 0.1311 | 0.1311 | 0.0636 | 0.0636 | 0.0636 | 0.0636 | 0.0629 |
| Matching diesel engine | 6L60 | 5s70 | 8Lss | 4L35 | 5L35 | 34/82 | 6L42MC | ||
| S70MC | 6L50 | 6L50 |
