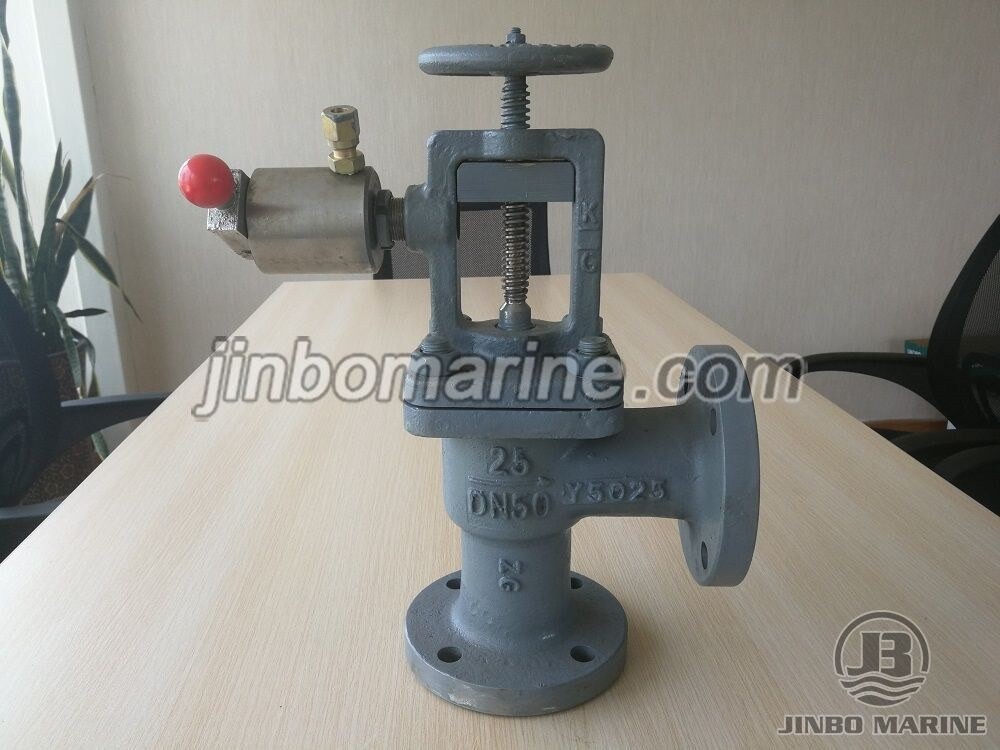

Cast Steel Angle Pneumatic Quick Closing Valve
Marine Cast Steel Pneumatic Quick Closing Valve is air-actuated, and also can be controlled by the rope, used as the emergency shut-off valve for marine fresh water, fuel oil, lubrication oi...
Cast Steel Angle Pneumatic Quick Closing Valve
PDF Datasheet
We can supply according to your requirement.
China Cast Steel Angle Pneumatic Quick Closing Valve:
Marine Cast Steel Pneumatic Quick Closing Valve is air-actuated, and also can be controlled by the rope, used as the emergency shut-off valve for marine fresh water, fuel oil, lubrication oil pipe system. It also can be opened/closed by the handwheel as the stop valve. When in emergency, it can be closed by hand on the spot, or remotely.
Technical Specification:
Design Standard: GB/T5744-2008
Test Standard: GB600
Nominal Pressure: 0.6Mpa~2.5Mpa
Flange Standard: GB2501
Working Pressure of Cylinder: 0.3~0.7Mpa
Main Parts & Material:
Body-Cast Steel
Bonnet-Cast Steel
Disc-Carbon Steel
Stem-Stainless Steel
Piston-Brass
Air Cylinder---Stainless Steel

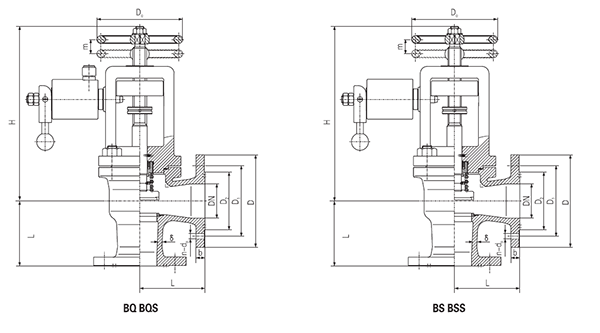

Main Size(mm):
| Nominal Size | Structural Size | Handwheel | Lift Range | Flange | Cylinder Volume | ||||||||||||||||
| L | H | L0 | b | PN6 | PN10 | PN16 | PN25 | ||||||||||||||
| DN | Type A | Type B | Type A | Type B | Do | m | D | D1 | n-d | D | D1 | n-d | D | D1 | n-d | D | D1 | n-d | L | ||
| 15 | 130 | 90 | 205 | 220 | 198 | 80 | 8 | 14 | 80 | 55 | 4-11 | 95 | 65 | 4-14 | 95 | 65 | 4-14 | 95 | 65 | 4-14 | 0.075 |
| 20 | 150 | 95 | 210 | 220 | 198 | 80 | 8 | 16 | 90 | 65 | 4-11 | 105 | 75 | 4-14 | 105 | 75 | 4-14 | 105 | 75 | 4-14 | |
| 25 | 160 | 100 | 230 | 220 | 198 | 80 | 9 | 16 | 100 | 75 | 4-11 | 115 | 85 | 4-14 | 115 | 85 | 4-14 | 115 | 85 | 4-14 | |
| 32 | 180 | 105 | 230 | 220 | 198 | 100 | 9 | 18 | 120 | 90 | 4-14 | 140 | 100 | 4-18 | 140 | 100 | 4-18 | 140 | 100 | 4-18 | |
| 40 | 200 | 115 | 260 | 265 | 235 | 120 | 13 | 18 | 130 | 100 | 4-14 | 150 | 110 | 4-18 | 150 | 110 | 4-18 | 150 | 110 | 4-18 | |
| 50 | 230 | 125 | 290 | 265 | 240 | 140 | 16 | 20 | 140 | 110 | 4-14 | 165 | 125 | 4-18 | 165 | 125 | 4-18 | 165 | 125 | 4-18 | 0.166 |
| 65 | 290 | 145 | 315 | 290 | 245 | 140 | 19 | 22 | 160 | 130 | 4-14 | 185 | 145 | 8-18 | 185 | 145 | 8-18 | 185 | 145 | 8-18 | |
| 80 | 310 | 155 | 330 | 300 | 245 | 160 | 23 | 22 | 190 | 150 | 4-18 | 200 | 160 | 8-18 | 200 | 160 | 8-18 | 200 | 160 | 8-18 | |
| 100 | 350 | 175 | 385 | 335 | 245 | 180 | 30 | 22 | 210 | 170 | 4-18 | 220 | 280 | 8-18 | 220 | 280 | 8-18 | 235 | 190 | 8-22 | |
| 125 | 400 | 200 | 442 | 365 | 255 | 180 | 40 | 22 | 240 | 200 | 8-18 | 250 | 215 | 8-22 | 250 | 215 | 8-22 | 270 | 220 | 8-26 | |
| 150 | 480 | 225 | 485 | 400 | 260 | 200 | 44 | 24 | 265 | 225 | 8-18 | 285 | 240 | 8-22 | 285 | 240 | 8-22 | 300 | 250 | 8-26 | |
| 200 | 600 | 275 | 605 | 510 | 280 | 320 | 64 | 24 | 320 | 280 | 8-18 | 340 | 295 | 8-22 | 340 | 295 | 12-22 | 360 | 310 | 12-26 | |
