DIN5685 Stainless Steel Link Chain
Material: SS304, SS316 or SS316L Size: 2mm to 16mm Finish: Mirror Polished Size Table Size Inside Length ...
Loading product images...

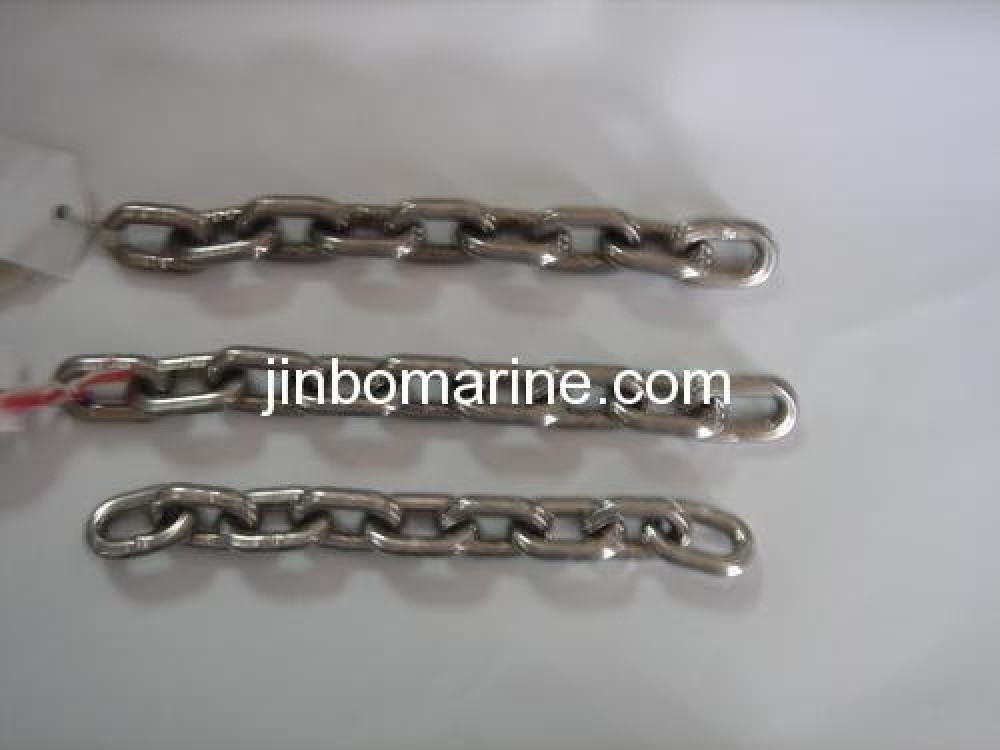

DIN5685 Stainless Steel Link Chain
PDF Datasheet
We can supply according to your requirement.
China DIN5685 Stainless Steel Link Chain:
Material: SS304, SS316 or SS316L
Size: 2mm to 16mm
Finish: Mirror Polished
Size Table
| Size | Inside Length | Inside Width | Weight |
| MM | MM | MM | KG/M |
| 2 | 12 | 4 | 0.071 |
| 2.5 | 14 | 5 | 0.114 |
| 3 | 10 | 6 | 0.165 |
| 3.5 | 18 | 7 | 0.23 |
| 4 | 19 | 8 | 0.3 |
| 5 | 21 | 10 | 0.5 |
| 6 | 24 | 12 | 0.73 |
| 7 | 28 | 14 | 1 |
| 8 | 32 | 16 | 1.3 |
| 9 | 36 | 18 | 1.65 |
| 10 | 40 | 20 | 2.05 |
| 12 | 48 | 24 | 2.9 |
| 13 | 52 | 26 | 3.45 |
