Marine Equipment

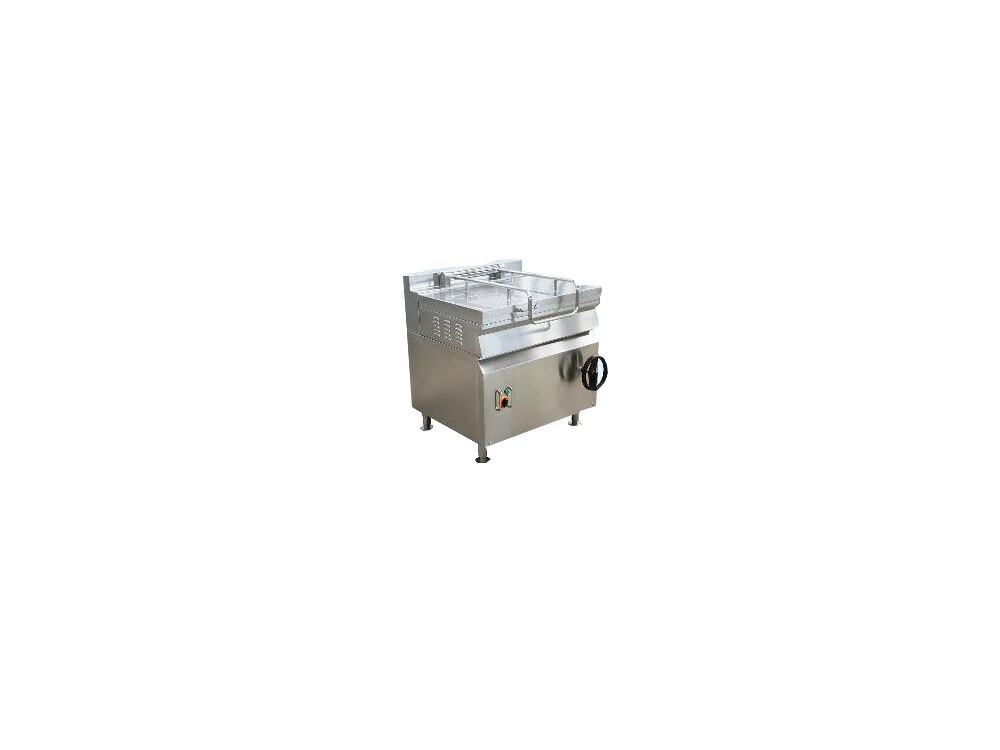

DQG-9 Marine Tilting Electric Frying Pan
DQG-9 Marine Tilting Electric Frying Pan 1. All stainless steel structure 2. The pot bottom rounded corner design, easy to clean 3. Handwheel or electric drive tilting pan can be sel...
Loading product images...
DQG-9 Marine Tilting Electric Frying Pan
PDF Datasheet
We can supply according to your requirement.
DQG-9 Marine Tilting Electric Frying Pan
1. All stainless steel structure
2. The pot bottom rounded corner design, easy to clean
3. Handwheel or electric drive tilting pan can be selected as required
4. The hand wheel is driven by a turbine rod to drive the tilting pan
5. Electric type adopts imported lifting system to drive the tilting pot
6. With pot body not in place protection
7. The temperature at the bottom of the pot is controlled by a thermostat
8. Equipped with stainless steel adjustable sole for easy installation on board

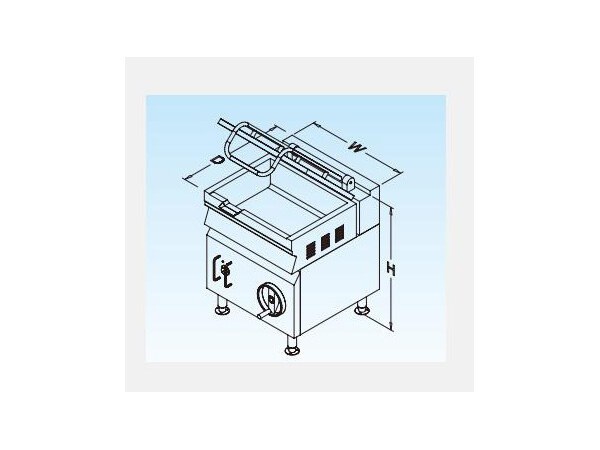

DQG-9 Marine Tilting Electric Frying Pan Drawing
DQG-9 Marine Tilting Electric Frying Pan Parameters
| Model | DQG-9 | DQG-10 | DQG-12 | DQG-14 | DQG-10D (electric） | DQG-12（electric） |
| Volume(L) | 40 | 60 | 80 | 100 | 60 | 80 |
| Voltage | 380/415V-3PH-50Hz 440/480v 3ph-60Hz | |||||
| Power(kw) | 9 | 10.8 | 12.6 | 14.8 | 10.8 | 12.6 |
| Size(mm) | 700X700X850 | 850X700X850 | 1000X850X850 | 850X700X850 | 850x700x50 | 1000x700x850 |
| Weight(kg) | 120 | 140 | 150 | 160 | 140 | 150 |
