DSG51B Multi-Function Pipe Crimper
DSG51B Multi-function pipe crimper is suitable for industry, agriculture hose crimping. This machine is small, light and easy for operation. Feature: 1.small and portable appeara...
Loading product images...

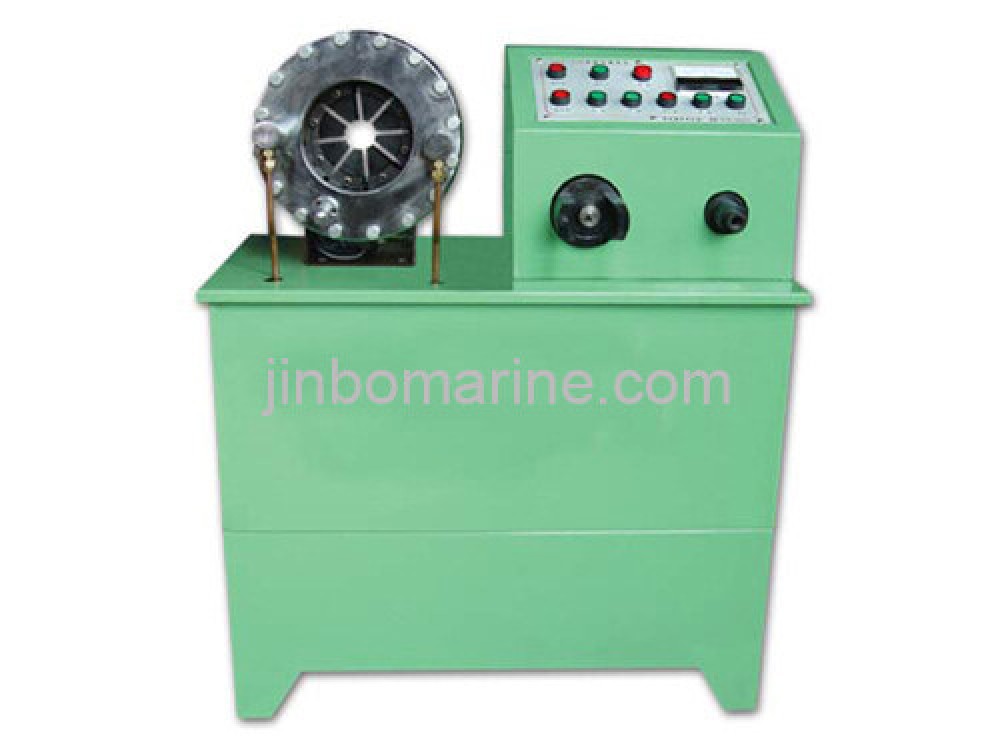

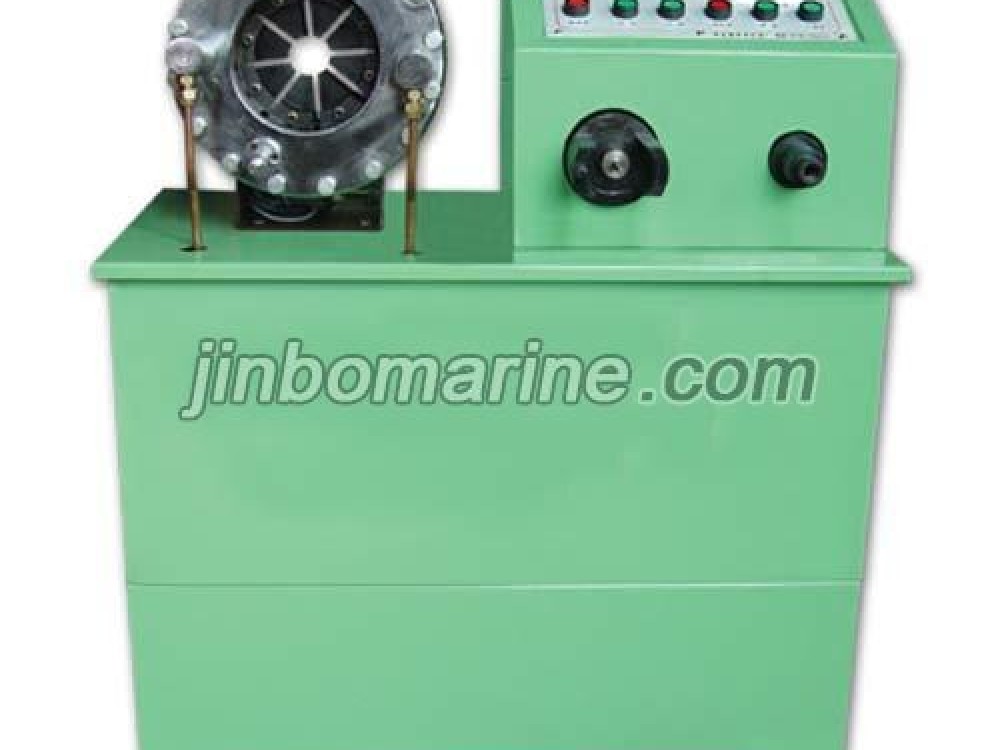

DSG51B Multi-Function Pipe Crimper
PDF Datasheet
We can supply according to your requirement.
China DSG51B Multi-Function Pipe Crimper:
DSG51B Multi-function pipe crimper is suitable for industry, agriculture hose crimping. This machine is small, light and easy for operation.
Feature:
1.small and portable appearance
2.big force and low noise
3.easy to operate.
Crimping inside diameter:6-51mm
Ruler precision:0.02mm
Max. crimping force:407T
Motor speed:1420r/min
Oil pump capacity:10ml/r
Oil pump rated pressure:20Mpa
Overall size:850x430x1030mm
Power:3.75Kw
Weight:260Kg

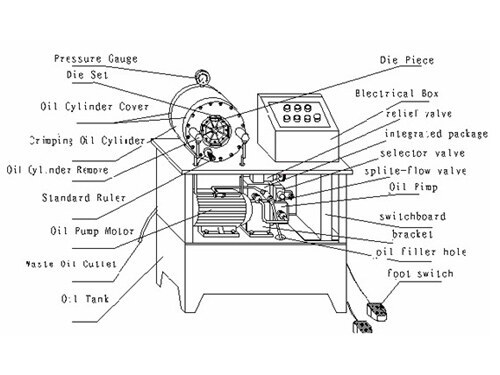

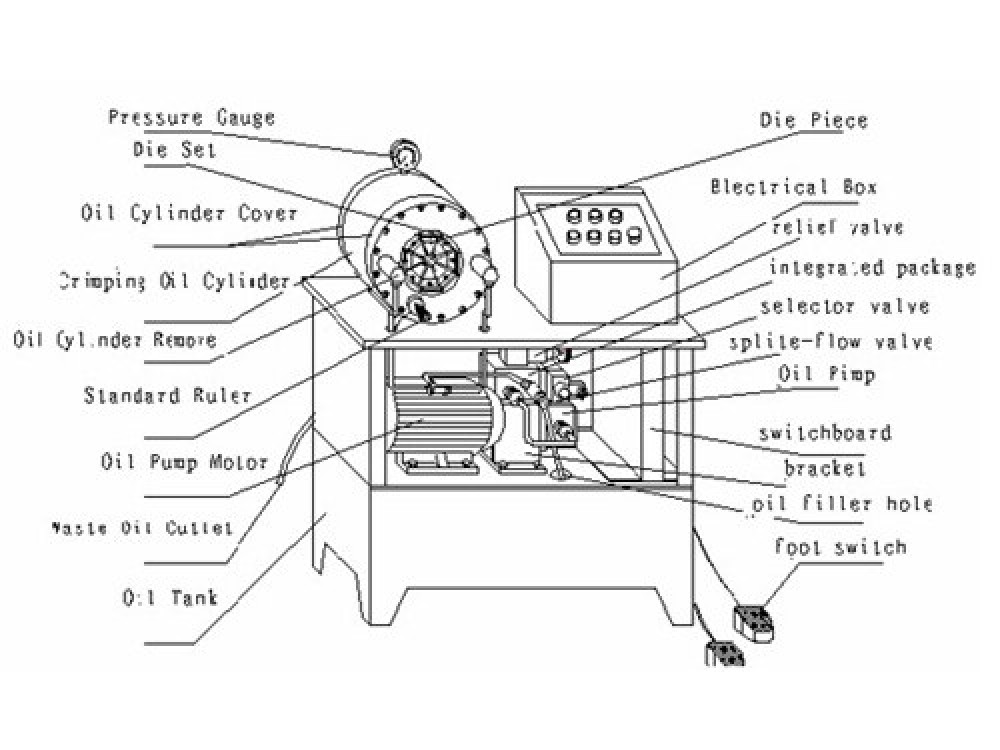

Structure:
| Name: | Hose crimping machine,hose crimper,Pipe locking machine,Locking pipe machine,tube locking machine, tube crimping machine,tube crimper,pipe crimping machine,pipe crimper. |
|---|---|
| Usage | Crimping hose |
| Popular type: | DX68 Hydraulic high pressure hose crimping machine 6-51mm |
| DSG51A Multi-function pipe crimping machine 6-51mm | |
| DSG51B Multi-function pipe crimper 6-51mm | |
| DSG75 High pressure hose crimper 6-75mm | |
| DSG150 High pressure hose crimping machine 6-150mm | |
| DSG102S hose crimping machine 6-102mm | |
| DSG250A Locking Pipe Machine 6-51mm | |
| DSG250B tube crimping Machine 6-51mm | |
| DSG250C Pipe Locking Machine 6-51mm | |
| JK400 tube crimper 6-64mm | |
| JKS200 Manual type hose crimping machine 6-32mm | |
| SK100 Numeric control locking pipe machine 4-89mm |
