Marine Equipment
DZG-80Q Marine Tilting Pot
DZG-80Q Marine Tilting Pot 1. All stainless steel structure 2. Three-layer design of the pot body 3. The pot cover adopts one-piece type, which is easy to operate 4. The hand wheel ...
Loading product images...
DZG-80Q Marine Tilting Pot
PDF Datasheet
We can supply according to your requirement.

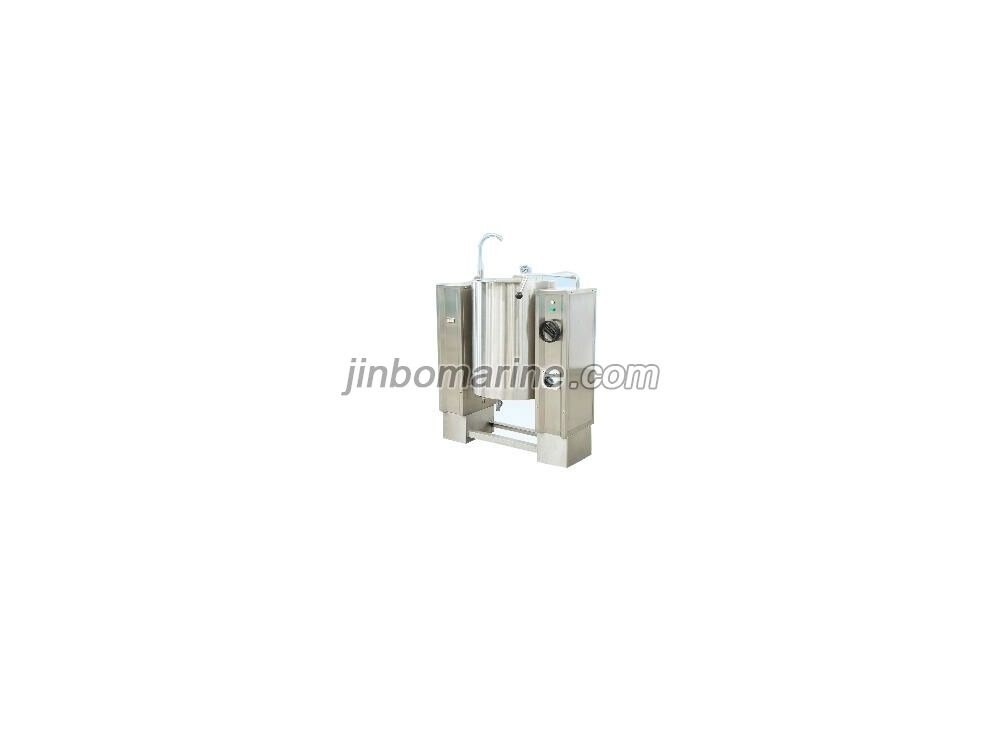

DZG-80Q Marine Tilting Pot
1. All stainless steel structure
2. Three-layer design of the pot body
3. The pot cover adopts one-piece type, which is easy to operate
4. The hand wheel is driven by a turbine rod to drive the tilting pan
5. Turbine worm drive tilting pan, optional handwheel or electric
6. Equipped with pressure gauge and imported safety relief valve
7. The base form is suitable for installation and fixation on ships

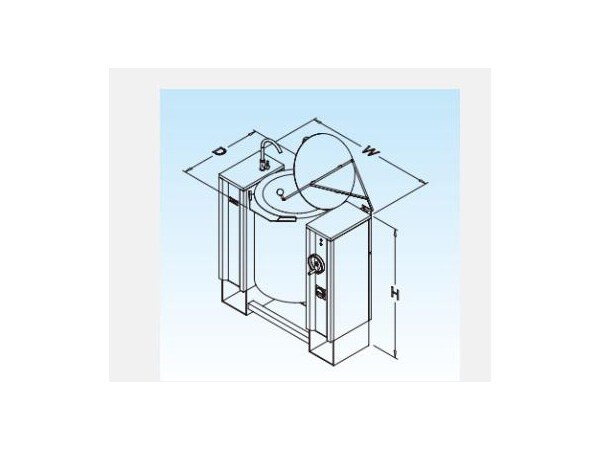

DZG-80Q Marine Tilting Pot Drawing
DZG-80Q Marine Tilting Pot Parameters
| Model | DZG-40Q | DZG-60Q | DZG-80Q | Model | DZG-100Q | DZG-120Q | 40MTLC |
| Volume(L) | 40 | 60 | 80 | Volume(L) | 100 | 120 | 40 |
| Voltage | 380/415V-3PH-50Hz 440/480v 3ph-60Hz | Voltage | 380/415V-3PH-50Hz 440/480v 3ph-60Hz | ||||
| Power(kw) | 9 | 13.5 | 13.5 | Power(kw) | 13.5 | 18 | 9 |
| Size(mm) | 930X700X930 | 930X700X980 | 980X730X980 | Size(mm) | 1030X800X90 | 1080X920X980 | 800X700X850 |
| Weight(kg) | 120 | 130 | 150 | Weight(kg) | 170 | 250 | 100 |
