Danforth Anchors HHP Type
Anchor Danforth is High Holding Power Anchor, widely used in offshore mooring system, the weight is from 200kgs to 25000kgs. Danforth type anchor widely supplied to Singapore, Indonesia, Mal...
Loading product images...
Danforth Anchors HHP Type
PDF Datasheet
We can supply according to your requirement.
China Danforth Anchors HHP Type:
Anchor Danforth is High Holding Power Anchor, widely used in offshore mooring system, the weight is from 200kgs to 25000kgs. Danforth type anchor widely supplied to Singapore, Indonesia, Malaysia and other countries.
Danforth Anchor Specification:
Material: ZG200-400C
Weight: 200KGS to 2500KGS
Finish: Black Painted.
Certificate: ABS,LR, BV, DNV, NK, GL, RINA, IRS, CCS

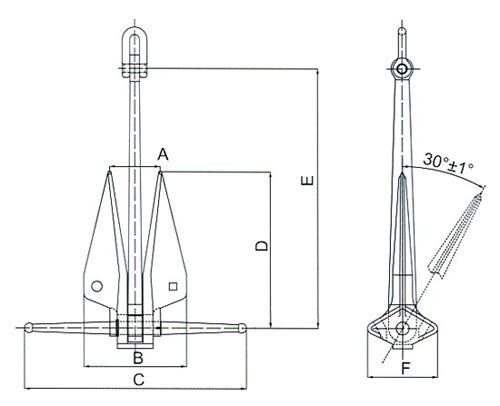

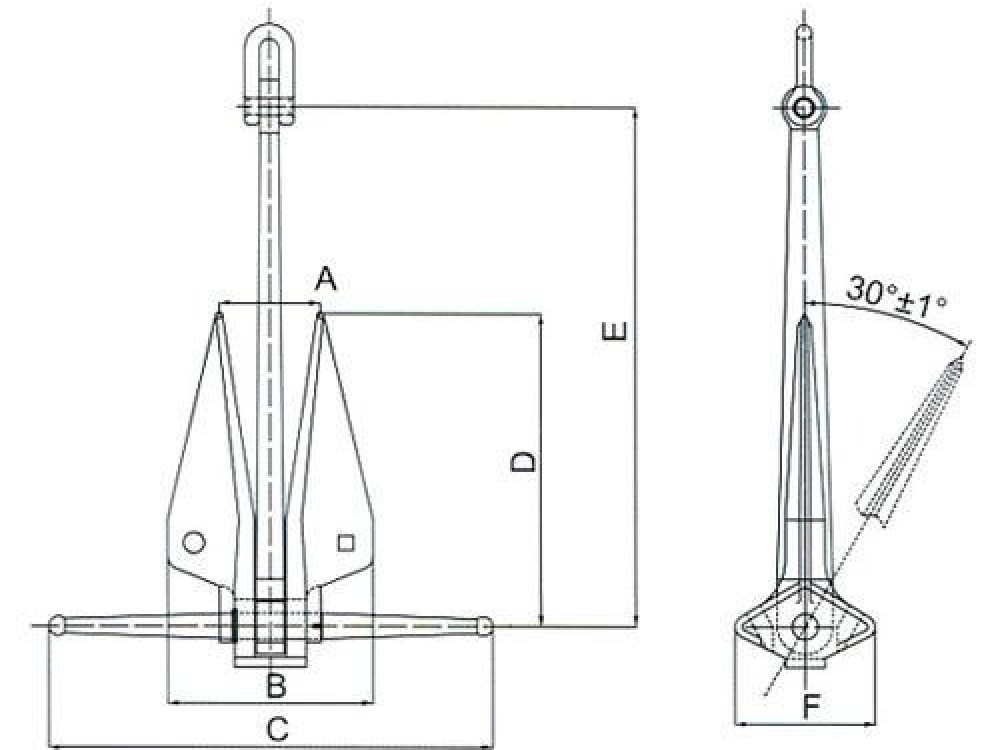

| Weight/Mass (KG) | Size(mm) | |||||
| A | B | C | D | E | F | |
| 60KGS | 186 | 408 | 755 | 535 | 985 | 240 |
| 75KGS | 200 | 450 | 930 | 590 | 1080 | 260 |
| 100KGS | 216 | 490 | 930 | 640 | 1180 | 290 |
| 120KGS | 220 | 505 | 970 | 670 | 1230 | 300 |
| 125KGS | 234 | 520 | 1000 | 690 | 1270 | 310 |
| 150KGS | 242 | 550 | 1060 | 732 | 1348 | 330 |
| 200KGS | 266 | 600 | 1150 | 810 | 1490 | 360 |
| 250KGS | 294 | 650 | 1240 | 870 | 1600 | 390 |
| 276KGS | 296 | 660 | 1250 | 885 | 1620 | 400 |
| 300KGS | 312 | 690 | 1320 | 925 | 1700 | 420 |
| 400KGS | 342 | 750 | 1460 | 1010 | 1810 | 460 |
| 500KGS | 368 | 800 | 1570 | 1100 | 2020 | 490 |
| 750KGS | 414 | 910 | 1800 | 1260 | 2300 | 560 |
| 1000KGS | 450 | 980 | 1980 | 1380 | 2540 | 620 |
| 1250KGS | 484 | 1070 | 2100 | 1490 | 2740 | 670 |
| 1500KGS | 512 | 1120 | 2220 | 1580 | 2850 | 700 |
| 2000KGS | 560 | 1130 | 2440 | 1730 | 2910 | 770 |
| 2500KGS | 605 | 1217 | 2628 | 1864 | 3070 | 830 |
| 3000KGS | 640 | 1290 | 2790 | 1980 | 3330 | 880 |
| 4000KGS | 700 | 1420 | 3070 | 2170 | 3590 | 970 |
| 5000KGS | 735 | 1482 | 3200 | 2270 | 3840 | 1020 |
| 6000KGS | 800 | 1620 | 3500 | 2480 | 4100 | 1100 |
| 7000KGS | 840 | 1696 | 3850 | 2590 | 4180 | 1150 |
| 8500KGS | 910 | 1936 | 3940 | 2600 | 4490 | 1240 |
| 10000KGS | 940 | 2000 | 4150 | 2900 | 4640 | 1280 |
| 13600KGS | 1046 | 2120 | 4590 | 3250 | 5378 | 1140 |
| 16000KGS | 1105 | 2240 | 4845 | 3435 | 5680 | 1520 |
| 18000KGS | 1150 | 2270 | 5000 | 3570 | 5680 | 1580 |
| 20000KGS | 1190 | 2350 | 5175 | 3695 | 5680 | 1635 |
| 25000KGS | 1280 | 2530 | 5570 | 3982 | 6330 | 1760 |
Danforth Anchor Container shipping

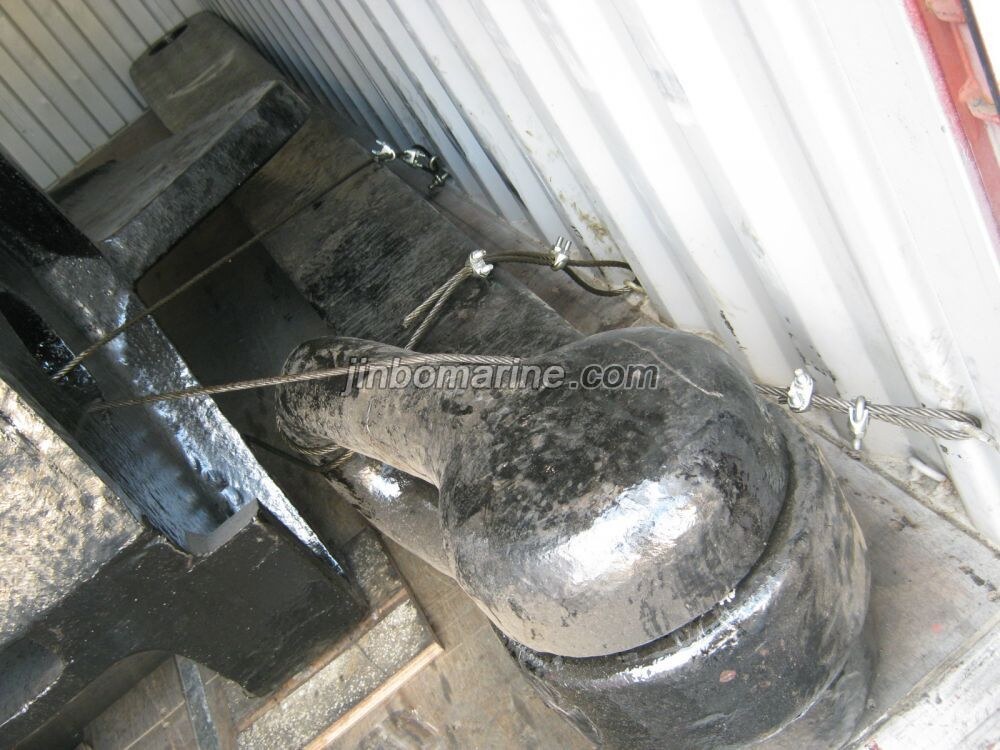

Danforth Anchor Shank 13600kgs

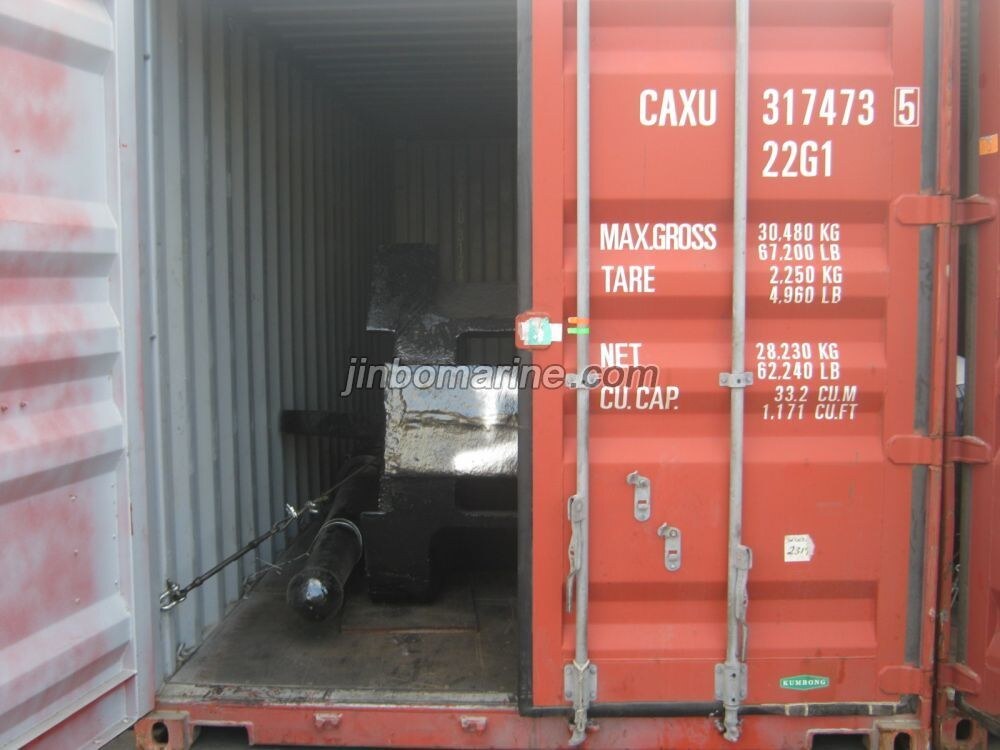

Danforth Anchor Container Stuffing 13600kgs
