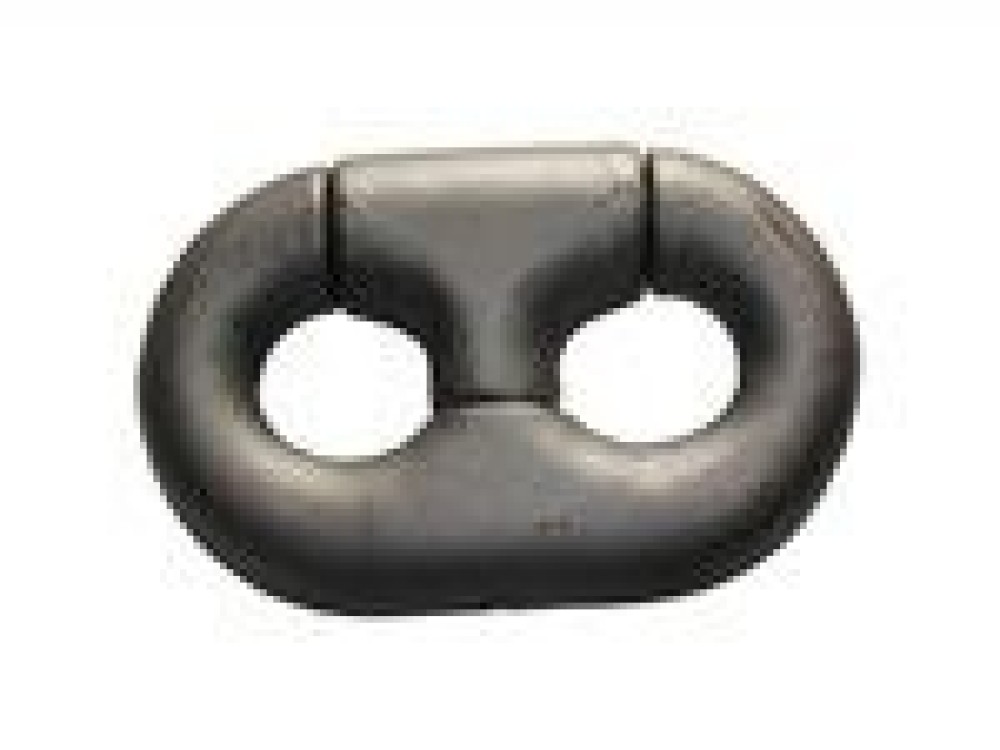

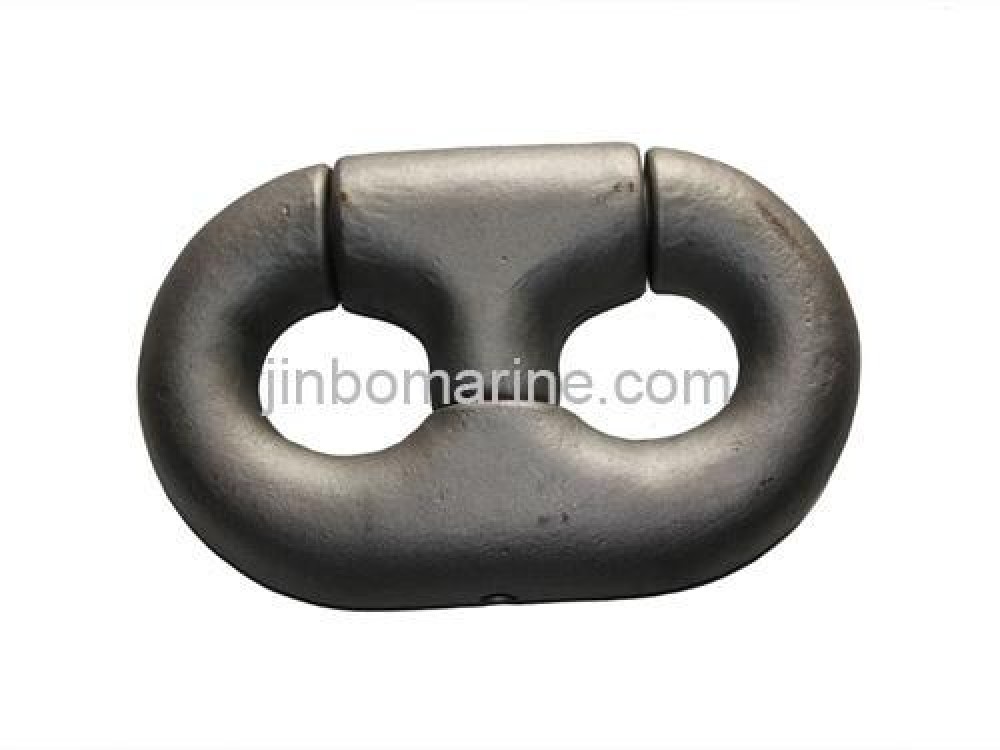

Detachable Chain Connecting Link C type
PDF Datasheet
We can supply according to your requirement.
China Detachable Chain Connecting Link C type:
Connecting Link C type is used for connecting the mooring lines for the same size, widely used for mooring chains.
Main Specification:
| CHAIN SIZE | A | B | C | D | E | F | G | WEIGHT | PROOF TEST | BREAK TEST | ||
| mm | inches | mm | mm | mm | mm | mm | mm | mm | kg | lbs | KGF | KGF |
| 13- 16 | 1/2 - 5/8 | 95 | 63 | 22 | 16 | 19 | 21 | 12 | 0.5 | 1 | 14651 | 23668 |
| 19 | 3/4 | 114 | 74 | 24 | 19 | 22 | 24 | 13 | 1 | 2 | 21771 | 34020 |
| 21- 22 | 13/16 - 7/8 | 133 | 86 | 28 | 22 | 25 | 28 | 16 | 1.5 | 3.5 | 29030 | 44452 |
| 24- 25 | 15/16 - 1 | 152 | 102 | 35 | 25 | 29 | 31 | 17 | 2.3 | 5.1 | 38000 | 54300 |
| 27- 29 | 1-1/16 - 1-1/8 | 172 | 114 | 40 | 29 | 32 | 35 | 19 | 3.3 | 7.3 | 49200 | 70400 |
| 30- 32 | 1-3/16 - 1-1/4 | 191 | 127 | 44 | 32 | 36 | 39 | 21 | 4.6 | 10.1 | 59500 | 84900 |
| 33- 35 | 1-5/16 - 1-3/8 | 210 | 140 | 48 | 35 | 40 | 43 | 23 | 6.2 | 13.7 | 70700 | 101300 |
| 36- 38 | 1-7/16 - 1-1/2 | 229 | 152 | 53 | 38 | 43 | 47 | 26 | 7.9 | 17.4 | 83300 | 118900 |
| 40- 42 | 1-9/16 - 1-5/8 | 248 | 165 | 57 | 42 | 47 | 50 | 28 | 10 | 22 | 102000 | 143400 |
| 43- 44 | 1-11/16 - 1-3/4 | 267 | 178 | 62 | 45 | 50 | 56 | 30 | 12.5 | 27.6 | 111900 | 159900 |
| 46- 48 | 1-13/16 - 1-7/8 | 286 | 191 | 64 | 48 | 55 | 60 | 32 | 14.5 | 32 | 130000 | 185100 |
| 50- 51 | 1-15/16 - 2 | 305 | 197 | 64 | 51 | 59 | 64 | 34 | 16.3 | 35.9 | 145400 | 207700 |
| 52- 54 | 2-1/16 - 2-1/8 | 324 | 209 | 67 | 54 | 63 | 68 | 36 | 20 | 44.1 | 162000 | 231500 |
| 56- 58 | 2-3/16 - 2-1/4 | 343 | 222 | 71 | 58 | 66 | 71 | 38 | 23.6 | 52 | 185400 | 265000 |
| 59- 60 | 2-5/16 - 2-3/8 | 364 | 235 | 78 | 61 | 70 | 76 | 41 | 28 | 61.7 | 199600 | 285200 |
| 62- 64 | 2-7/16 - 2-1/2 | 381 | 246 | 79 | 64 | 74 | 79 | 43 | 32.2 | 71 | 223000 | 319000 |
| 66- 67 | 2-9/16 - 2-5/8 | 400 | 259 | 83 | 67 | 77 | 83 | 45 | 37 | 81.6 | 242900 | 347000 |
| 68- 70 | 2-11/16 - 2-3/4 | 419 | 271 | 87 | 70 | 81 | 87 | 47 | 45 | 99.2 | 263500 | 376400 |
| 71- 73 | 2-13/16 - 2-7/8 | 438 | 283 | 91 | 73 | 85 | 91 | 49 | 49 | 108 | 285000 | 407000 |
| 75- 76 | 2-15/16 - 3 | 457 | 296 | 95 | 76 | 88 | 95 | 51 | 55 | 121 | 308200 | 440200 |
| 78- 79 | 3-1/16 - 3-1/8 | 476 | 308 | 99 | 79 | 92 | 99 | 53 | 63 | 139 | 332100 | 474500 |
| 81- 83 | 3-3/16 - 3-1/4 | 495 | 320 | 103 | 83 | 96 | 103 | 55 | 73 | 161 | 360400 | 514800 |
| 84- 86 | 3-5/16 - 3-3/8 | 514 | 333 | 107 | 86 | 99 | 107 | 57 | 80 | 176 | 384400 | 549100 |
| 87- 89 | 3-7/16 - 3-1/2 | 533 | 345 | 111 | 89 | 103 | 111 | 60 | 93 | 205 | 409000 | 584300 |
| 90- 92 | 3-9/16 - 3-5/8 | 553 | 357 | 115 | 92 | 107 | 115 | 62 | 97.6 | 215 | 434800 | 621200 |
| 94- 95 | 3-11/16 - 3-3/4 | 572 | 370 | 119 | 95 | 111 | 119 | 64 | 116.2 | 256 | 462300 | 660100 |
| 97- 98 | 3-13/16 - 3-7/8 | 591 | 382 | 128 | 98 | 114 | 123 | 66 | 123 | 271 | 490000 | 700000 |
| 100-102 | 3-15/16 - 4 | 610 | 394 | 132 | 102 | 118 | 127 | 68 | 131 | 289 | 522100 | 746000 |
| 105 | 4 1/8 | 629 | 419 | 147 | 105 | 127 | 132 | 70 | 175 | 386 | 550000 | 785000 |
| 111 | 4 3/8 | 667 | 456 | 167 | 111 | 138 | 140 | 75 | 208 | 459 | 607000 | 867200 |
| 114 | 4 1/2 | 686 | 480 | 190 | 114 | 147 | 144 | 77 | 227 | 500 | 637300 | 910900 |
For more information, please feel free to contact us.
