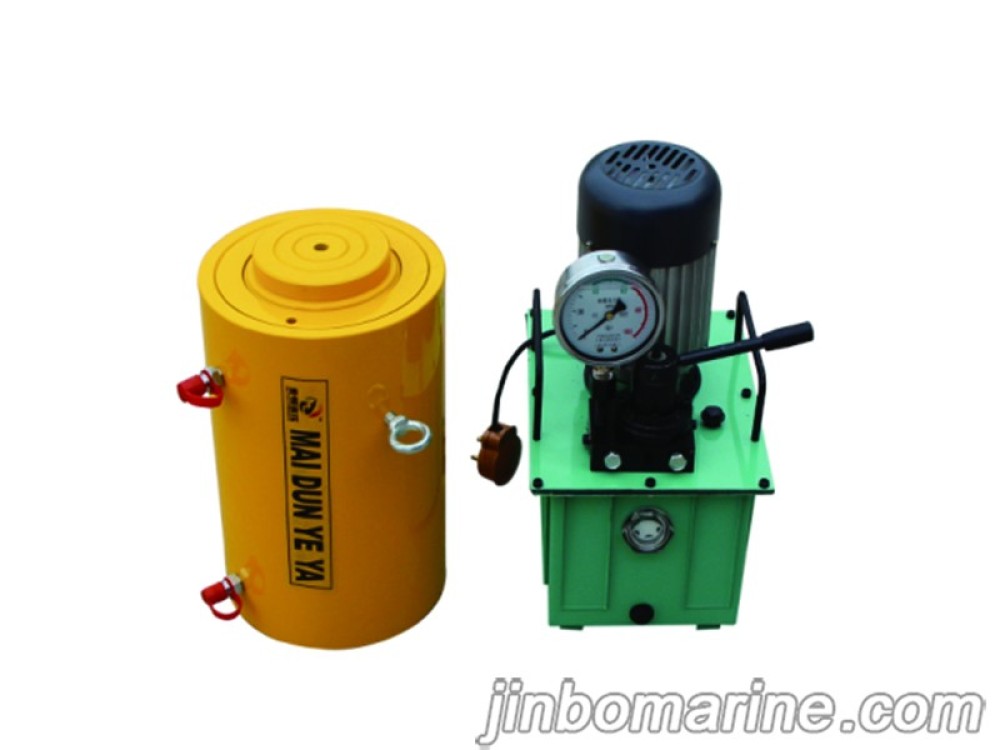

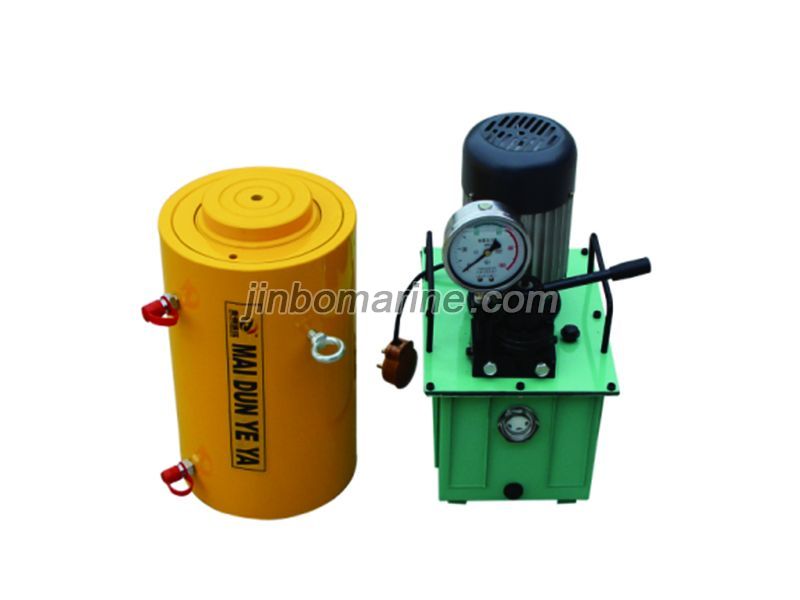

Double Acting Jack
Product features:
The double-acting jacks (double-acting jacks) produced by our company. especially in large-scale projects,are easy-to-operate control and hydraulic jacks. They are designed with safety pressure-retaining devices and built-in relief valves to prevent overloading to protect the jacks for safe operation. The connection of the device adopts high-pressure hose and threaded joint connection,which is fast to use and overcomes the shortcomings of oil leakage of fast traditional joints.It is mainly used for equipment installation in electric power,construction,machinery manufacturing,mining,railway bridges,shipbuilding and other industries. Lifting and dismantling work.
| Model | T Capacity | mm Stroke | mm Height | mm Max Height | mm Diameter | Base Mounting Holes | ||||||
| mm Bolt distribution circle diameter | thread | mm thread depth | ||||||||||
| RR-1010 | 10（89） | 254 | 409 | 663 | 73 | - | - | - | ||||
| RR-1012 | 305 | 457 | 762 | 73 | - | - | - | |||||
| RR-308 | 30（267） | 210 | 387 | 596 | 102 | - | - | - | ||||
| RR-3014 | 368 | 549 | 917 | 102 | - | - | - | |||||
| RR-506 | 50（444） | 156 | 331 | 487 | 127 | - | - | - | ||||
| RR-5013 | 334 | 509 | 843 | 127 | - | - | - | |||||
| RR-5020 | 511 | 733 | 1244 | 127 | 76 | 1/2" -13 | 25 | |||||
| RR-156 | 75（667） | 156 | 347 | 503 | 146 | - | - | - | ||||
| RR-7513 | 334 | 525 | 858 | 146 | - | - | - | |||||
| RR-1006 | 100（889） | 168 | 357 | 525 | 178 | 140 | 3/4” -10 | 25 | ||||
| RR-10013 | 334 | 524 | 857 | 178 | 140 | 3/4” -10 | 25 | |||||
| RR-10018 | 461 | 687 | 1147 | 178 | 140 | 3/4” -10 | 25 | |||||
| RR-1502 | 150（1333） | 57 | 196 | 253 | 203 | - | - | - | ||||
| RR-1506 | 156 | 385 | 541 | 203 | 159 | 3/4” -16 | 25 | |||||
| RR-15013 | 334 | 582 | 915 | 203 | 159 | 3/4” -16 | 25 | |||||
| RR-15032 | 816 | 1116 | 1931 | 203 | - | - | - | |||||
| RR-2006 | 200（1778） | 152 | 430 | 582 | 248 | 127 | 1” -8 | 25 | ||||
| RR-20013 | 330 | 608 | 938 | 248 | 127 | 1″ -8 | 25 | |||||
