Double Nozzles Flame Arrester Breather Valve
We can supply all kinds of Flame Arrester Breather Valve,High quality, Fast Delivery; Customized Service available
Loading product images...

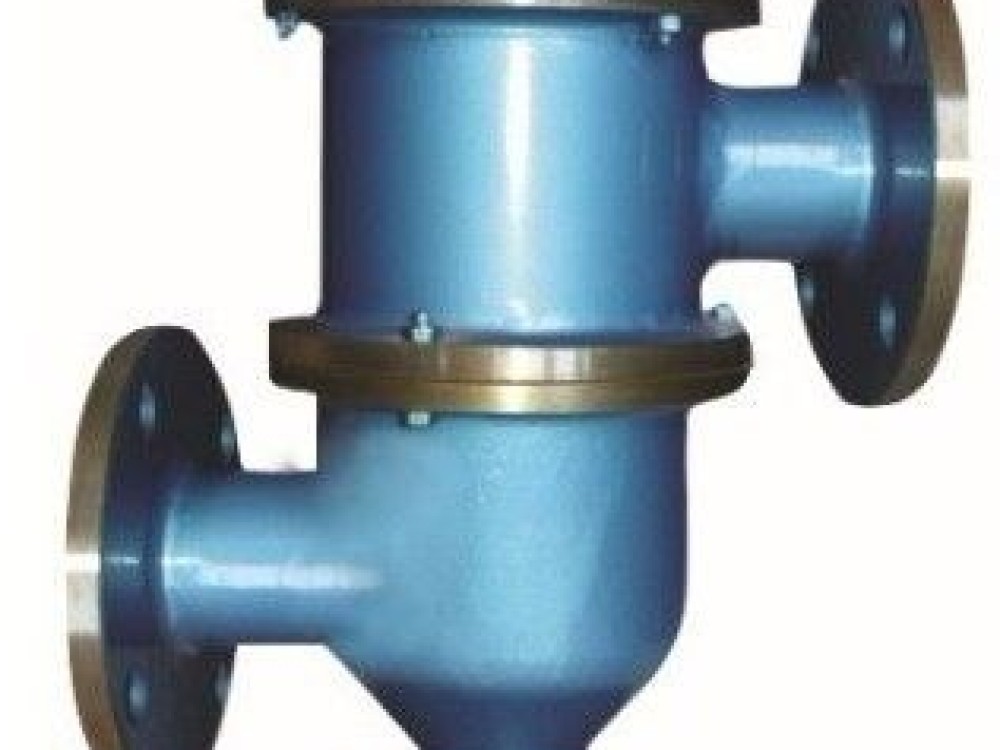

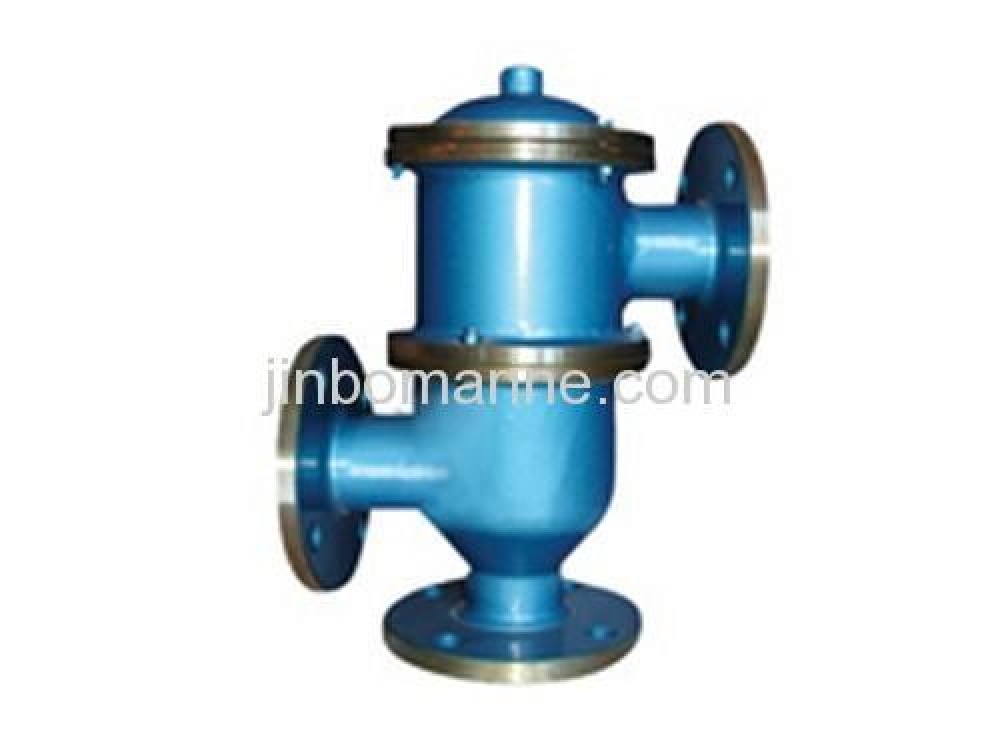

Double Nozzles Flame Arrester Breather Valve
PDF Datasheet
We can supply according to your requirement.
China Double Nozzles Flame Arrester Breather Valve:
Double Nozzles Flame Arrester Breather Valve is fixed installed in the indoor at the top of suction of the tank for fire breathing function, it can automatic adjustment of pressure from inside and outside, which has the feature of reliable performance, stability and in line with the ministry of petroleum industry SY7511-87 standard.
Material
| Component | Body | Stem Guide | Pressure Disk | Pressure Seat | Gasket | Fire Arresting |
| Material | Steel | 304 | 304 | 304 | 304 | 304 |
| Aluminums | 316 | 316 | 316 | 316 | 316 | |
| Casting | 316L | 316L | 316L | 316L | 316L | |
| - | PTFE | PTFE | PTFE | PTFE | PTFE |
Installation Size
| DN | 25 | 32 | 40 | 50 | 80 | 100 | 150 | 200 | 250 | 300 |
| L | 280 | 300 | 320 | 320 | 450 | 450 | 620 | 750 | 850 | 1100 |
| H | 300 | 320 | 350 | 350 | 500 | 500 | 600 | 700 | 820 | 900 |
