Electric Lifeboat Rescue Boat Winch
Product Description: This winch complies with requirements of the SOLAS new regulation,international life-saving appliances regulation MSC.48(66);international life-saving applianc...
Loading product images...

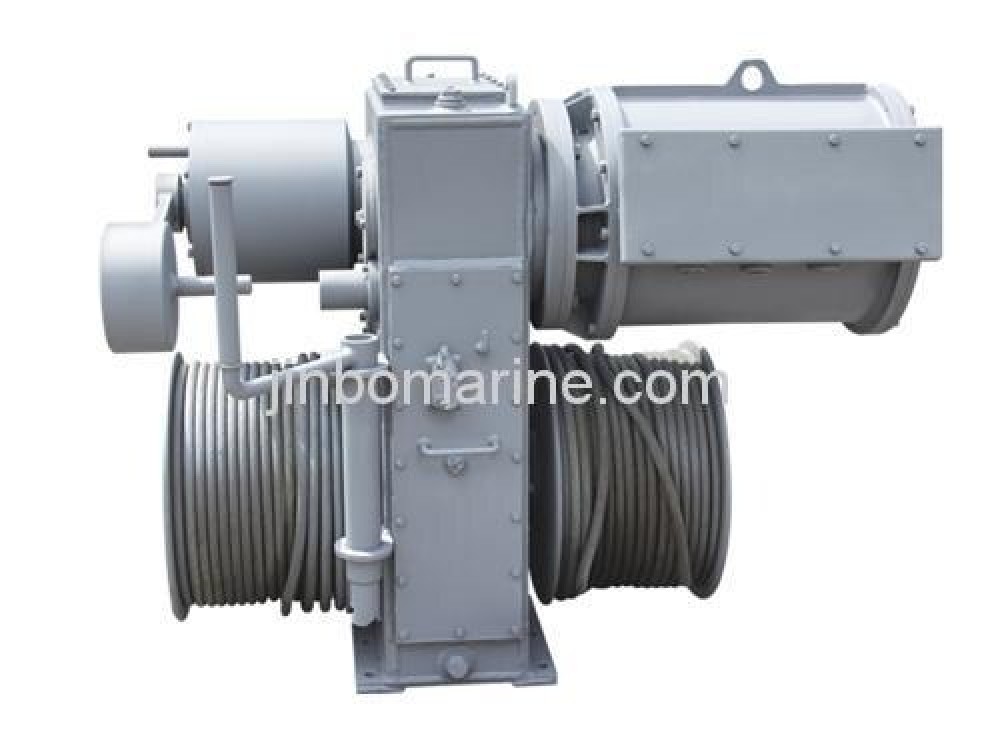

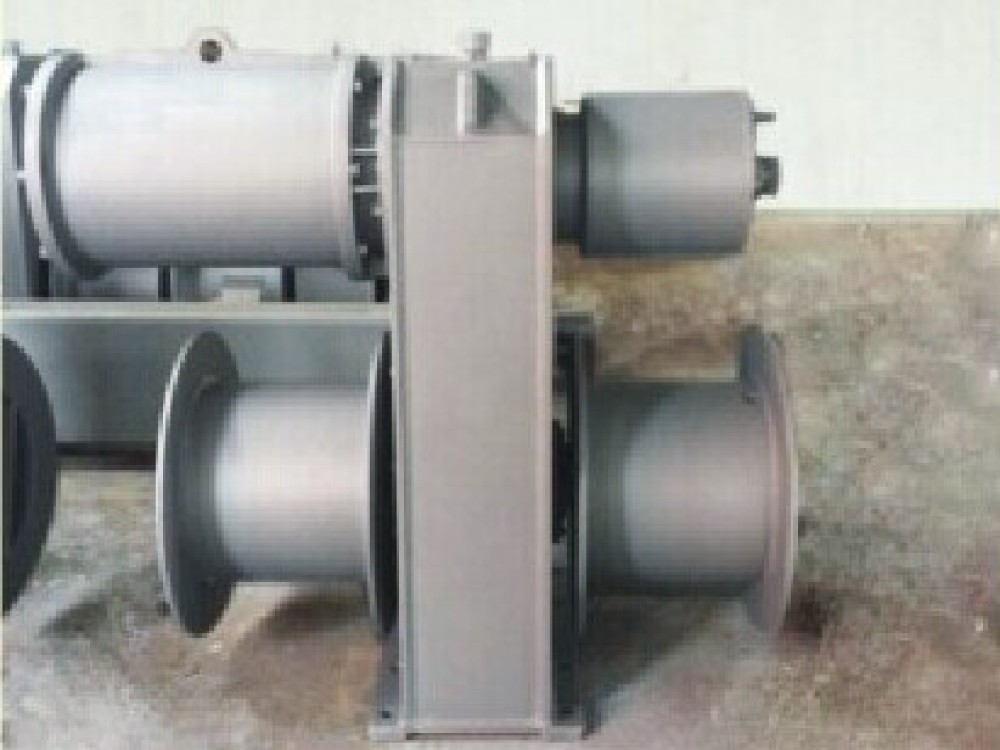

Electric Lifeboat Rescue Boat Winch
PDF Datasheet
We can supply according to your requirement.
Product Description:
This winch complies with requirements of the SOLAS new regulation,international life-saving appliances regulation MSC.48(66);international life-saving appliances test MSC.81(70)and the lifeboat/rescue boat winch technology performance requirements (ISO6067).
Technical Parameter:
| Model | Safety working load(KN) | Hoisting load(KN) | Hoisting rope speed(m/min) | Descending rope speed(m/min) | Motor(kw) |
| D25Z | 25 | 20 | ≥36 | 90~110 | 12.5/12.5 |
| D40Z | 40 | 20 | ≥36/10 | 80~90 | 16.8/16.8 |
| D42Z | 42 | 21 | ≥36/10 | 80~110 | 15 |
| D50Z | 50 | 28 | ≥36/10 | ≤78 | 20/7.5 |
| D63Z | 63 | 30 | ≥36/10 | 90~110 | 22.5/10.6 |
| D100Z | 100 | 55/70 | ≥36/8 | 90~120 | 42/20 |
| PW100Z | 100 | 60/100 | ≥18/8 | 50~60 | 22.5 |
| PW145Z | 145 | 80/138 | ≥18/8 | 40~60 | 30 |
