Type : JBPSKD10
Flow Range: 10L/S (160GPM)
Working Pressure: 6 bar~ 8 bar
Max Reach @ Max Flow: 45M
Max. Range of motion: +/-90°Vert , 350°Rot
Max fog angle ：120°
Turning speed：18 degr...

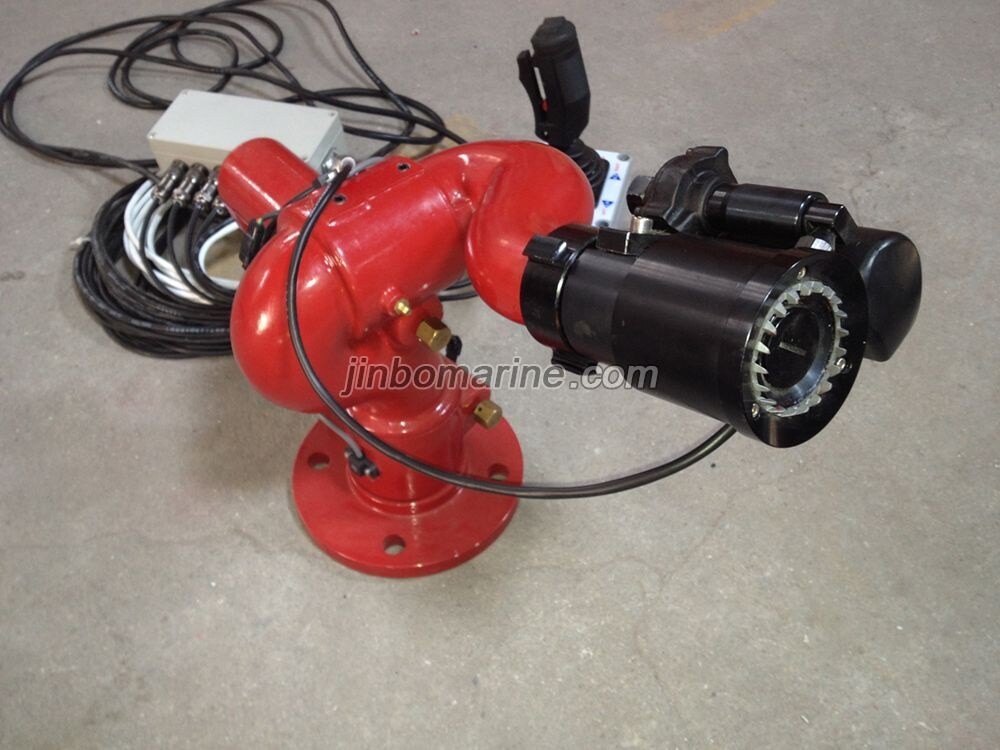

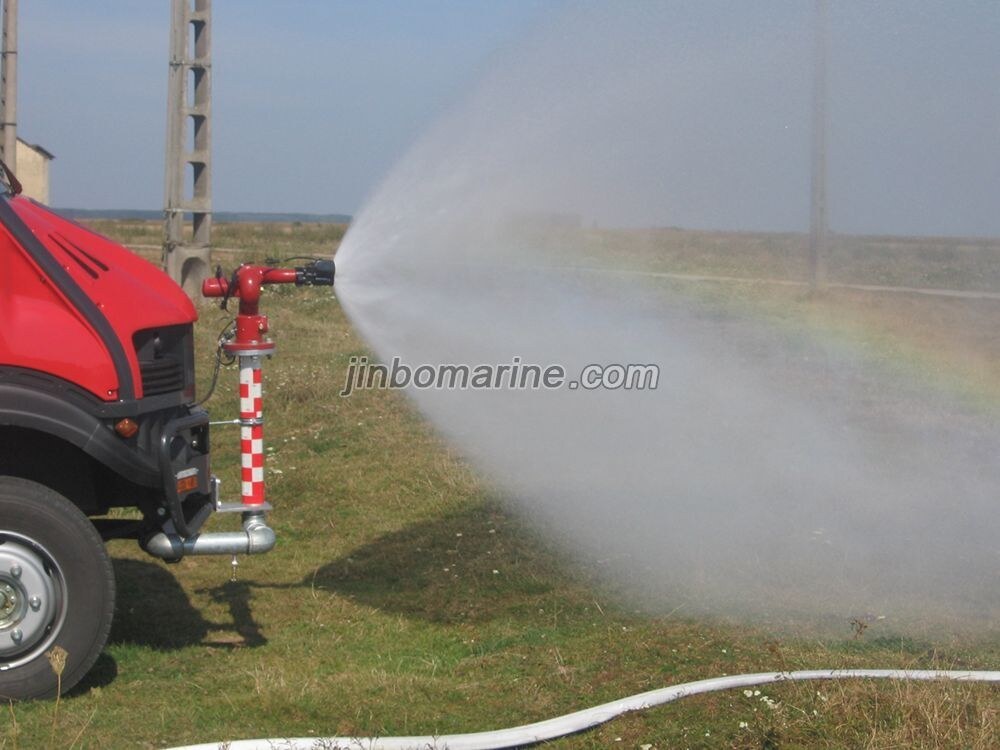

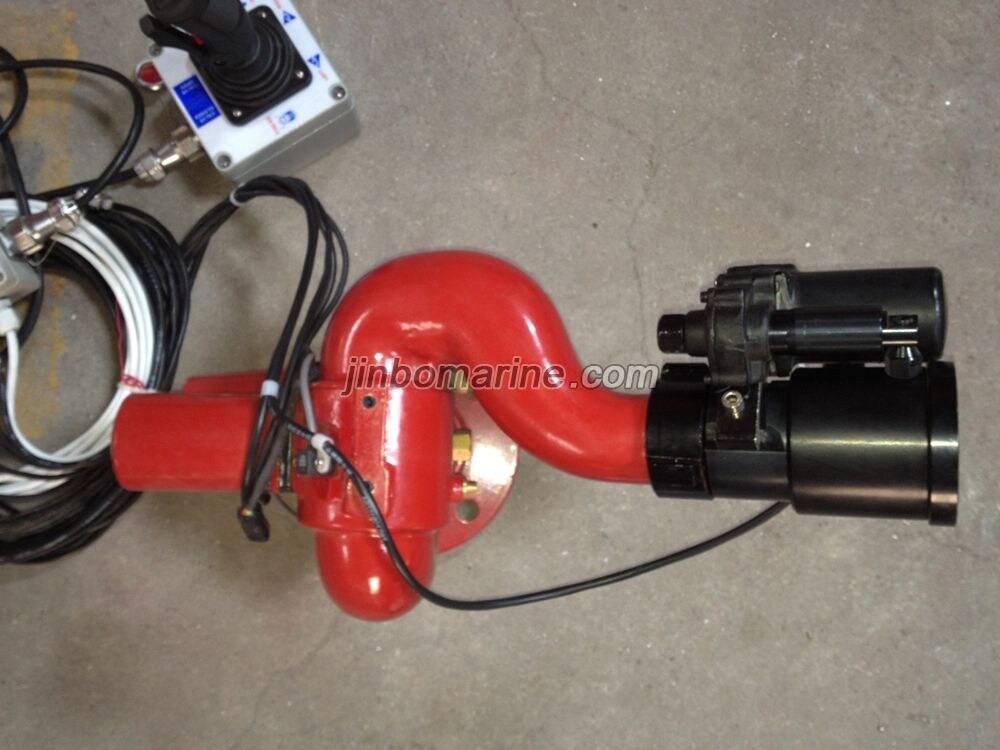

Electric Operated Fire Monitor2 PhotosISO9001 Supplier
Type : JBPSKD10 Flow Range: 10L/S (160GPM) Working Pressure: 6 bar~ 8 bar Max Reach @ Max Flow: 45M Max. Range of motion: +/-90°Vert , 350°Rot Max fog angle ：120° Turning speed：18 degrees/sec Material (body)：304L Stainless Steel, 316L Stainless Steel is also available Material (Gear)：hardcoated anodizing aluminum Material (nozzle)：Aluminum power supply：12/24VDC or 100-230VAC Power Consumption normal/Max：50W/150W Weight incl. nozzle：appox 17KG (gross weight 21KG) Cable Length Monitor- CPU：5m Cable Length Joystick-CPU：5m standard/ other length available Pump requirement for minimum performance：10L/S@ 6 bar Pipe dimensions for installation: 2 Inch Monitor Inlet：2” male BSP or DN65 flange Monitor Outlet：2 inch (50mm) Water way size: 2 inch
PACKAGE: SS MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL (OPTIONAL)
