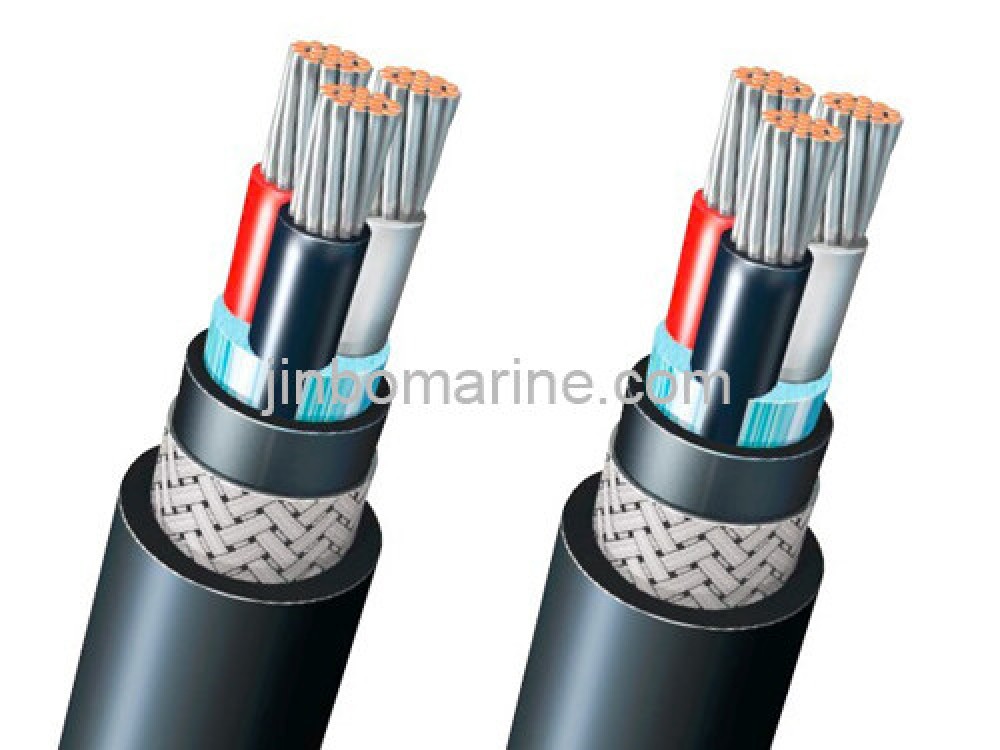

FA-TPYCY Three Core Flame Retardant Marine Power & Light Cable 0.6/1KV
JIS C 3410-1999 Marine Power & Lighting Cable 0.6/1KVTPYThree Core EPR Insulation PVC Sheath Cable 0.6/1KVTPYCThree Core EPR Insulation PVC Sheath Galvanized Steel Wir...
FA-TPYCY Three Core Flame Retardant Marine Power & Light Cable 0.6/1KV
PDF Datasheet
We can supply according to your requirement.
China FA-TPYCY Three Core Flame Retardant Marine Power & Light Cable 0.6/1KV:
JIS C 3410-1999 Marine Power & Lighting Cable
- 0.6/1KVTPYThree Core EPR Insulation PVC Sheath Cable
- 0.6/1KVTPYCThree Core EPR Insulation PVC Sheath Galvanized Steel Wire Braided Cable
- 0.6/1KVTPYCYThree Core EPR Insulation PVC Sheath Galvanized Steel Wire Braided Cable with PVC Covering
- 0.6/1KVFA-TPYThree Core EPR Insulation PVC Sheath Flame Retardant Cable
- 0.6/1KVFA-TPYCThree Core EPR Insulation PVC Sheath Galvanized Steel Wire Braided Flame Retardant Cable
- 0.6/1KVFA-TPYCYThree Core EPR Insulation PVC Sheath Galvanized Steel Wire Braided Flame Retardant Cable with PVC Covering

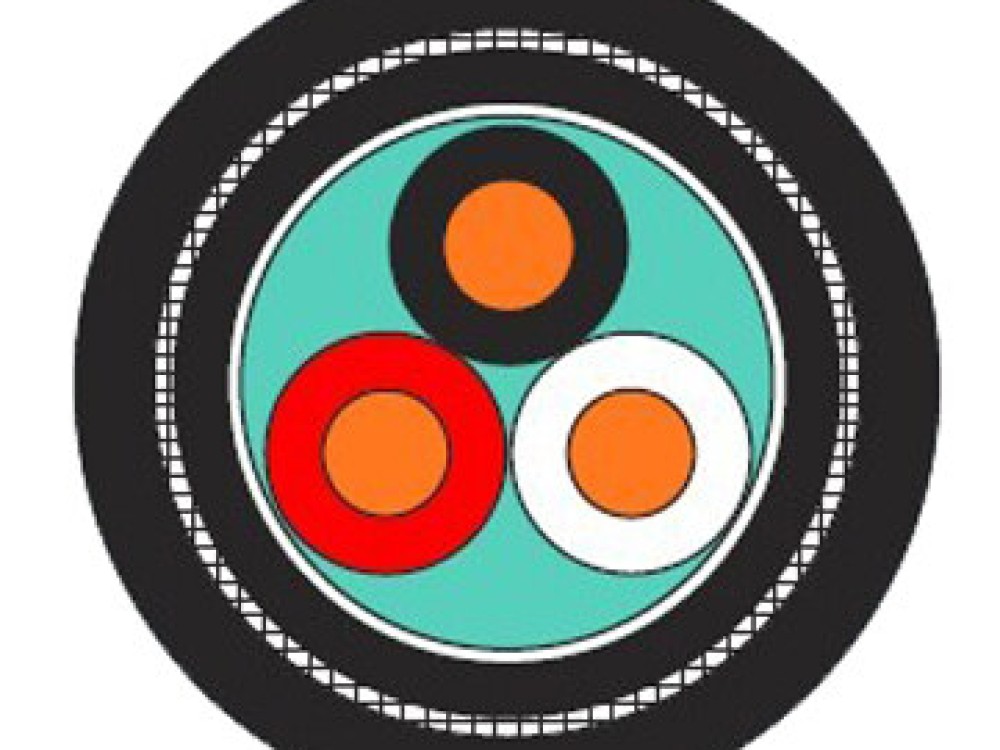

Cable Construction
| Classification | Code | Construction details |
| Conductor | T | Tinned Copper Wire JIS C3410 |
| Insulation | P | EPR as per JIS C 3410 |
| Sheath | Y | PVC as per JIS C 3410 |
| Armor | C | Galvanized steel wire braided |
| CB | Tinned copper wire braided | |
| Paint | The white paint should be painted uniformly | |
| Covering | Y | PVC as per JIS C 3410 |
| Color: Black |
Standards
Design : JIC C 3410(1999)
Flammability: IEC 60332-1 & IEC 60332-3 Category A
Cores & Size
Number of Conductor: 3 Core
Size of Conductor (mm2): 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300
Feature
Halogen-free, Low Smoke, Flame retardant
Maximum Working Voltage and Testing Voltage
| Nominal voltage (V) | Maximum working voltage (V) | (Test voltage) V/min. | |
| a.c | d.c | ||
| 250V | 250V | 450V | 1500/5 |
| 0.6/1 kV | 0.6/1 kV | 0.9/1.5kV | 3500/5 |
Minimum Bending Radius
The bending radius for the installation of cables should be not less than the values given as follows：
| Type of cable | Minimum bending radius |  | |
| Up to 1.8/3kV | Unarmored or unbraided | ||
| D ≤ 25mm | 4XD | ||
| D > 25mm | 6XD | ||
| Metal braid screened or armored | 6XD | ||
| Tape screened | 8XD | ||
| 3.6/6kV | Single core | 12XD | |
| above | 3-core | 9XD | |
Application:
The cable is fixed installation, used for power, lighting and control in most area and open deck area in ship.
