FLL32AG Centrifugal Lubricant Filter
FLL32AG Centrifugal Lubricant Filter Characteristics: 1.the limited pressure value is installed to make the main machine rotate easily 2.the dynamic balance of the rotor is finished,...
FLL32AG Centrifugal Lubricant Filter
We can supply according to your requirement.
FLL32AG Centrifugal Lubricant Filter
Characteristics:
1.the limited pressure value is installed to make the main machine rotate easily
2.the dynamic balance of the rotor is finished,the characteristics is reliable to reduce the moving fittings worn and extend the use-life of the moving fittings 2-3 times.
3.the weight is light and the volume is small,the disassembing is convenient and simple.
4.the dirt chamber can separate 5um foreign grain, the washing period is long and the separating result is good.
| Opening pressure of limited pressure value of the filter | Rotating test | Oil temperature | Rotational speed | Dynamic balance test | |||||
| 2.5±0.3kgf/cm² | 0.7Mpa | 75℃ | 4250r/min | <5g.cm |

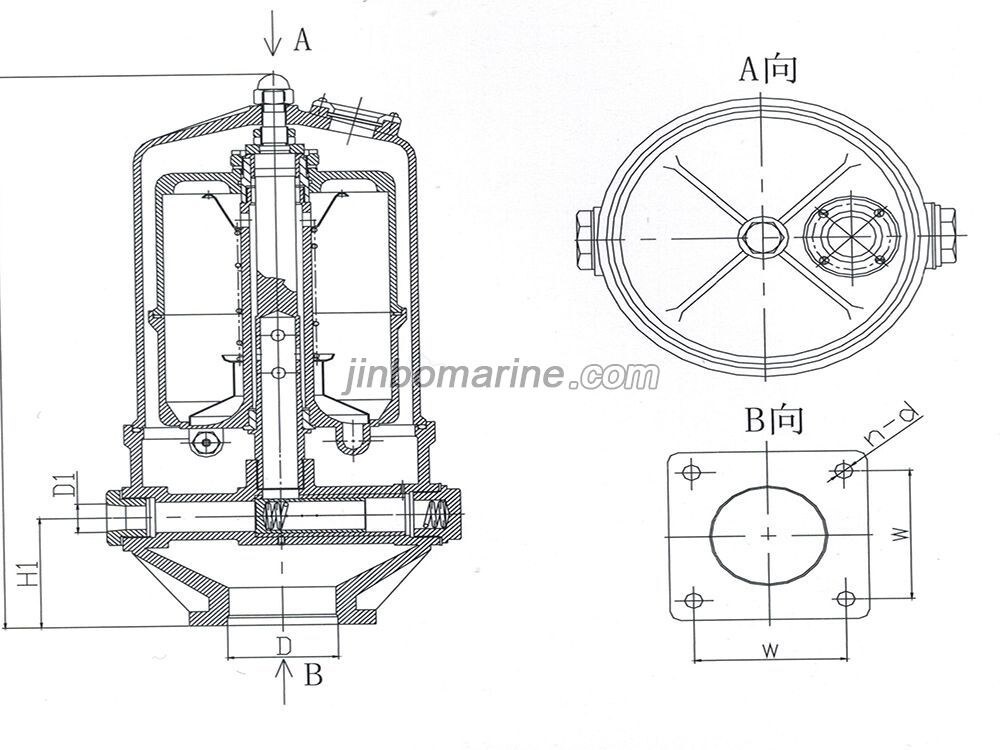

FLL32AG Centrifugal Lubricant Filter Drawing
FLL32AG Centrifugal Lubricant Filter Technical Parameters
| Model | External dimensions(mm) | |||||
| D | D1 | H | H1 | W*W | N-D | |
| FLL32A | 98 | ZG3/4 | 580 | 115 | 126*126 | 4-15 |
| FLL32AG | 98 | 566 | 112 | |||
