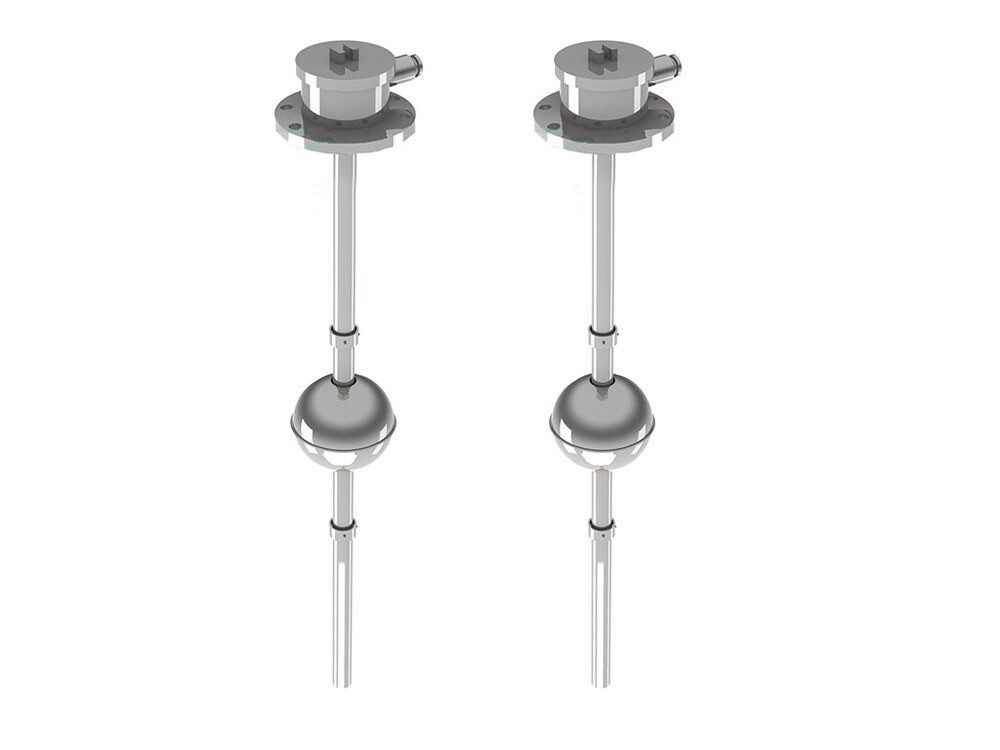

Floating level sensor
Description STK333-AR3 float type/temperature level sensor is widely used in a variety of tank level/temperature remote monitoring. The stainless steel floater with magnetic core of th...
Loading product images...
PDF Datasheet
Description
STK333-AR3 float type/temperature level sensor is widely used in a variety of tank level/temperature remote monitoring.
The stainless steel floater with magnetic core of the float sensor, float with the tank liquid level change, to measure the resistance value of the tube sent out the actual level. Structural features: Fully stainless steel enclosure protection,adapt to all kinds of harsh environments; Lined with protective tube,handing easy; Magnetron reliable,good linearity measure,anti-interference capability,long service life.
The stainless steel floater with magnetic core of the float sensor, float with the tank liquid level change, to measure the resistance value of the tube sent out the actual level. Structural features: Fully stainless steel enclosure protection,adapt to all kinds of harsh environments; Lined with protective tube,handing easy; Magnetron reliable,good linearity measure,anti-interference capability,long service life.
Technical Parameter：
Explosion-Proof：Exia II CT4~6
Working Voltage: 3VDC
Level Measuring Range:0~20M
Level Measuring Accuracy: ± 1 cm
Temperature Measuring Range: -50℃～125℃
Temperature Measuring Accuracy: ± 0.3℃
Working Voltage: 3VDC
Level Measuring Range:0~20M
Level Measuring Accuracy: ± 1 cm
Temperature Measuring Range: -50℃～125℃
Temperature Measuring Accuracy: ± 0.3℃
