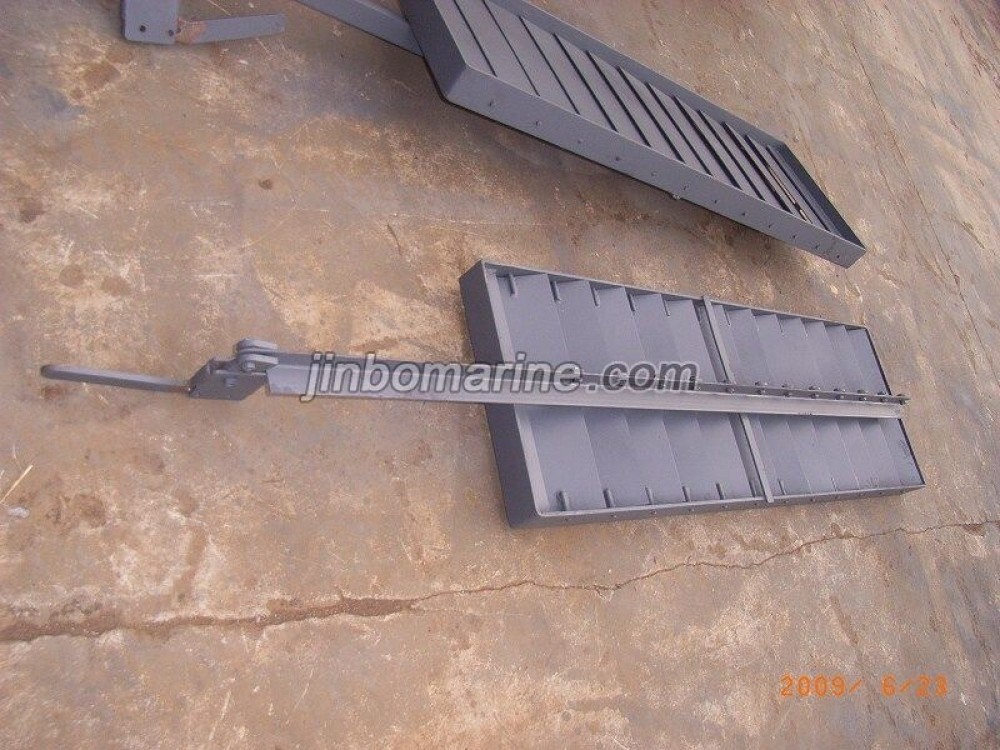

Funnel Closeable Shutter
Funnel Closeable Shutter is suitable for the funnel and spaces of inland ships that are no weathertight requirement. It can be designed as two or three pull rod tpe according to the customer...
Loading product images...
PDF Datasheet
China Funnel Closeable Shutter:
Funnel Closeable Shutter is suitable for the funnel and spaces of inland ships that are no weathertight requirement. It can be designed as two or three pull rod tpe according to the customer's request. It can be manual type, pneumatic type or spring & pneumatic type, worm gear type.
Standard: CB*3132-83
Main Material:
Frame: Steel
Shutter: Steel or Aluminum

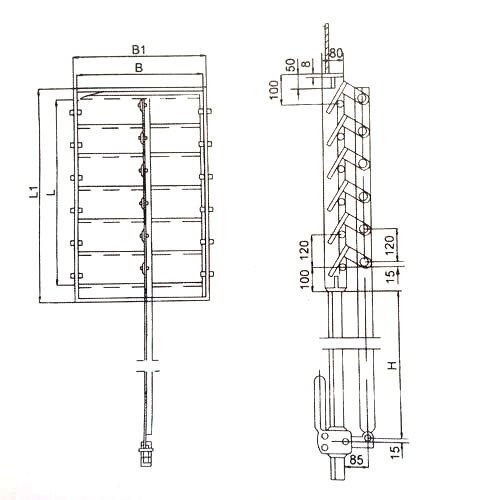

Main Size List(mm):
| Nominal Size | Opening Size | Shutter | Weight | ||
| BxL | B1xL1 | LenghtxWidthxHeight | Quantity | Steel | Aluminum |
| 400x580 | 416x680 | 396x160x4 | 5 | 28.6 | 19.5 |
| 500x460 | 516x560 | 496x160x4 | 4 | 28.3 | 18.9 |
| 500x700 | 516x800 | 6 | 37 | 20.7 | |
| 500x940 | 516x1040 | 8 | 45.6 | 25.3 | |
| 500x1180 | 516x1280 | 10 | 54.2 | 30.8 | |
| 500x1420 | 516x1520 | 12 | 62.9 | 37.2 | |
