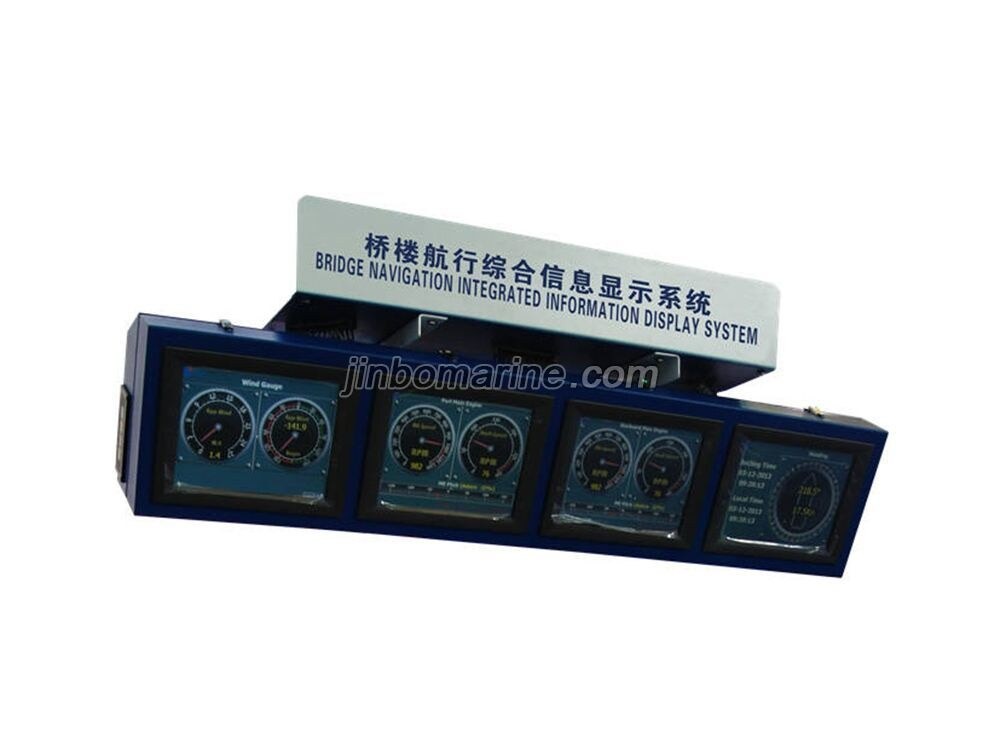

GCE Bridge Navigation Integrated Information Display System

The system adds a comprehensive information display device at the front of the cab, which centrally displays common navigation and driving information such as rudder angle, range, heading, and weather, increasing the observability of information and facilitating the acquisition of information by all cab commanders and operators.

Main navigation information display

a. Speed information;

b. Heading information (inertial navigation, gyrocompass);

c. Voyage information;

d. Magnetic compass heading information;

e. Ocean depth information;

f. Meteorological information (wind direction, wind speed);

g. Time information (two types of time display: Beijing and local).

Function:

It can achieve three modes: day, evening, and night, and can customize stepwise dimming. The device display module can achieve screen switching, and can display the screen of any other monitor by switching the screen format on any monitor. Improved the reliability of the equipment.

Equipment performance indicators:

Data refresh time:≤1s

Power consumption of the entire machine:≤200W
