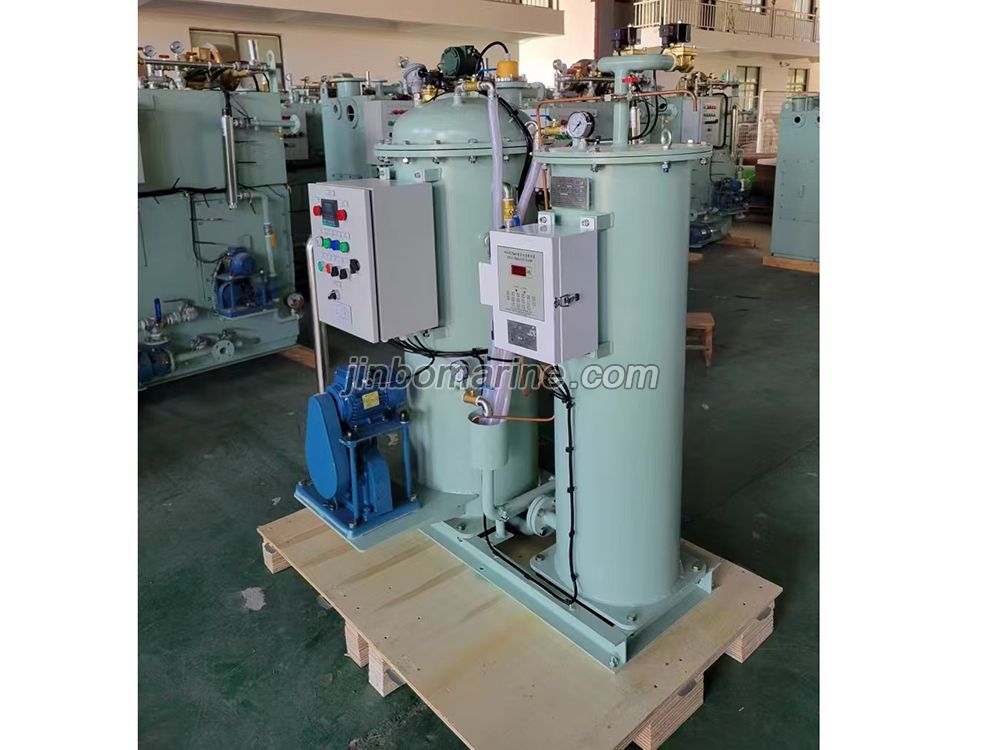

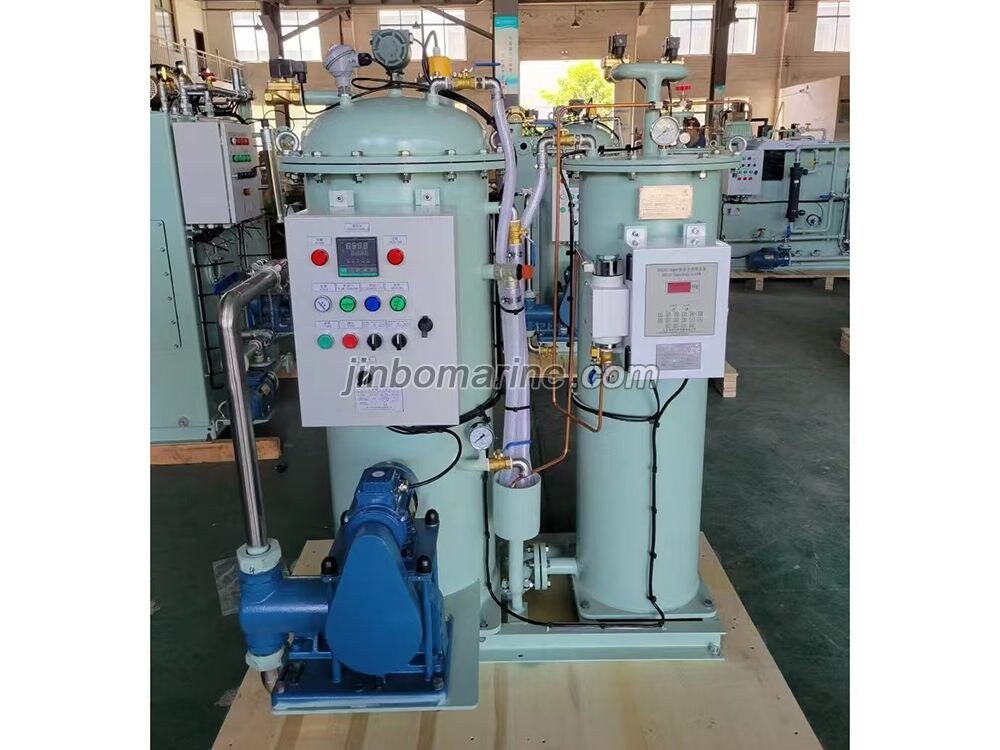

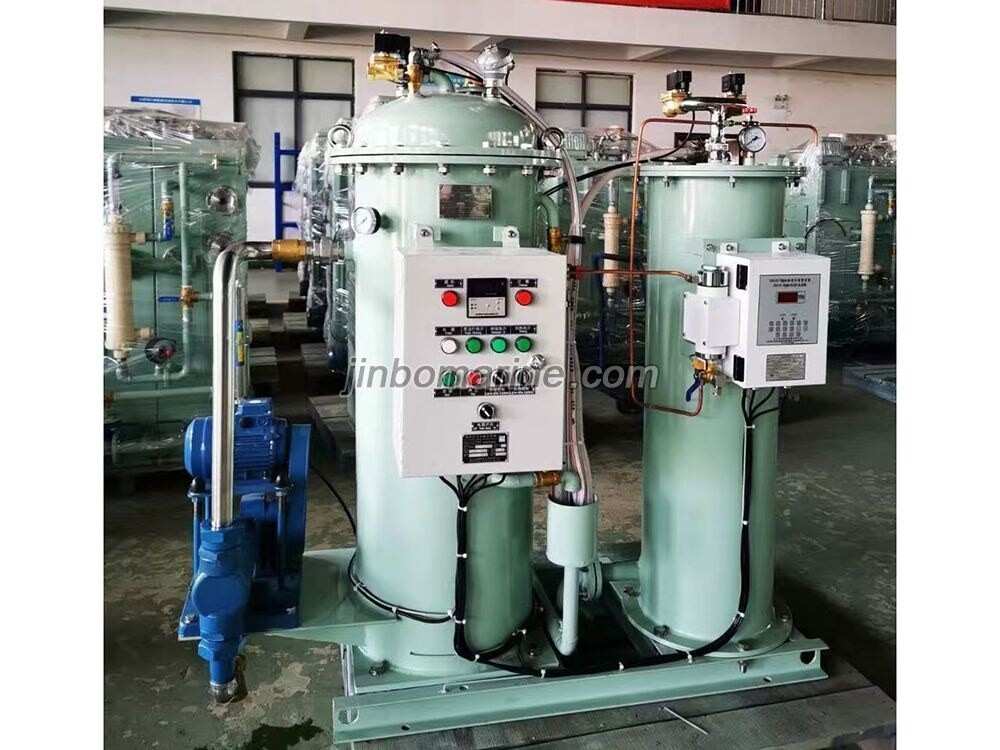

HBN-1.0 15PPM Bilge Separator Oily Water Separator
Description: HBN series 15ppm bilge water separator is to use a gravity separation, a coalescence separation, a separation of coarse filter, a fine filtration separation and a a...
Loading product images...
HBN-1.0 15PPM Bilge Separator Oily Water Separator
PDF Datasheet
We can supply according to your requirement.
Description:
HBN series 15ppm bilge water separator is to use a gravity separation, a coalescence separation, a separation
of coarse filter, a fine filtration separation and a adsorption separation combining method to separate oil from
bilge water.
Techincal data:
| Model | Capacity | Internal Pressure MPa | Piston Pump | Size | Weight | |||||
| m3/h | Normal | Design | H | A | B | C | D | Kg | ||
| HBN-0.1 | 0.1 | 0.07 | 0.3 | DZB-100 0.3MPa 0.1m3/h | 1070 | 590 | 580 | 350 | 480 | 120 |
| HBN-0.25 | 0.25 | 0.07 | 0.3 | DZB-250 0.3MPa 0.25m3/h | 1236 | 709 | 707 | 484 | 695 | 155 |
| HBN-0.5 | 0.5 | 0.07 | 0.3 | DZB-500 0.3MPa 0.5m3/h | 1400 | 1010 | 910 | 950 | 810 | 185 |
| HBN-1.0 | 1 | 0.07 | 0.3 | DZB-1000 0.3MPa 1.0m3/h | - | - | - | - | - | 330 |
| HBN-2.0 | 2 | 0.12 | 0.3 | DZB-2000 0.3MPa 2.0m3/h | - | - | - | - | - | 417 |
| Model | Szie | |||||||||
| H | h1 | h2 | A | a1 | a2 | a3 | B | b1 | b2 | |
| HBN-1.0 | 1390 | 1250 | 830 | 1146 | 488 | 358 | 150 | 554 | 511 | 385 |
| HBN-2.0 | 1475 | 1350 | 930 | 1204 | 545 | 358 | 150 | 618 | 575 | 385 |
Capacity:
| Model | capacity m³/h | Internal pressure MPa | Piston pump | |
| Normal | design | |||
| HBN-0.1 | 0.1 | 0.07 | 0.3 | DZB-1000.3Mpa 55min-1 |
| HBN-0.25 | 0.25 | 0.07 | 0.3 | DZB-2500.3Mpa 56min-1 |
| HBN-0.5 | 0.5 | 0.07 | 0.3 | DZB-5000.3Mpa 50min-1 |
| HBN-1.0 | 1.0 | 0.07 | 0.3 | DZB-10000.3Mpa 50min-1 |
| HBN-2.0 | 2.0 | 0.12 | 0.3 | DZB-20000.3Mpa 70min-1 |
