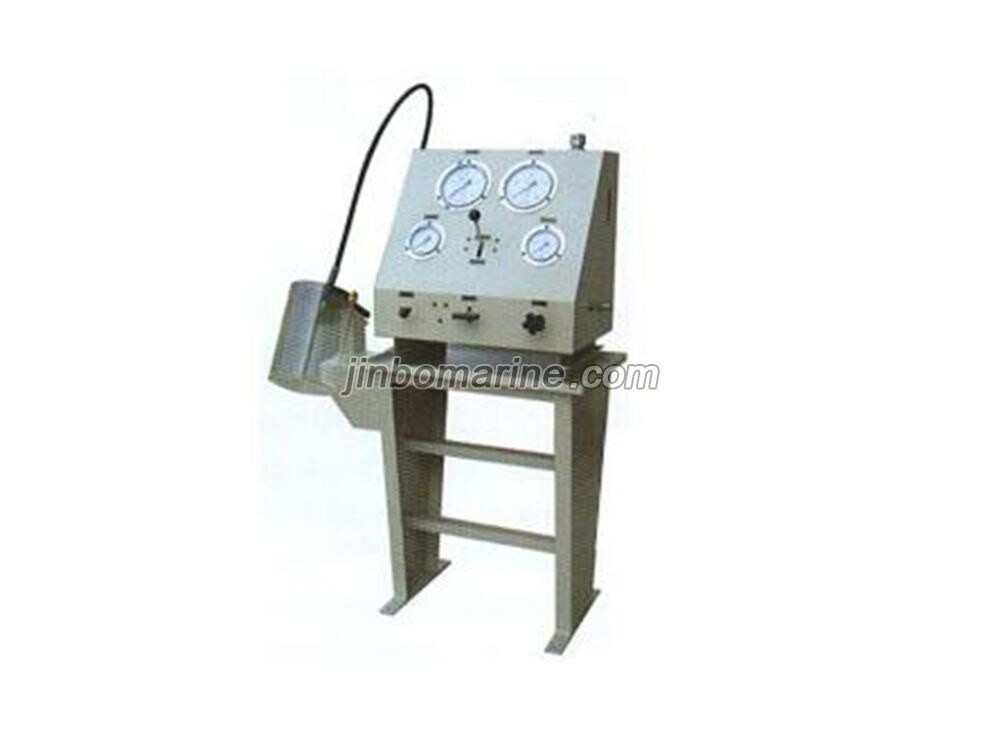

HDP-1100-1 Marine High Pressure Injector Test Bench
PDF Datasheet
We can supply according to your requirement.
HDP-1100-1 Marine High Pressure Injector Test Bench:
HDP-1100-1 series fuel injection nozzle test bench is applicable to the injection direction, high-pressure injection, oil valve opening pressure, O-ring seal, low-pressure slide valve and other tests of fuel injection nozzles of large and medium-sized marine diesel engines. It has the advantages of high pressure, large injection volume, stable performance, safety, reliability and strong adaptability. It is a necessary test equipment for large and medium-sized marine diesel engines.
| Name | Unit | Model |
| Injection pressure | Mpa | 80 |
| Pneumatic pressure | Mpa | 0.7 |
| Injection quantity | Cm3 | ≥20 |
| Pump operating speed | Time/Min | 30 |
| Air consumption | L/Min | 4.4 |
| Tank capacity | L | 6 |
| Net weight | Kg | 90 |
| Overall dimension | mm | 525×710×1530 |
