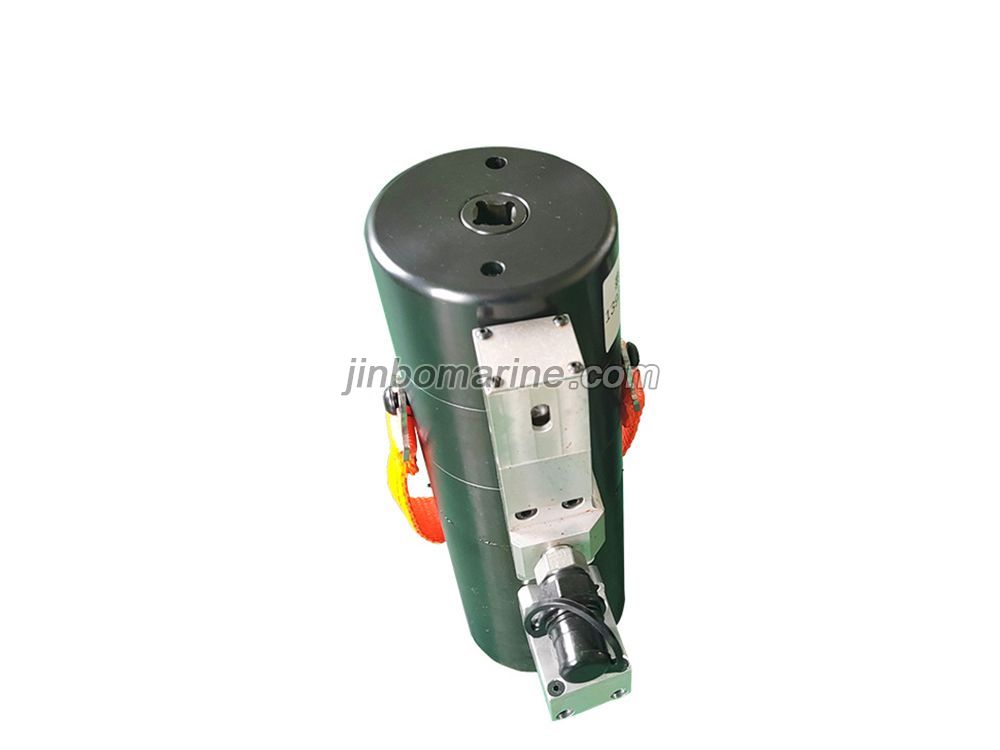

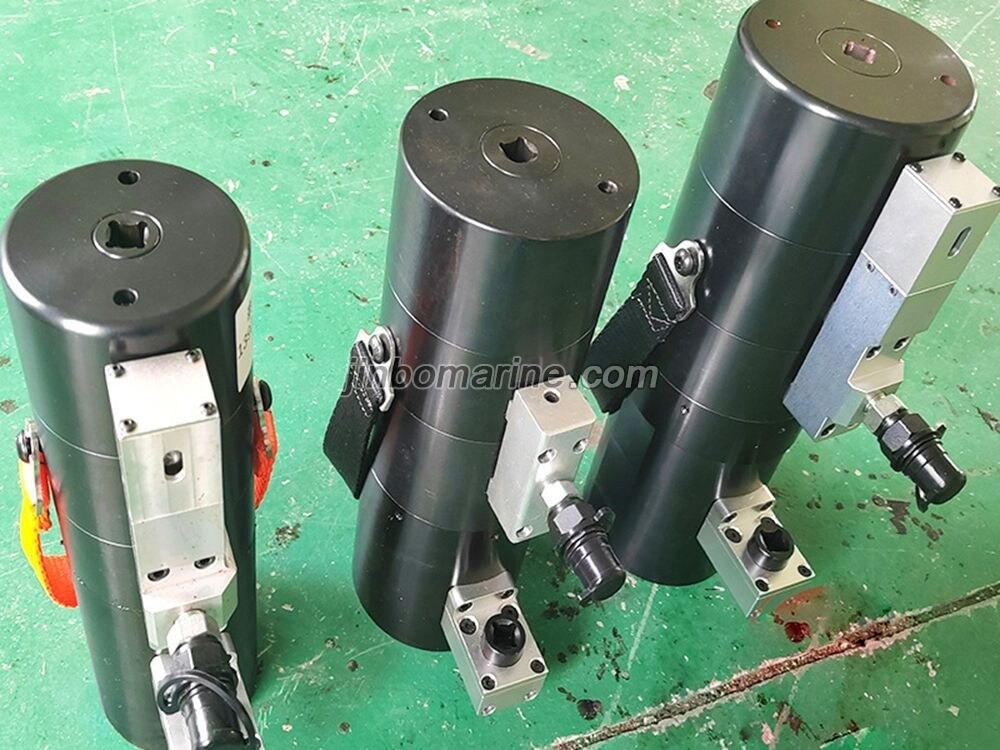

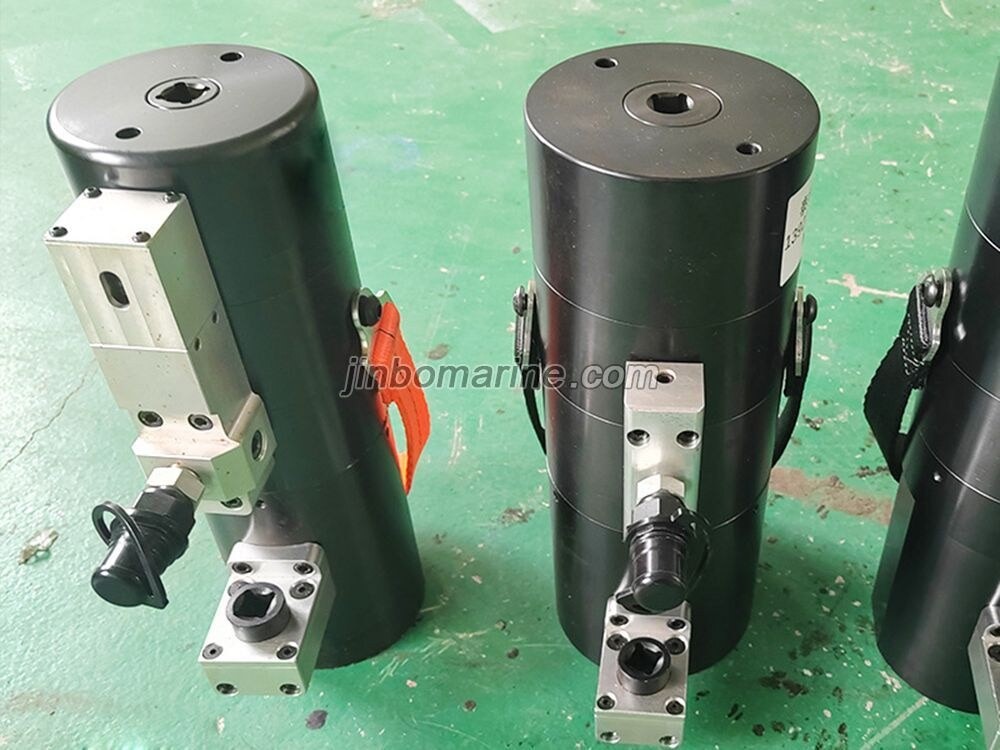

HLC060 Series Hydraulic Jack
The piston automatic reset design is suitable for compact area operations. Suitable for stretching single specification bolts with high accuracy.

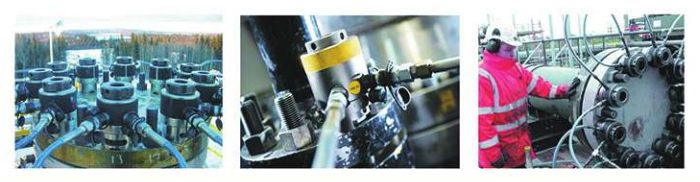

Can be equipped with manual pumps, pneumatic hydraulic pumps, and multiple stretchers can be used simultaneously. The standard working pressure is 150Mpa.
Techincal data:
| Model | Thread specification(mm)(mm) | Maximum tensile force (KN) | Dimension ( m ) | ||||||
| M | Inch | A | B | C | D | E | F | ||
| HLC020 | M20 | 51/64 | 200 | 42 | 52 | 65 | 19 | 20 | 94 |
| HLC024 | M24 | 1 | 290 | 49 | 60 | 78 | 22 | 24 | 102 |
| HLC027 | M27 | 1-1/8 | 380 | 55 | 67 | 86 | 25 | 27 | 108 |
| HLC030 | M30 | 1-1/8 | 460 | 61 | 74 | 97 | 27 | 30 | 106 |
| HLC033 | M33 | 1-1/4 | 570 | 66 | 81 | 107 | 29 | 33 | 114 |
| HLC036 | M36 | 1-3/8 | 670 | 71 | 90 | 117 | 32 | 0 00 | 118 |
| HLC039 | M39 | 1-1/2 | 800 | 77 | 96 | 127 | 34 | 39 | 125 |
| HLC042 | M42 | 1-5/8 | 920 | 83 | 102 | 137 | 37 | 42 | 134 |
| HLC045 | M45 | 1-3/4 | 1080 | 89 | 110 | 148 | 39 | 45 | 135 |
| HLC043 | M48 | 1-7/8 | 1220 | 94 | 116 | 158 | 42 | 48 | 140 |
| HLC052 | M52 | 2 | 1450 | 102 | 128 | 169 | 46 | 52 | 151 |
| HLC056 | M56 | 2-1/4 | 1680 | 106 | 135 | 176 | 49 | 56 | 158 |
| HLC060 | M60 | 2-3/8 | 2010 | 114 | 142 | 199 | 52 | 60 | 167 |
| HLC064 | M64 | 2~1/2 | 2210 | 120 | 151 | 211 | 55 | 64 | 172 |
