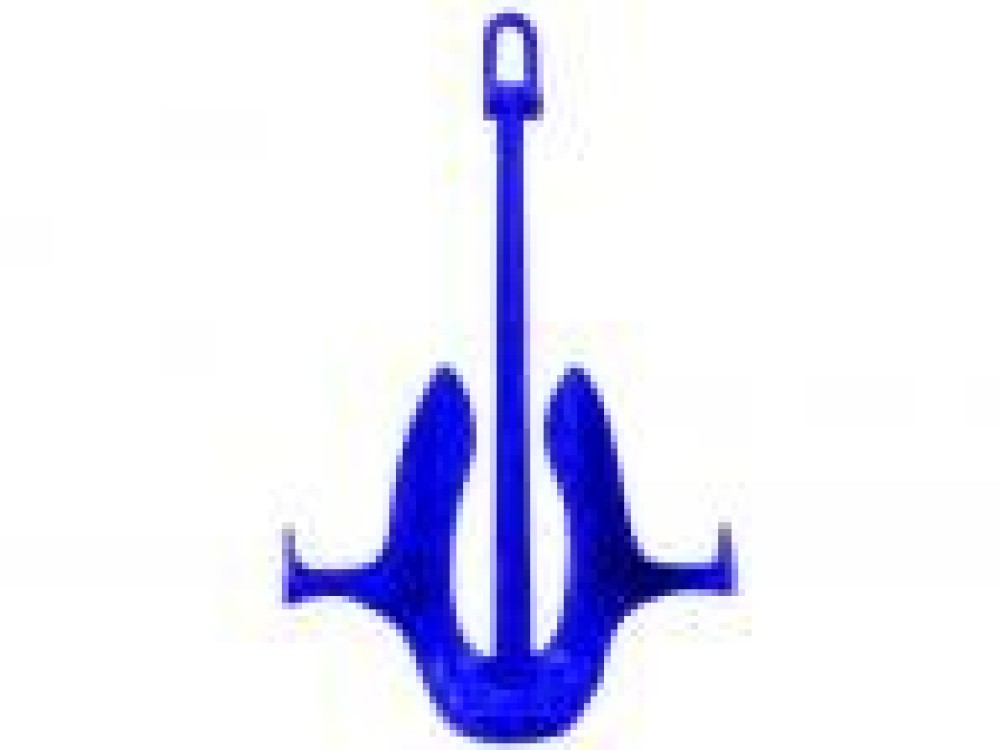

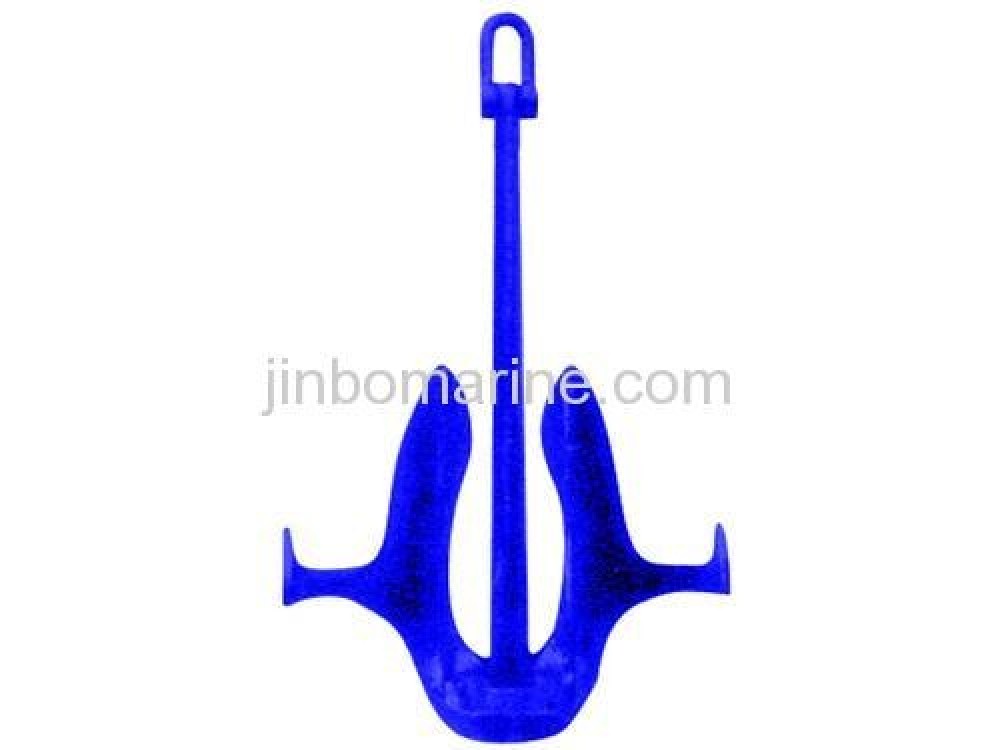

High Holding Power Matrosov Anchor
Matrosov Anchor is one of High Holding Power Anchor, used for marine and offshore filed, the material is high grade casting steel, UT and MT Test and other testing assure high quality and go...
High Holding Power Matrosov Anchor
We can supply according to your requirement.
China High Holding Power Matrosov Anchor:
Matrosov Anchor is one of High Holding Power Anchor, used for marine and offshore filed, the material is high grade casting steel, UT and MT Test and other testing assure high quality and good stability.
Material: Casting Steel
Weight: 25KGS-1500kgs
Main Table:
| Nominal Weight (KG) | Size(mm) | |||||
| A | B | C | D | E | @ | |
| 25 | 130 | 570 | 690 | 385 | 214 | 28-30 |
| 35 | 148 | 620 | 760 | 420 | 230 | 30-32 |
| 50 | 170 | 680 | 840 | 480 | 250 | 30-32 |
| 75 | 190 | 770 | 950 | 540 | 270 | 30-32 |
| 100 | 210 | 830 | 1060 | 590 | 290 | 30-32 |
| 125 | 226 | 870 | 1130 | 630 | 310 | 30-32 |
| 150 | 242 | 910 | 1190 | 670 | 330 | 30-32 |
| 200 | 270 | 980 | 1300 | 740 | 370 | 30-32 |
| 250 | 294 | 1040 | 1380 | 800 | 400 | 33-37 |
| 300 | 312 | 1090 | 1480 | 850 | 430 | 33-37 |
| 400 | 342 | 1190 | 1630 | 930 | 480 | 33-37 |
| 500 | 366 | 1280 | 1750 | 1000 | 520 | 33-37 |
| 650 | 400 | 1385 | 1910 | 1090 | 565 | 33-37 |
| 750 | 418 | 1450 | 2000 | 1140 | 590 | 33-37 |
| 1000 | 452 | 1570 | 2170 | 1240 | 630 | 33-37 |
| 1250 | 488 | 1660 | 2280 | 1300 | 660 | 33-37 |
| 1500 | 515 | 1715 | 2370 | 1350 | 675 | 33-37 |
For more details, please send us inquiry.
