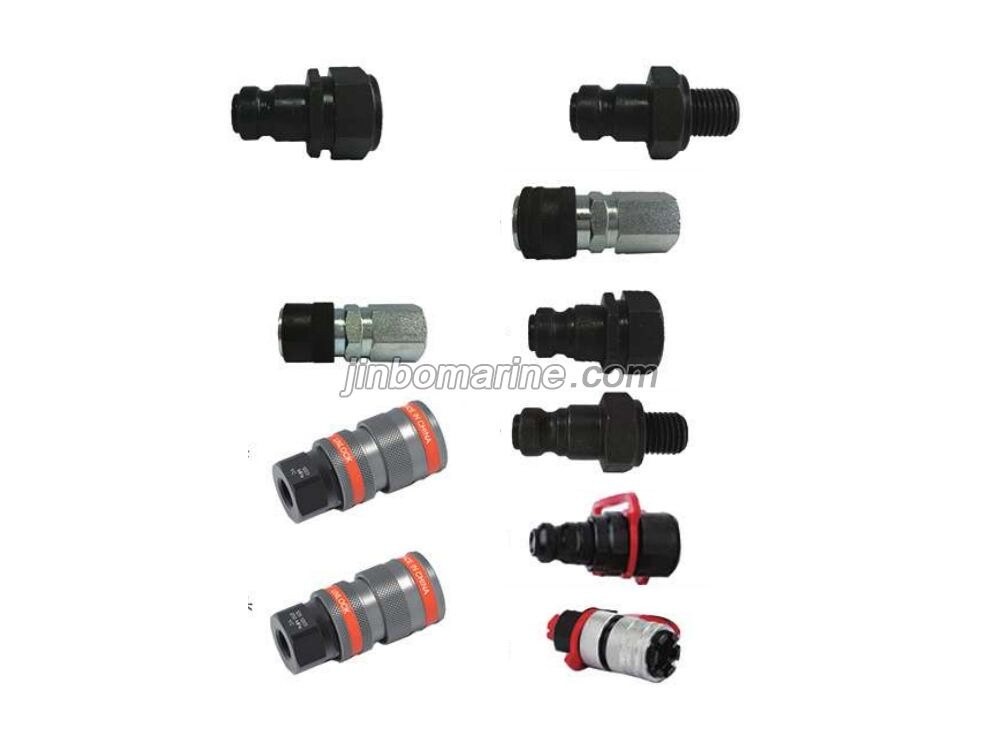

High Pressure Hydraulic Series Quick Coupler Products
Fast Coupling Technical parameter Texture of material : Galvanizing of hardened steel Maximum working pressure: 150MPa Minimum blasting pressure:300MPa Nominal ...
Loading product images...
High Pressure Hydraulic Series Quick Coupler Products
PDF Datasheet
We can supply according to your requirement.
Fast Coupling
Technical parameter
Texture of material : Galvanizing of hardened steel
Maximum working pressure: 150MPa
Minimum blasting pressure:300MPa
Nominal diameter:2.5mm
Temperature:-30℃-+100℃
Flow rate at pressure drop 0.4Mpa: 5.3L/min
116 Series Female Quick Coupler
Female connector Model Connection size Recommended torque(Nm) Internal thread YC1161201 Gl/8” 40-50 116 internal thread female joint YC1161202 G1/4" 40-50 YC1161222(auto-lock) G1/4” 40-50 YC1161230(right angle) G1/4” 50-60 YC1161246(Stainless steel valve, steel nickel plated body, self-locking) G1/4” 40-50 YC1161402 NPT1/4” 50-60 YC1161422 NPT1/4" 50-60

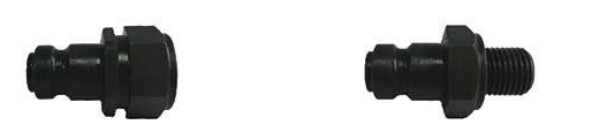

116 Series Female & Male Nipple
| Female connector | Model | Connection size | Recommended torque(Nm) |
| Internal thread | YC1161201 | Gl/8” | 40-50 |
| 116 internal thread female joint | YC1161202 | G1/4" | 40-50 |
| YC1161222(auto-lock) | G1/4” | 40-50 | |
| YC1161230(right angle) | G1/4” | 50-60 | |
| YC1161246(Stainless steel valve, steel nickel plated body, self-locking) | G1/4” | 40-50 | |
| YC1161402 | NPT1/4” | 50-60 | |
| YC1161422 | NPT1/4" | 50-60 |
Female connector Model Connection size Recommended torque(Nm) Internal thread YC1166201 G1/8” 40-50 116 internal thread female joint YC1166202 G1/4” 40-50 YC1166241(Stainless steel valve, steel nickel plated body) G1/4” 40-50 YC1166420 NPT1/4” 30-40 External thread (without valve) 116 internal
Threaded male joint YC1165252 G1/4” 80-90
200Mpa Series Quick Coupler
| Female connector | Model | Connection size | Recommended torque(Nm) |
| Internal thread | YC1166201 | G1/8” | 40-50 |
| 116 internal thread female joint | YC1166202 | G1/4” | 40-50 |
| YC1166241(Stainless steel valve, steel nickel plated body) | G1/4” | 40-50 | |
| YC1166420 | NPT1/4” | 30-40 | |
| External thread (without valve) 116 internal Threaded male joint | YC1165252 | G1/4” | 80-90 |
Connection size Recommended torque(Nm) YC1251202 125Internal thread Female connector
(Working pressure200Mpa) G1/4” 40-50 YC1256202125Internal thread male connector
(Working pressure200Mpa) G1/4” 40-50 YC1255252125 Out thread Female connector
(Working pressure200Mpa) G1/4” 100-110 YC 1356505
135Internal thread male connector
(Working pressure300Mpa) M16*1.5 40-50 YC 1351505
135Internal thread Female connector
(Working pressure200Mpa) M16*1.5 40-50 YC1161203116 Internal thread Female connector G1/4" 40-50 YC125120312 Internal thread Female connector G1/4" 40-50

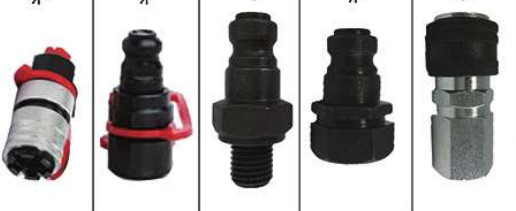

Quick Coupler With Lock
| Connection size | Recommended torque(Nm) | |
| YC1251202 125Internal thread Female connector (Working pressure200Mpa) | G1/4” | 40-50 |
| YC1256202125Internal thread male connector (Working pressure200Mpa) | G1/4” | 40-50 |
| YC1255252125 Out thread Female connector (Working pressure200Mpa) | G1/4” | 100-110 |
| YC 1356505 135Internal thread male connector (Working pressure300Mpa) | M16*1.5 | 40-50 |
| YC 1351505 135Internal thread Female connector (Working pressure200Mpa) | M16*1.5 | 40-50 |
| YC1161203116 Internal thread Female connector | G1/4" | 40-50 |
| YC125120312 Internal thread Female connector | G1/4" | 40-50 |
