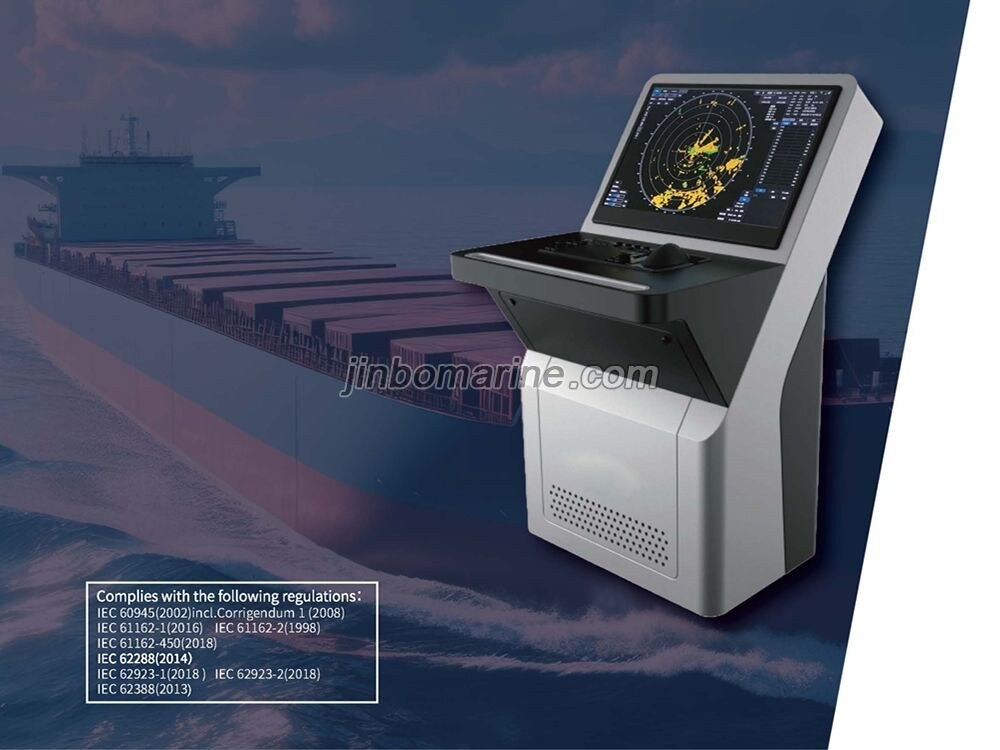

HighlanderFully Automatic Working Radar 900-900C

Dynamic automatic tuning ensures that the radar functions at its optimal level in target detection.

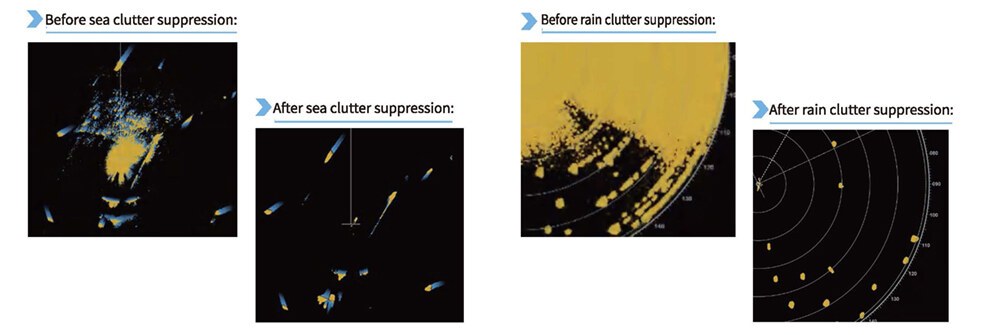

Automatic Clutter Suppression:

Automatic Sea & Rain Clutter Suppression allows the radar performance to automatically adapt to different sea states, vessel types and installation limitations.

Radar targets are automatically acquired when ever they are within the defined zone. Up to 10,000 targets are automatically tracked.

Automatic Collision Avoidance Alarm:

Collision Avoidance Alarm is automatically triggered whenever dangerous targets are detected via preset collision avoidanceCPA/TCPA parameters.

Automatically assist in collision avoidance decision-making suggestions:

The automatic assisted collision avoidance svstem uses the static and dynamic data of the local ship and the target ship provideby the magnetron radar, combined with the continuous calculation of the collision avoidance algorithm, to provide reasonablecollision avoidance suggestions for the crew. Crews can quickly evaluate and take corresponding actions based on algorithmsuggestions to improve decision-making efficiency and navigation safety.

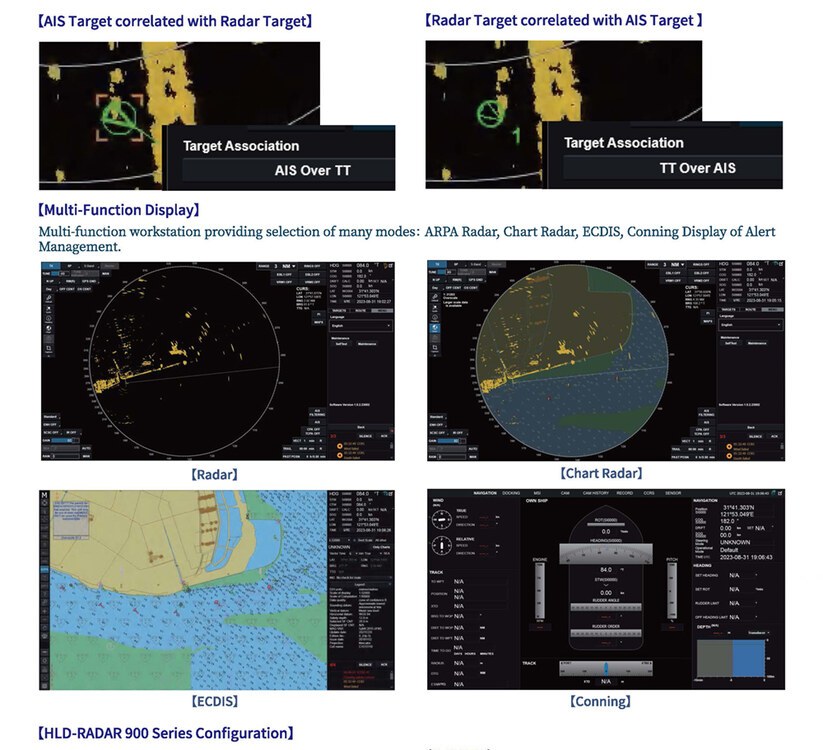

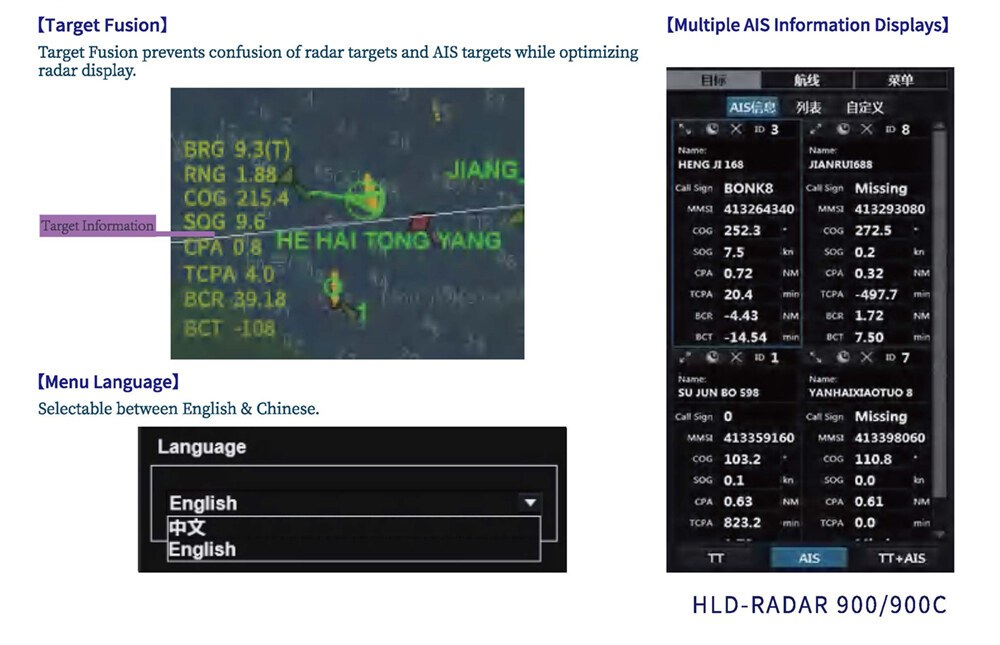

Target Fusion prevents confusion of radar targets and AIS targets while optimizingradar display.

Multi-Function Display:

Multi-function workstation providing selection of many modes: ARPA Radar, Chart Radar, ECDIS, Conning Display of Alert management.

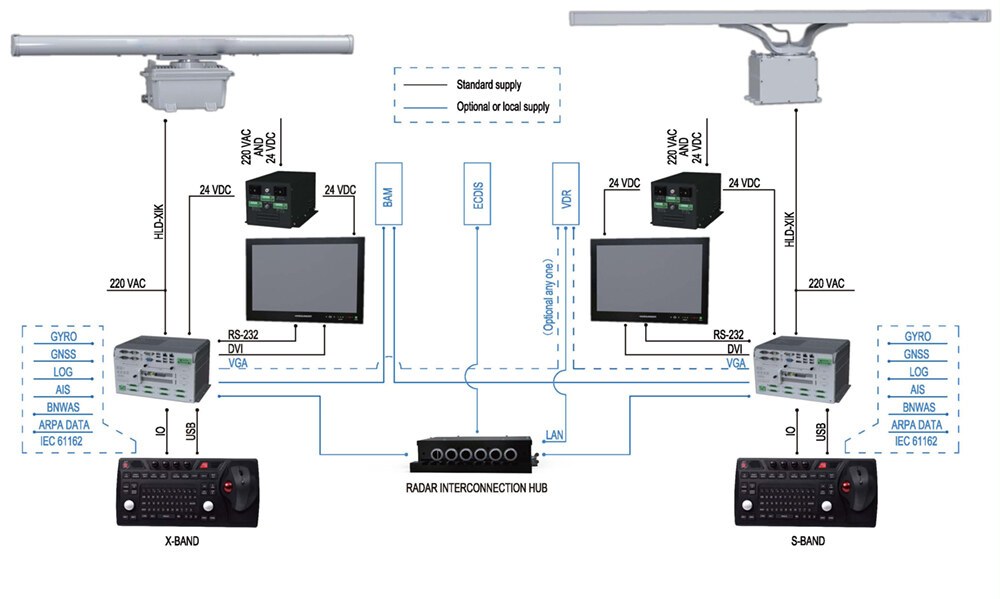

HLD-RADAR 900 Series Configuration

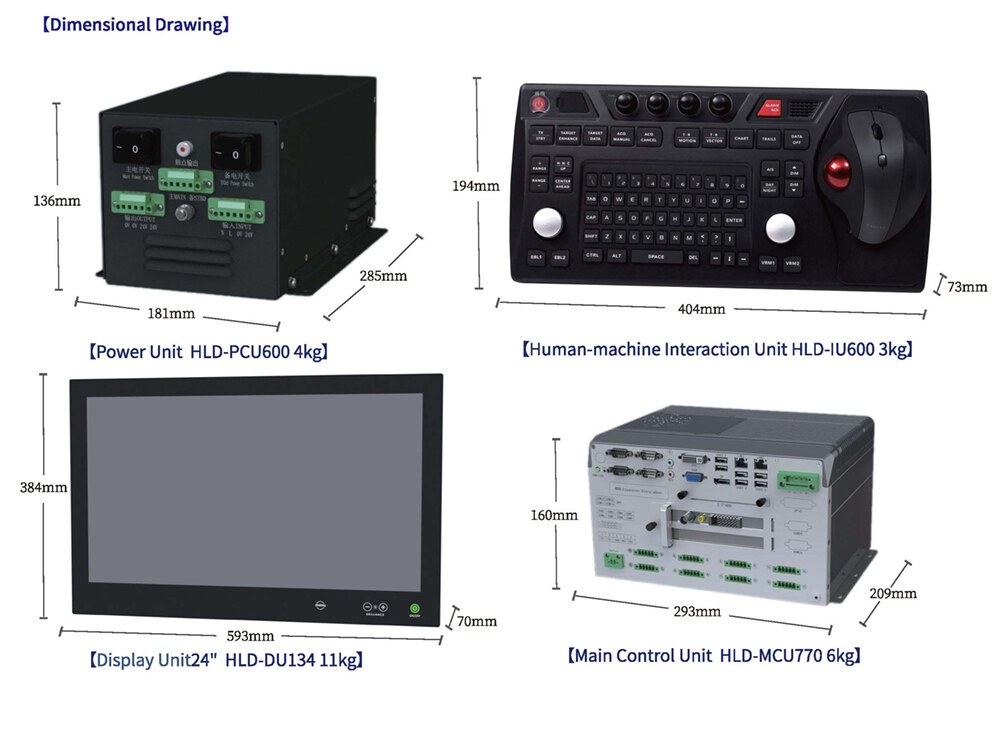

Antenna HLD-AT104/106/108

Transceiver Unit HLD-TU110/125

Display unit HLD-DU162/163/164/165

HLD-DU133/134/135/138

Human Interface Unit HLD-IU600

Main Control Unit HLD-MCU770

Power Conversion Unit HLD-PCU600

Optional

ECDIS key HLD-LIC900

Console

Tabletop stand

De-icing device

Antenna HLD-AT112

Transceiver Unit HLD-TU130

Display unit HLD-DU162/163/164/165HLD-DU133/134/135/138

Human Interface Unit HLD-IU600

Main Control Unit HLD-MCU770

Power Conversion Unit HLD-PCU600

Optional

ECDIS key HLD-LIC900

Console

Tabletop stand

De-icing device
