Marine Equipment
I30-160 Marine Ironing Machine
I30-160 Marine Ironing Machine 1. This machine is specially designed for ironing flat and undamaged linen 2. Handy processor 3. With emergency switch on the front, it is safe to use ...
Loading product images...
I30-160 Marine Ironing Machine
PDF Datasheet
We can supply according to your requirement.

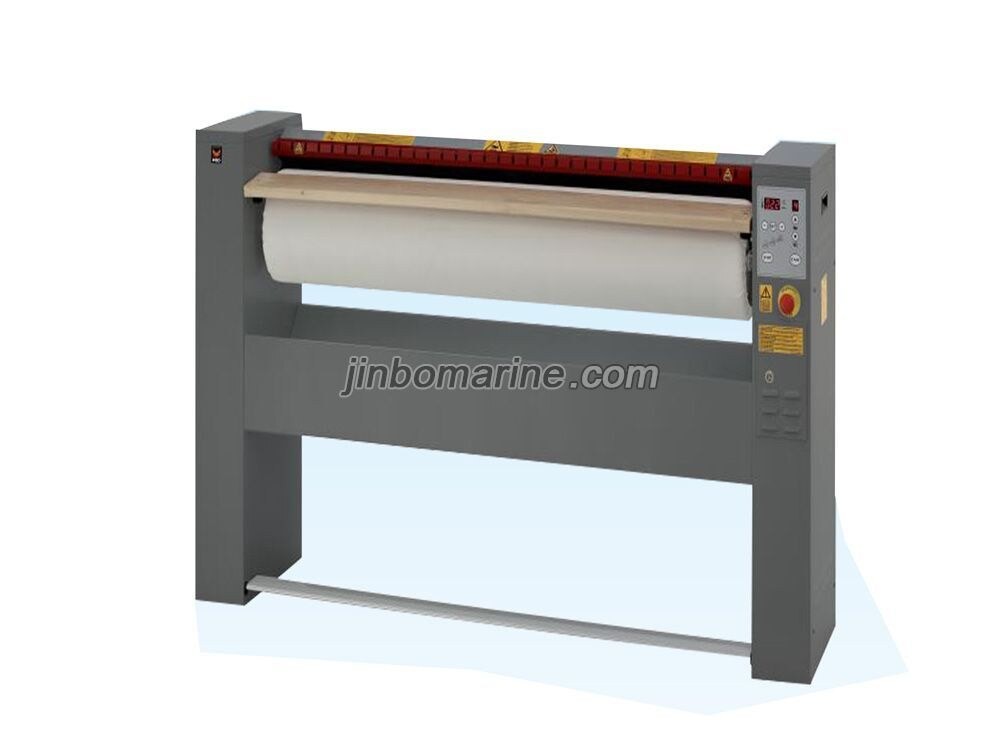

I30-160 Marine Ironing Machine
1. This machine is specially designed for ironing flat and undamaged linen
2. Handy processor
3. With emergency switch on the front, it is safe to use and operate
4. Durable NOMEX ironing tape
5. Automatic cooling
6. Europe's most advanced technology and process manufacturing
7. Frequency conversion control motor
8. The base form is suitable for installation and fixation on ships

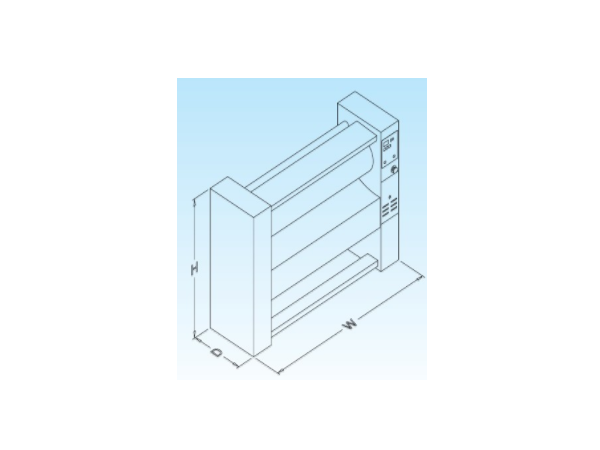

I30-160 Marine Ironing Machine Drawing
I30-160 Marine Ironing Machine Parameters
| Model | I25-100 | I25-120 | I25-140 | I30-160 | I30-200 |
| Length | 1000mm | 1200mm | 1400mm | 1600mm | 2000mm |
| Voltage | 380/415V-3PH-50Hz 440/480V-3PH-60Hz | ||||
| Power(kw) | 5 | 6 | 7 | 13.2 | 16.8 |
| Size(mm) | 1400x420x1005 | 1600x420x1005 | 1800x420x1005 | 2200x500x1100 | 2600x500x1100 |
| Weight(kg) | 100 | 118 | 126 | 262 | 294 |
