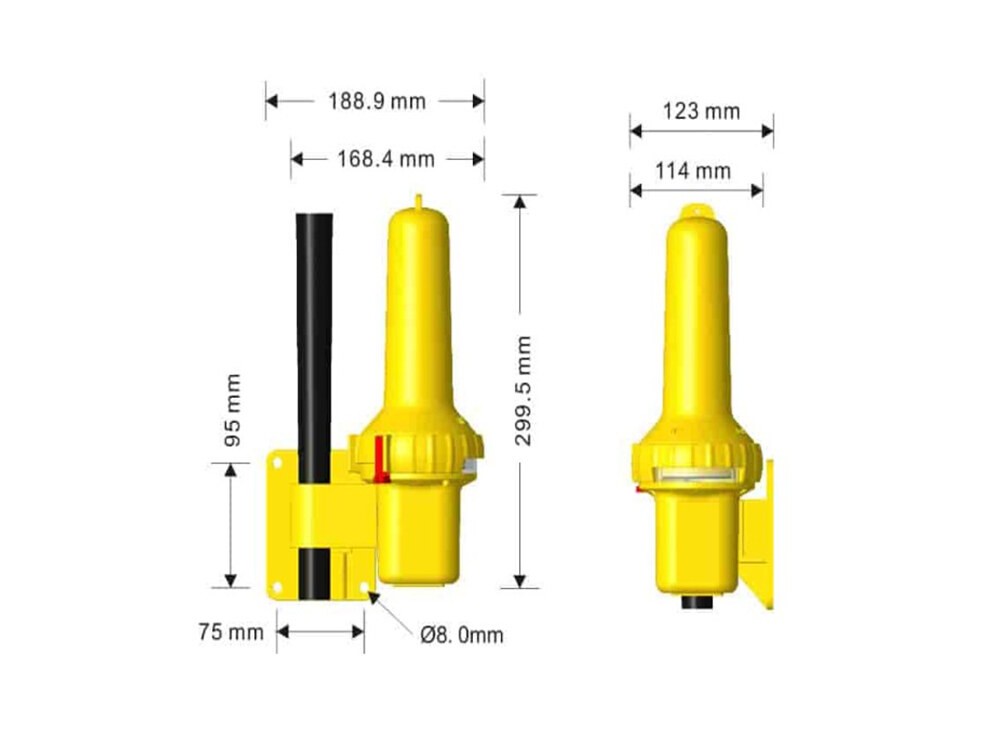

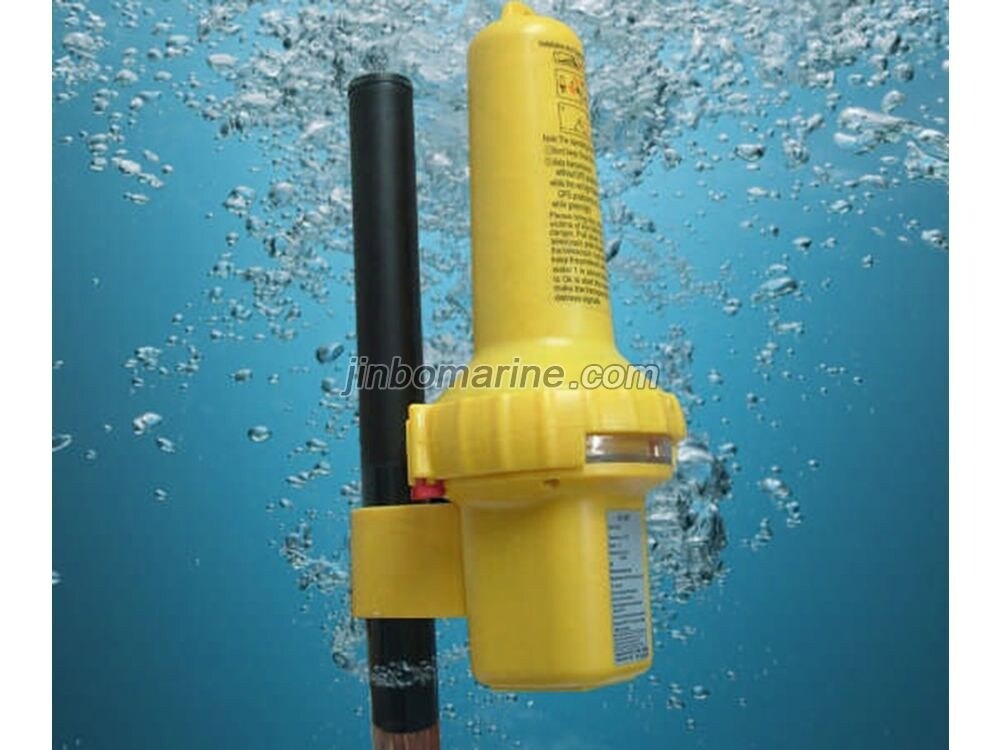

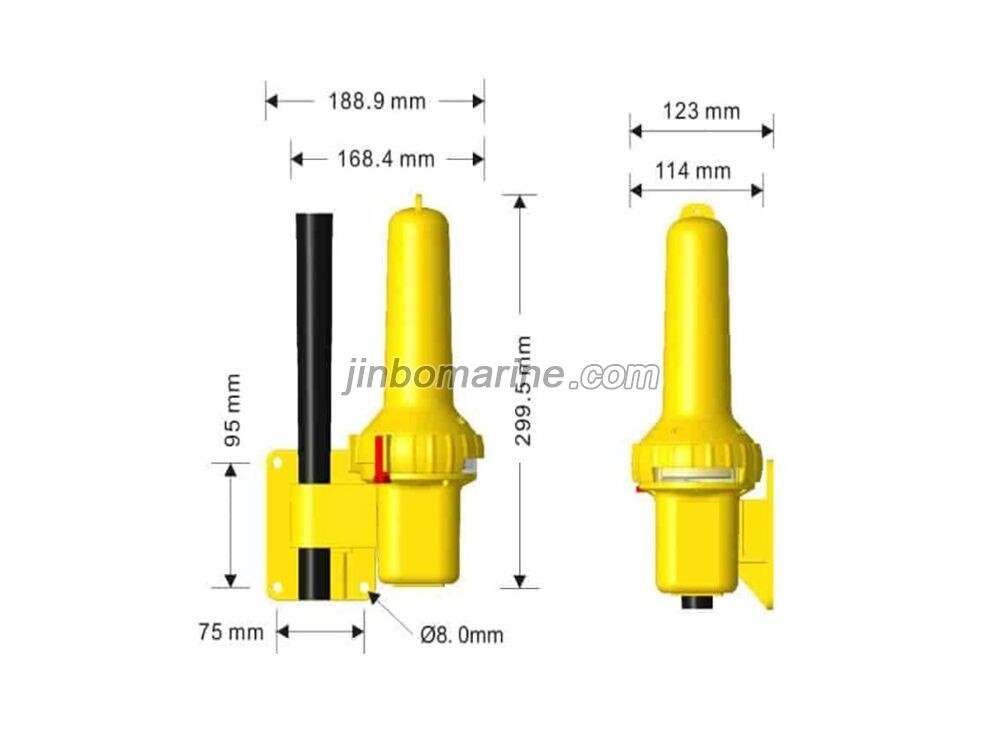

JB-5000 AIS SART
1. Frequency range : CH87B(161.975 MHz)/CH88B(162.025 MHz); 2. Frequency error: ≤±0.5KHz; 3. Radiated Power : ≥1W; 4. Modulation spectrum :the frequency deviation from the carrier center ...
Loading product images...
PDF Datasheet
China JB-5000 AIS SART:
1. Frequency range : CH87B(161.975 MHz)/CH88B(162.025 MHz);
2. Frequency error: ≤±0.5KHz;
3. Radiated Power : ≥1W;
4. Modulation spectrum :the frequency deviation from the carrier center frequency ±10KHz,the modulation sidebands ≤-20dBc;
deviation from the carrier center frequency of +25KHz～+62.5KHz and -25KHz～-62.5KHz,the device modulation sidebands≤-40dBc;
5. Modulation: GMSK
6. Operation temperature: -20℃~+55℃
7. Compass safe distance: 60 cm
8. Battery: lithium cell
9. Operation life: 96 H
10. Storage time: 3 Years
11. Reference: IEC61097-14(2010); IEC-60945(2002)
