JIS F2031 Cast Steel Roller Pawl Type Chain Stopper

JIS F2031 Cast Steel Roller Pawl Type Chain Stopper is a device between anchor windlass and hawsepipe, it can fix the anchor chain prevent it roll out. .When the vessel mooring ,chain stoppe...

Chain Stopper1 Photos ISO9001 Supplier
JIS F2031 Cast Steel Roller Pawl Type Chain Stopper thumbnail 1

JIS F2031 Cast Steel Roller Pawl Type Chain Stopper

Category: Chain Stopper
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote PDF Datasheet

We can supply according to your requirement.

China JIS F2031 Cast Steel Roller Pawl Type Chain Stopper:


JIS F2031 Cast Steel Roller Pawl Type Chain Stopper is a device between anchor windlass and hawsepipe, it can fix the anchor chain prevent it roll out. .When the vessel mooring ,chain stopper transport the pull strength of anchor and chain to vessel, can reduce the working load protect the anchor windlass. When sailing it stand the anchor weight and inertial force.

Customized service is available, Advanced equipment ,Strong consciousness in controlling quality.

Feature:

1. Excellent quality.

2. Competitive price.
3. Durable, long lifetime.

4. Certificate: CCS BV ABS GL ETC.

Process:casting, forging, welding

Material:Cast iron, cast steel.

Chain Dia.:70mm-132mm
Finish: anti-rust paint

Withstand 80% of Chain Cable's breaking load

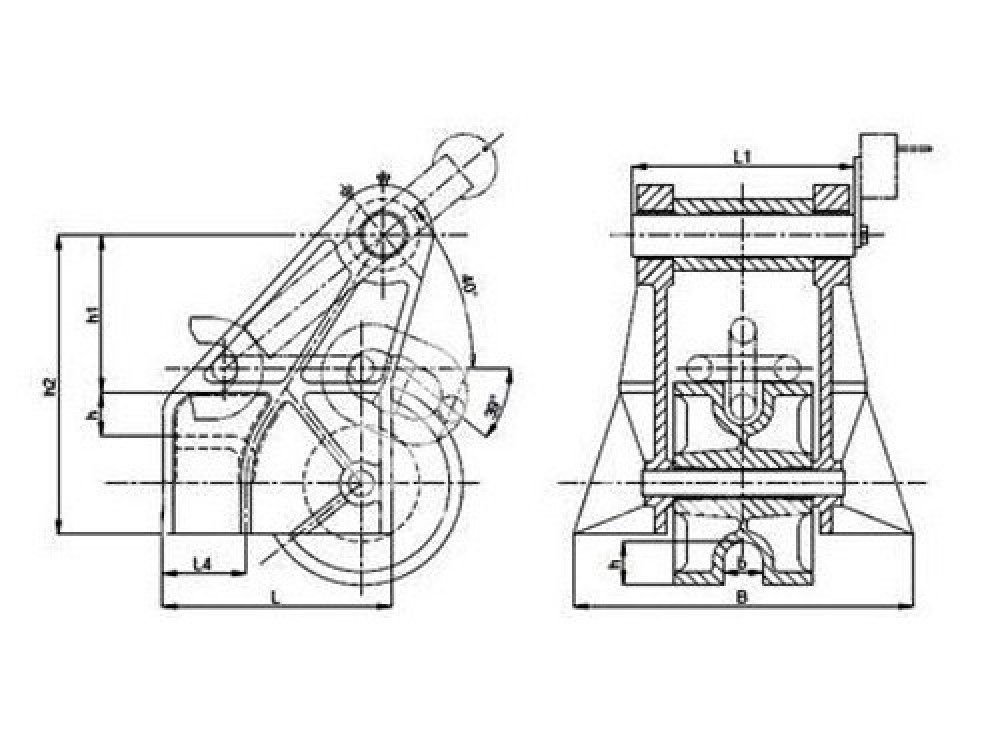

JIS F-2031 Cast Steel Pawl Type Chain Stopper
Dimension(mm)
Nominal Chain Dia.(mm) B b L h h1 h2 Weight
(kg)
36-42 422 66 530 69 124 280 249
42-46 480 75 620 78 142 316 396
48-51 520 82 680 86 155 349 429
52-56 560 89 730 95 170 370 465
58-60 600 95 780 102 182 394 495
62-64 630 101 835 109 191 421 582
66-68 660 107 885 116 200 446 701
70-73 700 115 950 125 212 478 846
76-78 750 123 1015 133 222 511 1014
81-84 800 134 1095 143 235 550 1268
87-90 850 143 1170 153 248 588 1498
92-95 900 151 1235 162 260 620 1769
97-102 950 161 1350 175 276 665 2277
105-107 1000 170 1400 185 289 703 2664
111-114 1050 180 1480 195 302 742 3054
117-122 1120 191 1585 207 318 790 3660
