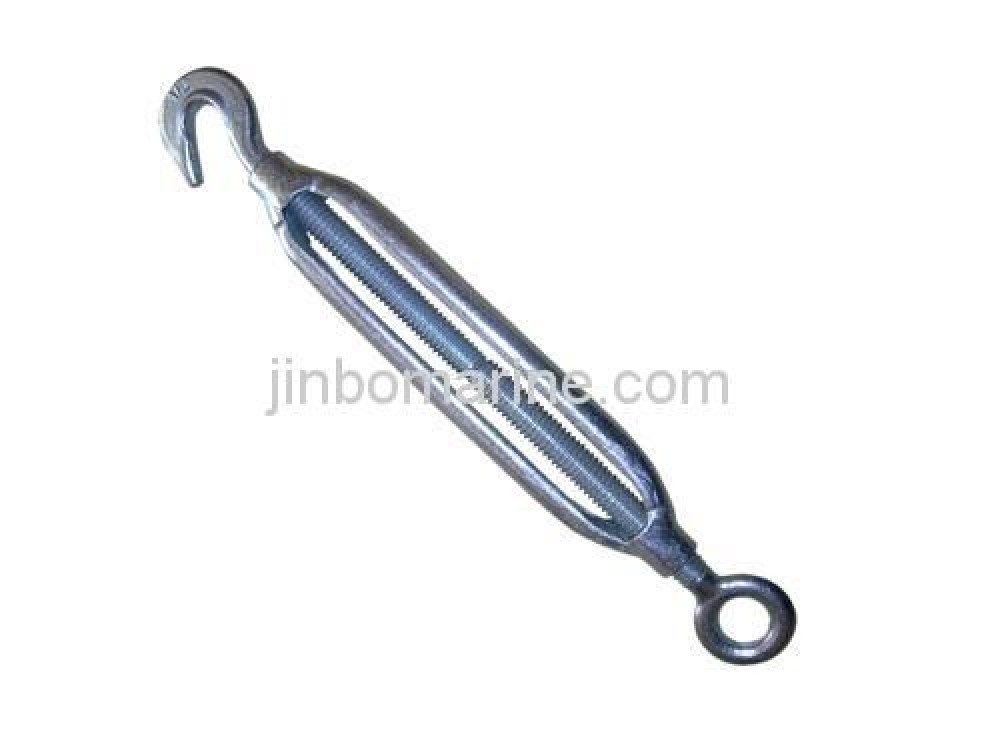

JIS Type Frame Turnbuckles
PDF Datasheet
We can supply according to your requirement.
Main Specification
Turnbuckle usually Forged, Free forged and Casting.
The surface of turnbuckle original color, galvanised,hot galvanized
Material is 45# Steel, Q235

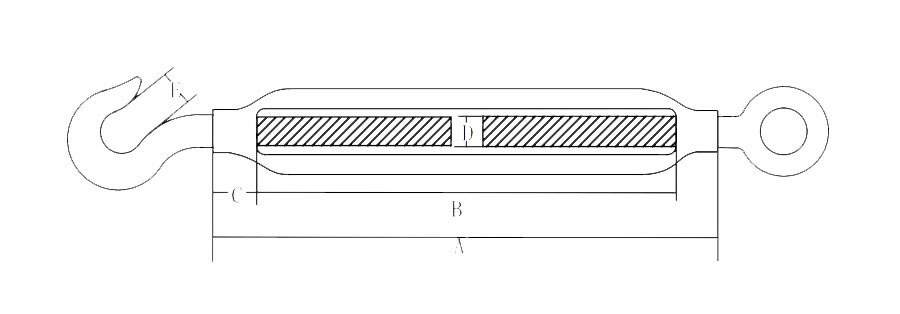

Size Table
| Nominal | 1 Body Only | 2 Eye and Eye | 3 Hook&Eye | |||||||
| Size(D) m/m in | A m/m | B m/m | C m/m | T.L Ton | W/Pce kg | F m/m | T.L Ton | W/Pce kg | T.L Ton | W/Pce kg |
| 6 | 100 | 78 | 11 | 1 | 0.08 | 10 | 0.1 | 0.116 | 0.04 | 0.114 |
| 8 | 125 | 100 | 12.5 | 1.2 | 0.15 | 12 | 0.2 | 0.22 | 0.08 | 0.218 |
| 9 | 150 | 120 | 12.5 | 1.5 | 0.17 | 16 | 0.5 | 0.295 | 0.15 | 0.293 |
| 12 | 200 | 164 | 18 | 2 | 0.29 | 20 | 2 | 0.6 | 0.35 | 0.585 |
| 16 | 250 | 202 | 21.5 | 3 | 0.52 | 22 | 3 | 1.07 | 0.7 | 1.05 |
| 19 | 300 | 250 | 25 | 4 | 0.85 | 28 | 4 | 1.79 | 1 | 1.78 |
| 22 | 325 | 269 | 28 | 5 | 1.17 | 33 | 5 | 2.55 | 1.5 | 2.58 |
| 25 | 350 | 285 | 32.5 | 6 | 1.69 | 35 | 6 | 3.8 | 2 | 3.77 |
| 32 | 400 | 310 | 45 | 8 | 3.51 | 36x70 | 10 | 7.6 | 3 | 7.52 |
| 4 Hook&Hook | 6 With Stubs | |||||
| E m/m | T.L Ton | W/Pce kg | H m/m | I(A/2) m/m | G m/m | W/Pce kg |
| 9 | 0.04 | 0.112 | 80 | 50 | 5.3 | 0.112 |
| 9 | 0.08 | 0.215 | 100 | 63 | 6.9 | 0.22 |
| 11 | 0.15 | 0.29 | 130 | 75 | 8.3 | 0.273 |
| 16 | 0.35 | 0.57 | 150 | 100 | 11.2 | 0.51 |
| 19 | 0.7 | 1.03 | 180 | 125 | 14.2 | 0.95 |
| 20 | 1 | 1.77 | 220 | 150 | 17.2 | 1.62 |
| 21 | 1.5 | 2.6 | 250 | 165 | 20.3 | 2.34 |
| 26 | 2 | 3.73 | 270 | 175 | 23.3 | 3.27 |
| 34 | 3 | 7.44 | 300 | 200 | 29 | 6.52 |
