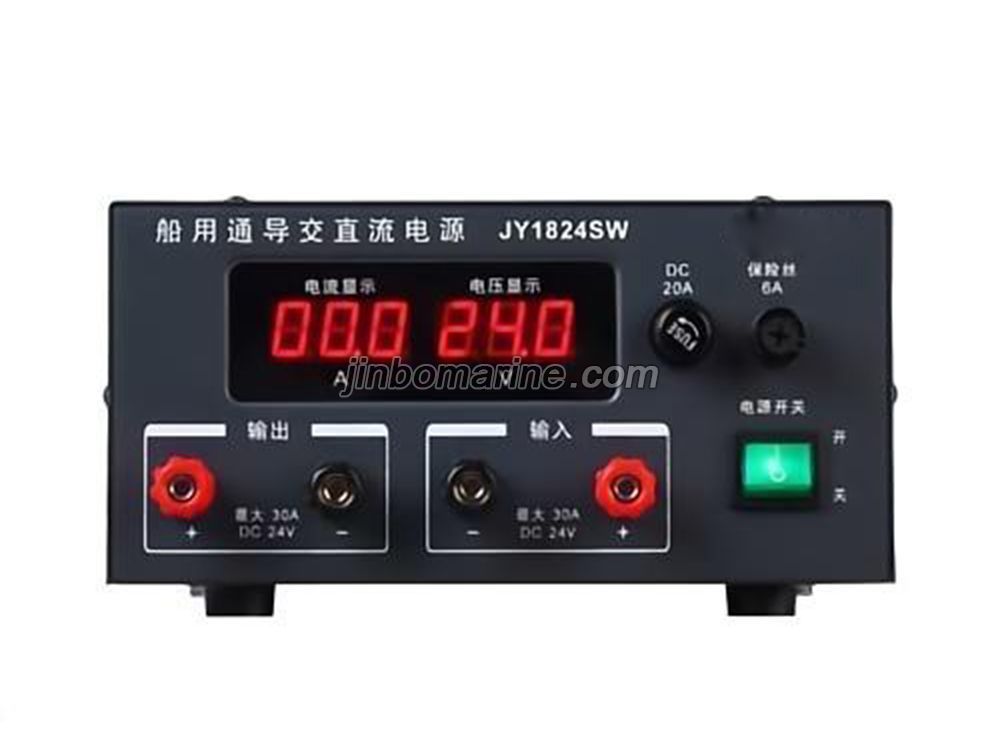

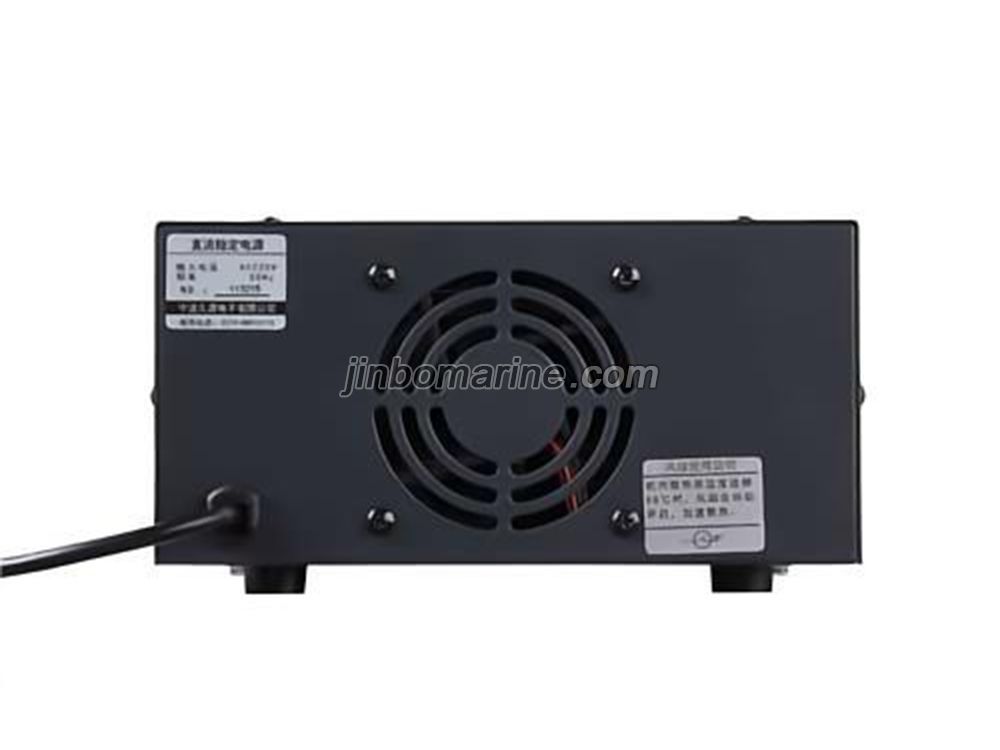

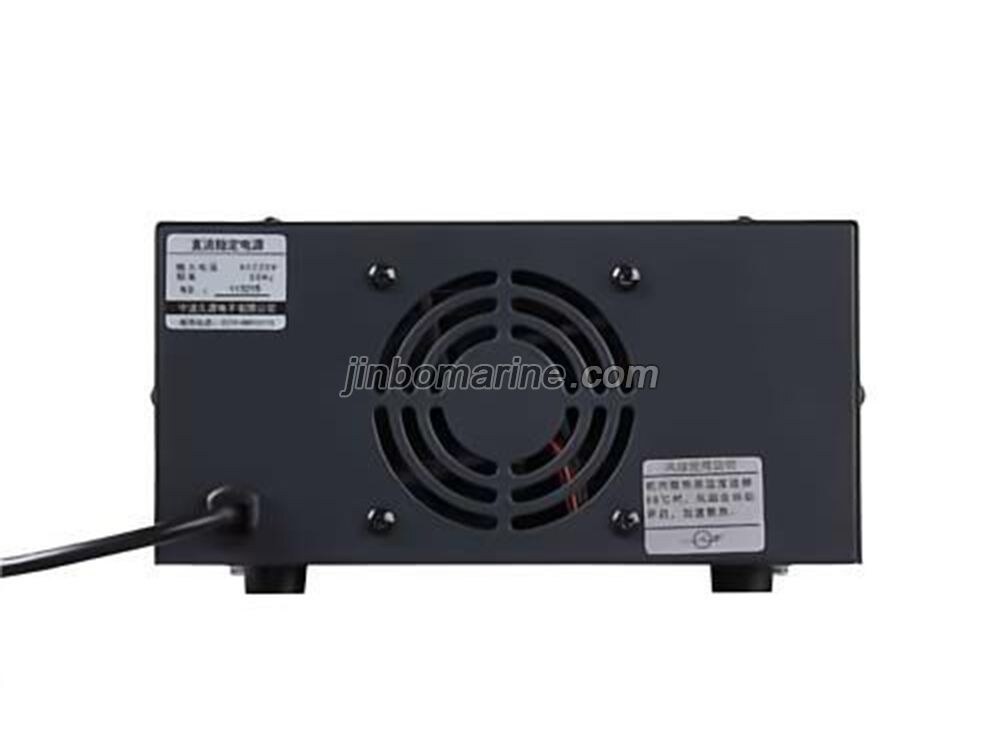

JY1824SW Marine DC regulated power supply
JY1824SW Marine DC regulated power supply: Model Input voltage Output voltage continuous ...
JY1824SW Marine DC regulated power supply
PDF Datasheet
We can supply according to your requirement.
JY1824SW Marine DC regulated power supply:
Model Input voltage Output voltage continuous Instantaneous maximum current JY1824SW AC220V
DC24V DC24V 20A 30A JY1830SW DC13.8V 15A
| Model | Input voltage | Output voltage | continuous | Instantaneous maximum current |
| JY1824SW | AC220V DC24V | DC24V | 20A | 30A |

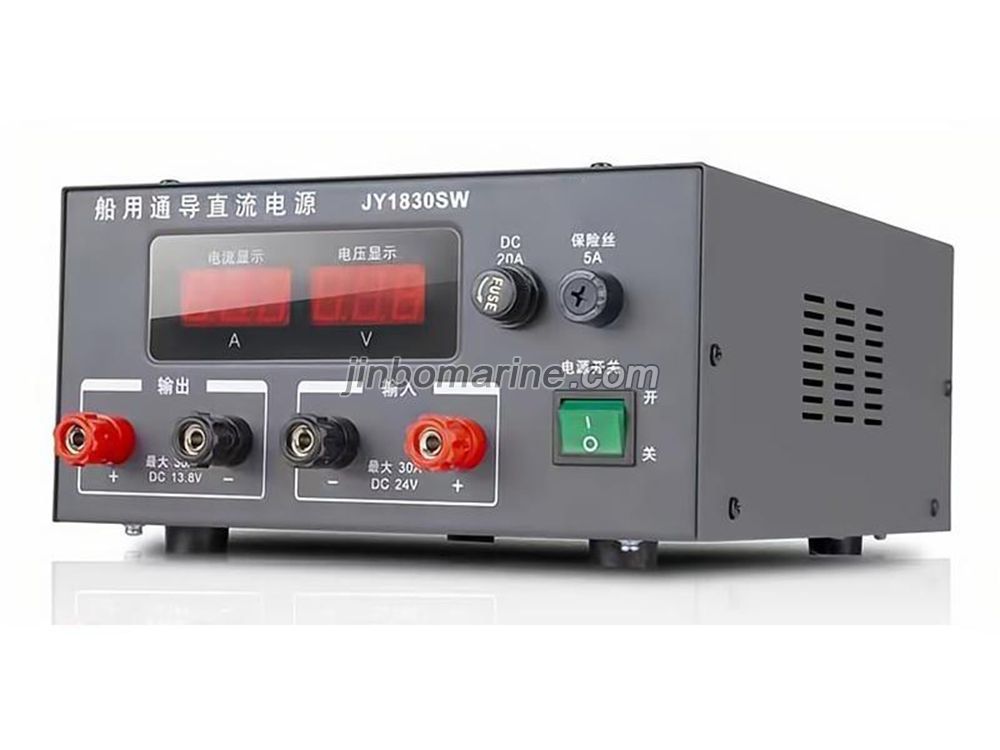

| JY1830SW | DC13.8V | 15A |
1. Place the power supply in a dry and horizontal place, and secure the bracket.
2. Plug the power plug into an AC 220V socket, and connect the DC 24V power supply to the input end. Be careful not to reverse the connection. When there is no AC input, the power supply can automatically switch to DC input (marine DC voltage≤36V).
3. Connect the output terminal to the navigation device, and be careful not to reverse the connection.
4. Precautions:
When using any power supply, it is necessary to configure the required voltage output by professional personnel based on the instrument you are using, and the power supply within the output power range. Improper configuration may cause damage to the instrument or burn out the power supply!
