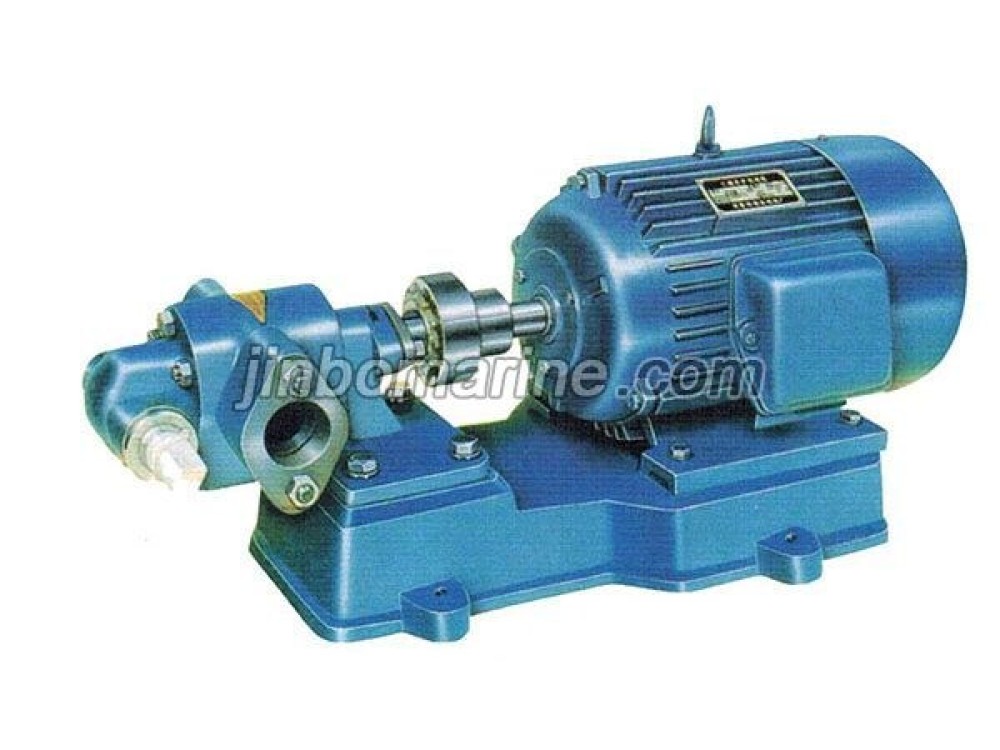

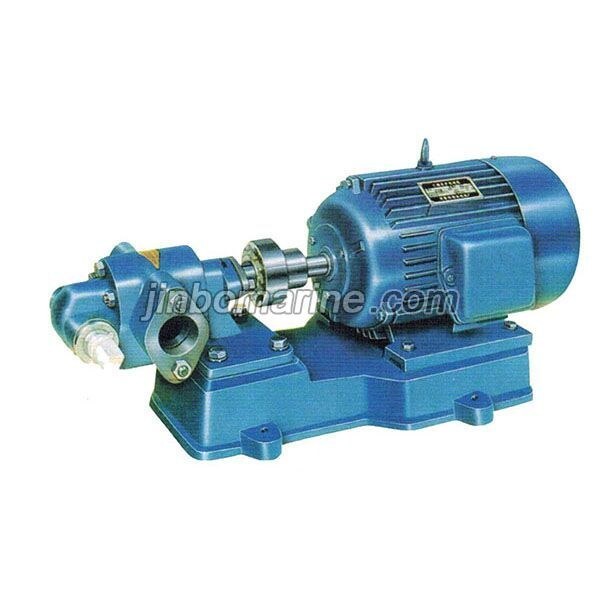

KCB-200 Marine Gear Pump

  KCB series of gear pumps is used to deliver non-corrosive lubricating oil at temperature below 80℃ or equivalent liquid without solid particles and fibres and with the viscosity of 5-...

Hand Pump1 Photos ISO9001 Supplier

Loading product images...

KCB-200 Marine Gear Pump

Category: Hand Pump

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

China KCB-200 Marine Gear Pump:

KCB series of gear pumps is used to deliver non-corrosive lubricating oil at temperature below 80℃ or equivalent liquid without solid particles and fibres and with the viscosity of 5-1500CST.

Main Technical Data
Model	Pump flow rate (L/min)	Rev speed（r/min）	Discharge pressuer (Mpa)	Motor power (KW)
KCB-18.3	18.3	1400	1.45	1.5
2CY-1.1/1.45	18.3	1400	1.45	1.5
KCB-33.3	33.3	1420	1.45	2.2
2CY-2/1.45	33.3	1420	1.45	2.2
KCB-55	55	1400	0.33	1.5
2CY-3.3/0.33	55	1400	0.33	1.5
2CY-3.3/0.8	55	1420	0.8	3
KCB-83.3	83.3	1400	0.33	2.2
2CY-5/0.33	83.3	1400	0.33	2.2
2CY-5/0.8	83.3	1420	0.8	4
KCB-200	200	1420	0.33	4
2CY-12/0.33	200	1440	0.33	4
