KR-1538 36NM 15 Inch Color LCD Marine Radar
With AIS Display And Target Tracking FEATURE: 1.Customizable Data Field, more flexible data display. 2.System Software can be upgraded via USB. 3.AIS display function...

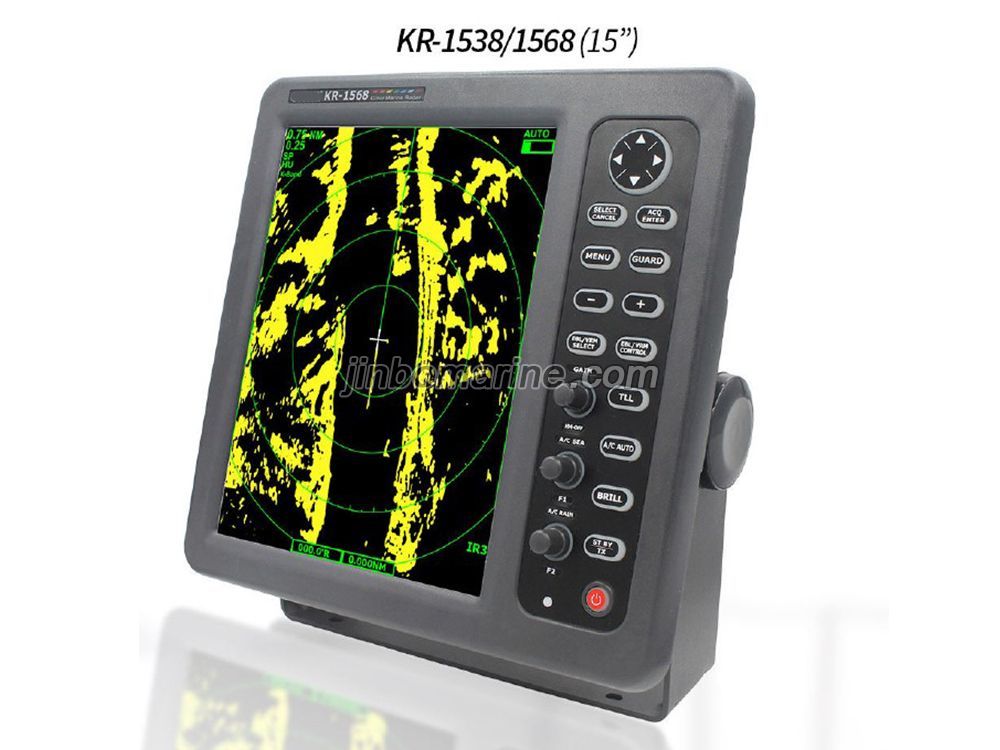

KR-1538 36NM 15 Inch Color LCD Marine Radar
PDF Datasheet
We can supply according to your requirement.
China KR-1538 36NM 15 Inch Color LCD Marine Radar:
With AIS Display And Target Tracking
FEATURE:
1.Customizable Data Field, more flexible data display.
2.System Software can be upgraded via USB.
3.AIS display function.
4.Multiple-Color selection for target and background.
5.Rugged die-cast, waterproof housing.
6.Target Tracking” (TT) function, can track and trace up to 20 targets.
7.User-programmable function keys.
8.Automatic optimization of radar picture.
9.Newly enhanced performance.
10.Head-up, Course-up and North-up representation mode.
11.Economy Mode, Guard Zone Alarm and Watch Mode.
| ANTENNA RADIATOR | |
| Type | KR-1538: 55cm hybrid array |
| Length and Rotate speed | KR-1538: Radome 60cm (KRA-1004) 24RPM |
| Wind load | Relative wind 100 knots |
| Beam width | KRA-1004: Hor: 4″ Vert: 25″ |
| RF TRANSCEIVER | |
| Frequency | 9410 +/-30MHz (X-band) |
| Pulse length PRR | 0.08 µ s/2100 Hz(0.125, 0.25, 0.5, 0.75, 1, 1.5* nm) |
| 0.3µ s/1200 Hz(1.5*, 2, 3 nm) | |
| 0.8 µ s/600 Hz(3*, 4, 6, 8, 12, 24, 36, 48**, 64**nm) | |
| Pulse length & PRR for 1.5 and 3nm ranges can be select in menu** KR-1568 | |
| Peak Output Power | 4KW nominal |
| Mixer and Local Oscillator | Microwave Inter grated Circuit |
| IF | 60MHz Bandwidth: 25MHz (0.08/0.3 µ s), 3MHz (0.8 µ s) |
| Noise Figure | 10dB nominal |
| ENVIRONMENT | Temperature: |
| Display unit: -15 to +55 C (Display Unit) | |
| Antenna unit: -25 to +70 C (Antenna Unit) | |
| POWER SUPPLY | 13.8 VDC, 24 VDC, 36 VDC; 60W (30W in economy mode) |
| DISPLAY UNIT | |
| Type | 15″ LED backlight, 32-bit TFT Color LCD Display |
| 1024(V) x 768(H) dots | |
| Display Modes | Head-up, Course-up*, North-up*, True Motion** |
| * Heading input required | |
| ** Heading and speed inputs required | |
| Range Scale (nm) | Range: 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36, 48**, 64**, 72** |
| Ring:0.0625,0.125,0.125,0.25,0.25,0.5,0.5,1,1,2,2,3,4,6,12 | |
