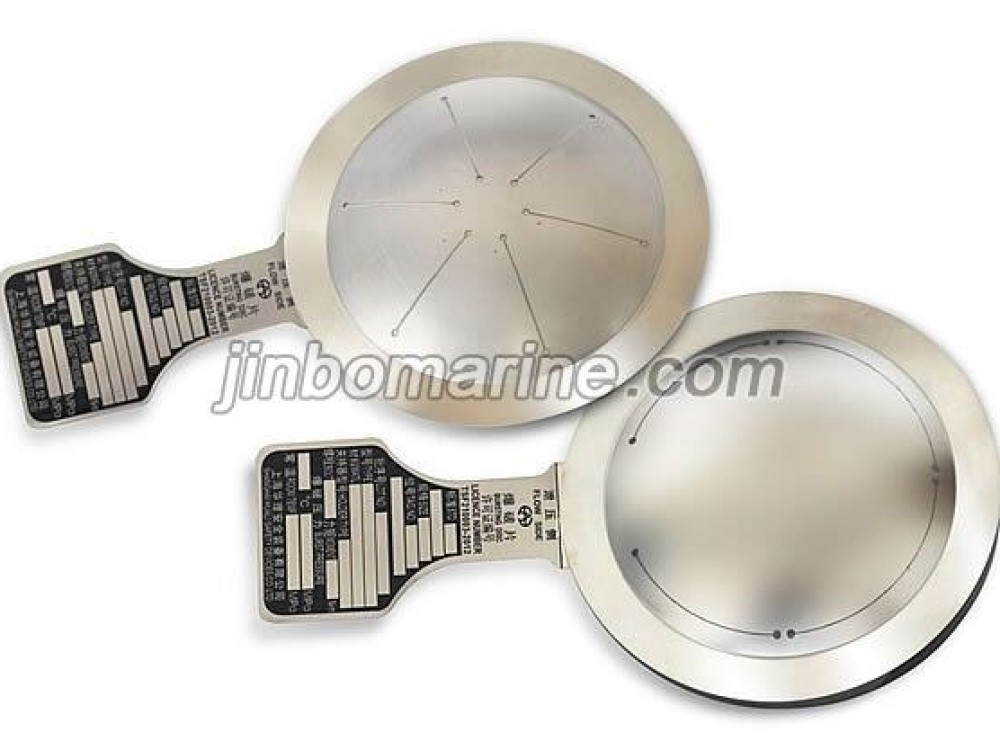

LC Bursting Disc is the conventional domed slotted bursting disc.
Structure features:

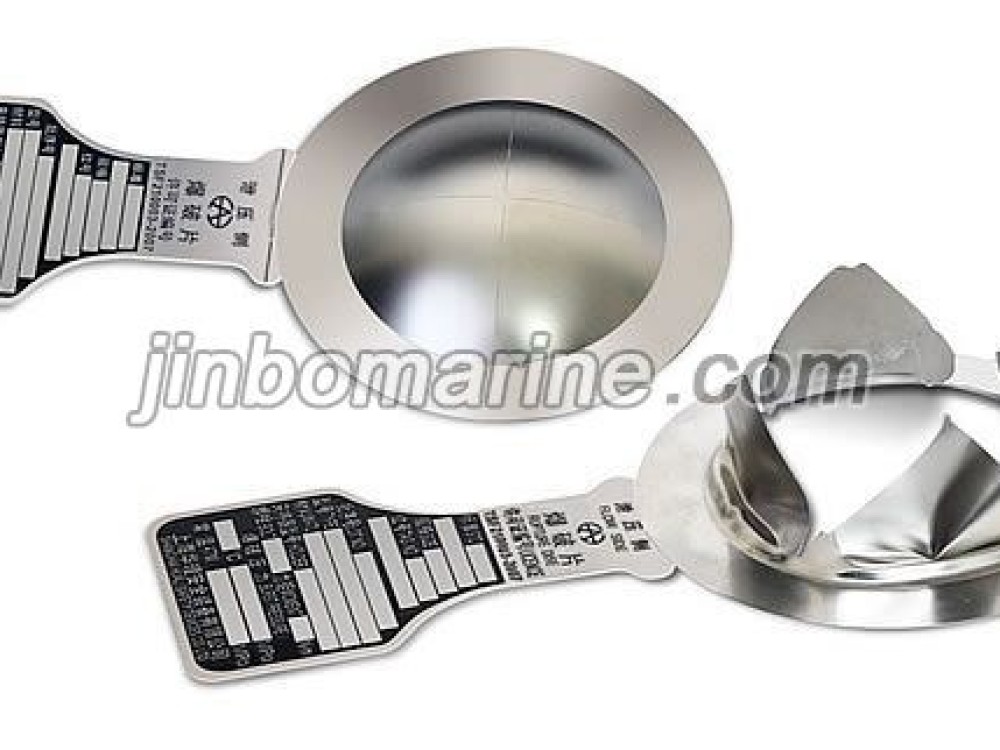

The bursting disc is of single layer diaphragm. The cross recess or annular recess is made in the concave or convex to weaken the strength. When the bursting pressure is reached ,the bursting disc opens along the score
Technical features:
1. Applied to gas, liquid medium;
2.Applied to occasions with higher bursting pressure;
3.Maximum operating pressure reaches 85% of the bursting pressure;
4.No fragments are generated in bursting, and the serial usage with the safety relief valve is available.
Bursting Pressure Range of Conventional Domed Bursting Disc:
| Bursting Pressure in normal temperature (min~max Mpa) | |||
| Relief Diameter(mm) | Conventional Domed Simple(LP) | Conventional Domed Seamed(LF) | Conventional Domed Slotted(LC) |
| 5 | 1-100 | / | / |
| 10 | 0.8-100 | 0.2-10.0 | 8-80 |
| 15 | 0.65-90 | 0.15-10 | 6-70 |
| 20 | 0.65-85 | 0.14-9 | 4-60 |
| 25 | 0.55-83 | 0.06-9 | 2-50 |
| 32 | 0.55-80 | 0.05-8 | 1.5-42 |
| 40 | 0.45-70 | 0.03-8 | 1.3-38 |
| 50 | 0.4-60 | 0.03-7 | 1.0-28 |
| 65 | 0.4-50 | 0.02-6 | 0.5-25 |
| 80 | 0.35-35 | 0.02-6 | 0.4-22 |
| 100 | 0.3-25 | 0.015-5 | 0.3-15 |
| 125 | 0.28-20 | 0.015-5 | 0.3-12 |
| 150 | 0.25-15 | 0.01-3 | 0.3-10 |
| 200 | 0.25-12 | 0.01-2.5 | 0.2-8.5 |
| 250 | 0.2-8 | 0.008-2 | 0.2-6 |
| 300 | 0.2-6 | 0.008-1.5 | 0.2-5.5 |
| 350 | 0.15-5 | 0.008-1.0 | 0.2-2 |
| 400 | 0.15-3.5 | 0.005-0.8 | 0.2-1.5 |
| 450 | 0.15-2.5 | 0.003-1.0 | / |
| 500 | / | 0.003-1.0 | / |
| 600 | / | 0.003-0.6 | / |
| 1000 | / | 0.003-0.3 | / |
