LRA Shipbuilding Steel Plate
Jinbo Marine Supply all sizes of normal strength and higher strength shipbuilding steels as standard, which certified by CCS, BV, LR, ABS, DNV, GL, KR and NK. Suitable for use in the constru...
Loading product images...

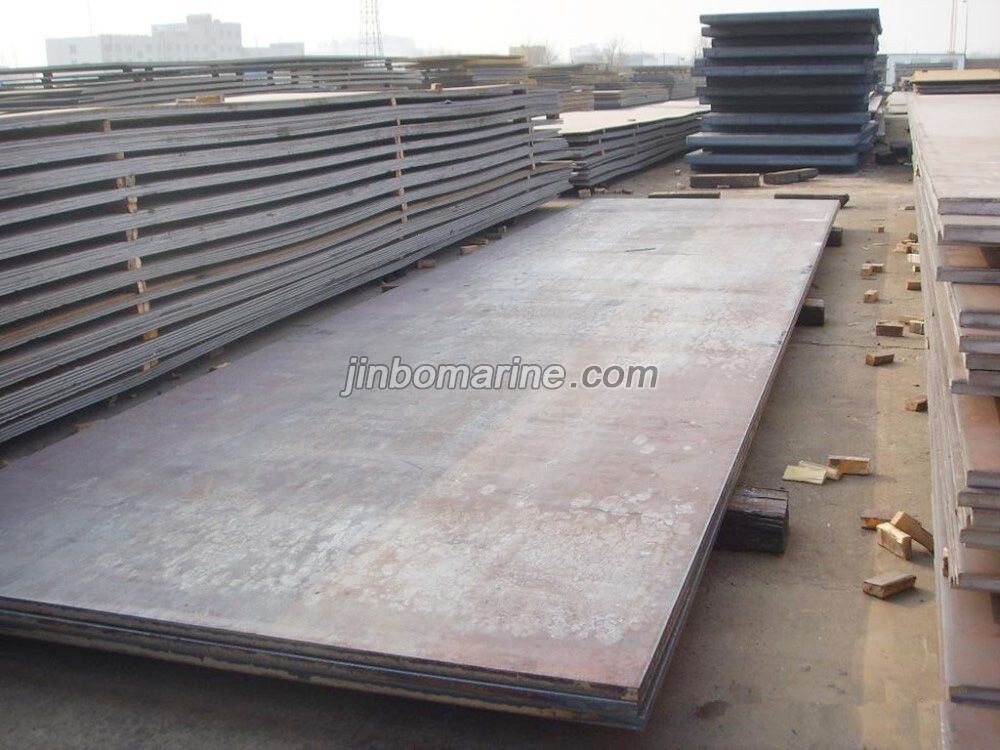

LRA Shipbuilding Steel Plate
PDF Datasheet
We can supply according to your requirement.
China LRA Shipbuilding Steel Plate:
Jinbo Marine Supply all sizes of normal strength and higher strength shipbuilding steels as standard, which certified by CCS, BV, LR, ABS, DNV, GL, KR and NK. Suitable for use in the construction of container ships and large cargo freighters and commercial shipping lines such as luxury cruise ships and ferries.
Steel Plate Size
Thickness: 3~38mm
Width: 1219~3200mm
Length: 2500~12000mm
Steel Grade
| Classification Society | Application | Steel Grade |
| CCS | Normal Strength | CCS-A,CCS-B,CCS-D,CCS-E |
| High Strength | CCS-A32,CCS-A36 | |
| DNV | Normal Strength | DVA,DVB,DVD,DVE |
| High Strength | DV A32, DV A36 | |
| GL | Normal Strength | GL-A,GL-B,GL-D,GL-E |
| High Strength | GL-A32, GL-A36 | |
| ABS | Normal Strength | AB/A,AB/B,AB/D,AB/E |
| High Strength | AB/AH32,AH36,DH32, DH36 | |
| LR | Normal Strength | A,B,D,E |
| BV | High Strength | AH32,AH36,,DH32, DH36 |
| Grade | Thickness (mm) | Yield point (Mpa) | Tensile Strength (Mpa) | Elongation (%)≤ | Impact test | Cold Bend Test | |||
| Temperature(0C) | Average AKV | b=2a | b=5a | ||||||
| A KV/j | 1800 | 1200 | |||||||
| lengthways | crosswise | ||||||||
| ≥ | |||||||||
| A | ≤50 | 235 | 400~490 | 22 | / | / | / | d=2a | / |
| B | 0 | 27 | 20 | / | d=3a | ||||
| D | -10 | ||||||||
| E | -40 | ||||||||
| AH32 | ≤50 | 315 | 440~590 | 22 | 0 | 31 | 22 | / | d=3a |
| DH32 | -20 | ||||||||
| EH32 | -40 | ||||||||
| AH36 | ≤50 | 355 | 490~620 | 21 | 0 | 34 | 24 | / | d=3a |
| DH36 | -20 | ||||||||
| EH36 | -40 | ||||||||
